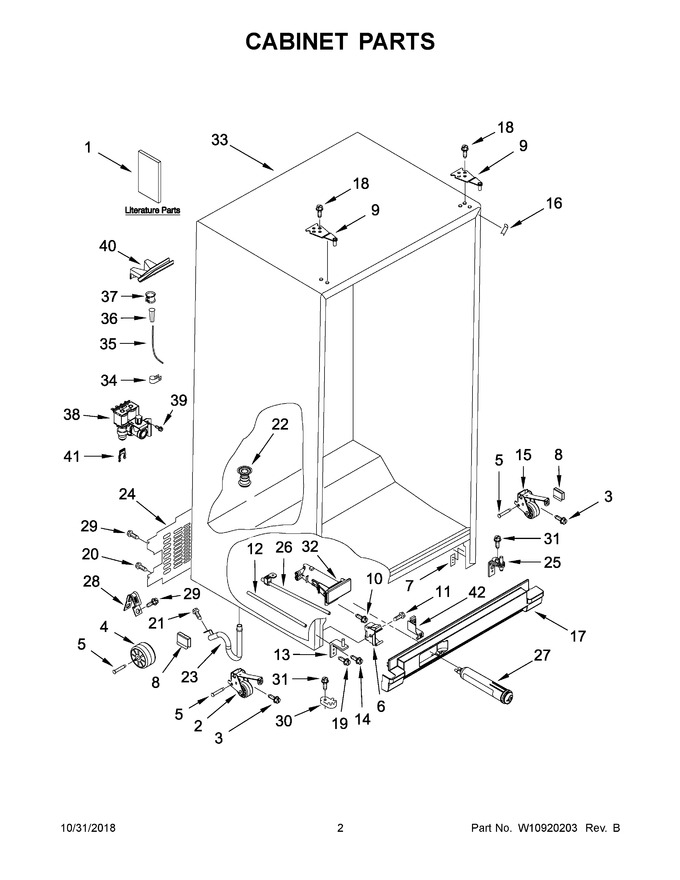

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10407342		Use And Care Guide		Appelez-nous	-
2	WPW10304660		Roller Assembly (left Hand)   (Replaces: W10304660)			Immediately	$ 73.90
3	W11544561		Screw   (Replaces: 2152958)				$ 14.75
4	WPW10475495		Roller   (Replaces: 2150304)			Immediately	$ 32.06
5	W11594405		Axle, Roller   (Replaces: 981126)			Immediately	$ 19.12
6	WP2155013		Clip, Grille   (Replaces: 2155013)			Immediately	$ 8.11
7	WP2304249		Plate, Screw   (Replaces: 2304249)				$ 14.94
8	W11594405		Clip, Roller   (Replaces: W11087168)			Immediately	$ 19.12
9	W11579508		Top Hinge (white)   (Replaces: W10704885)				$ 38.78
10	WP489500		Screw   (Replaces: 489500)				$ 8.17
11	WPW10141604		Screw   (Replaces: W10141604)				$ 8.85
12	WPW10350006		Tube, Filter Outlet   (Replaces: W10350006)				$ 121.32
13	W10646418		Assembly, Bottom Hinge (freezer)   (Replaces: W10414753)			Immediately	$ 40.67
14	WP489497		Screw   (Replaces: 3400113)			Immediately	$ 29.09
15	WPW10304659		Roller Assembly (right Hand)   (Replaces: W10304659)			Immediately	$ 68.52
16	W11219639		Filler, Wrapper (white)   (Replaces: W11189128)				$ 11.88
17	W10393044		Grille (white)				$ 59.21
18	WPW10308750		Screw (white)   (Replaces: W10308750)				$ 73.29
19	W10856122		Screw   (Replaces: 3400103)				$ 8.27
20	WP488488		Screw   (Replaces: 489290)				$ 8.52
21	WP489464		Screw   (Replaces: 489464)			Immediately	$ 8.38
22	W11566763		Fitting, Drain   (Replaces: 2304888)			Immediately	$ 53.45
23	W11512417		Extension, Drain Fitting   (Replaces: W10153550)				$ 36.53
24	WP2188756		Cover, Unit   (Replaces: 2188734)				$ 148.75
25	W11049959		Assembly, Bottom Hinge (refrigerator)   (Replaces: W10846222)				$ 79.86
26	WPW10350007		Tube, Filter Inlet   (Replaces: W10350007)				$ 131.73
27	EDR1RXD1B		Filter, Water   (Replaces: W10735398)			Immediately	$ 49.99
28	549193		Clamp, Power Cord				$ 14.06
29	WPW10141645		Screw   (Replaces: W10141645)				$ 8.05
30	W11778262		Closer, Door (freezer)   (Replaces: W10846218)				$ 11.63
31	WP489483		Screw   (Replaces: W10142234)				$ 11.41
32	W10862456		Housing, Water Filter (white)   (Replaces: W10778316)				$ 226.70
33	N/P		Cabinet (not A Servicable Part)		Appelez-nous	-
34	W11456069		Clamp, Tube   (Replaces: M0108107)			Immediately	$ 22.40
35	W10823511		Tube, Water   (Replaces: W10357069)			Immediately	$ 32.41
36	4387491		Insert, Tube   (Replaces: 2181939)				$ 8.23
37	W10861184		Clamp, Tube   (Replaces: W10329003)				$ 65.90
38	WPW10179146		Assembly, Filter Valve   (Replaces: W10179146)			Immediately	$ 99.47
39	WPW10141625		Screw   (Replaces: 488649)				$ 22.22
40	W11505385		Chute, Water   (Replaces: 2209774)				$ 35.32
41	W11678575		Locking Ring (5/16)   (Replaces: W11175631)				$ 14.90
42	W10355758		Assembly, Bracket		Appelez-nous	-
16A	W11219641		Filler, Wrapper (black)   (Replaces: W11189127)				$ 11.88
16B	W11219642		Filler, Wrapper (grey)   (Replaces: W11189126)			Immediately	$ 12.85
17A	W10393045		Grille (black)				$ 56.71
17B	W10393046		Grille (grey)				$ 52.84
18A	WPW10308751		Screw (black)   (Replaces: W10308751)				$ 8.84
1A	W10830263		Tech Sheet		Appelez-nous	-
1B	W11098952		Energy Guide		Appelez-nous	-
32A	W10862460		Housing, Water Filter (black)   (Replaces: W10778315)			Immediately	$ 226.70
32B	W10862461		Housing, Water Filter (grey)   (Replaces: W10778312)			Immediately	$ 220.05
41A	W11676611		Locking Ring (1/4)   (Replaces: W11175632)				$ 14.89
9A	W11579508		Top Hinge (black)   (Replaces: W10704884)				$ 38.78
9B	W11164088		Top Hinge (grey)   (Replaces: W10704881)				$ 69.66
