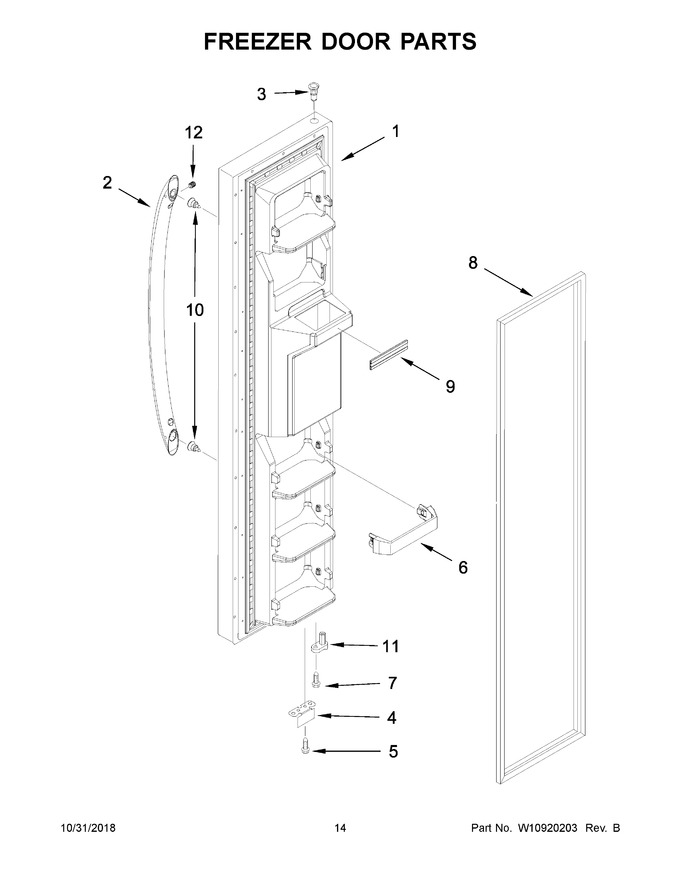

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10637826		Door, Freezer (includes Gasket And Dispenser Parts) (white)		Appelez-nous	-
2	W10848410		Handle (white)   (Replaces: W10713677)				$ 203.72
3	WP2182181		Thimble   (Replaces: 2182181)				$ 8.15
4	2306940		Bracket, Door Stop (silver)				$ 101.93
5	WP489483		Screw   (Replaces: 489420)				$ 11.41
6	WP2309717		Trim, Door   (Replaces: 2309717)				$ 58.64
7	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
8	2159072		Gasket, Door (beige)   (Replaces: 2309604)				$ 323.60
9	WPW10307490		Trim, Door Shelf   (Replaces: W10307492)			Immediately	$ 24.27
10	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 12.88
11	W10846219		Thimble, Cam				$ 83.42
12	W11366418		Set Screw (silver)   (Replaces: W10010140)			Immediately	$ 15.79
1A	W10763103		Door, Freezer (includes Gasket And Dispenser Parts) (black)		Appelez-nous	-
1B	W10651091		Door, Freezer (includes Gasket And Dispenser Parts) (monochromatic Stainless)		Appelez-nous	-
2A	W10805245		Handle (black)   (Replaces: W10713678)				$ 227.50
2B	W10899551		Handle (stainless)   (Replaces: W10713676)			Immediately	$ 188.82
8A	2159080		Gasket, Door (black)   (Replaces: 2309654)				$ 325.91
8B	W10136733		Gasket, Door (grey)   (Replaces: 2327162)				$ 358.98
