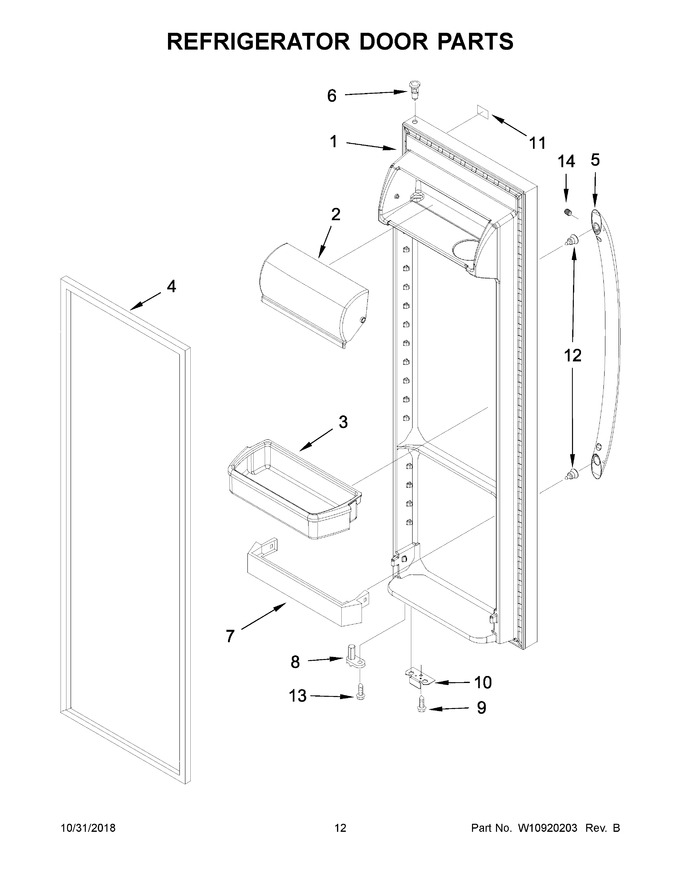

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10428790		Door, Refrigerator (includes Door Gasket) (white)		Appelez-nous	-
2	WP2256101		Door, Compartment   (Replaces: 2256101)			Immediately	$ 89.42
3	WPW10321304		Bin, Door   (Replaces: W10321304)			Immediately	$ 44.73
4	2159073		Gasket, Door (beige)   (Replaces: 2309600)				$ 333.19
5	W10848410		Handle (white)   (Replaces: W10713677)				$ 203.72
6	WP2182181		Thimble   (Replaces: 2182181)				$ 8.15
7	WP2309941		Trivet   (Replaces: 2309941)			Immediately	$ 76.32
8	W11253684		Thimble, Cam   (Replaces: W10846216)				$ 13.69
9	WP489483		Screw   (Replaces: 489420)				$ 11.41
10	W10219801		Bracket, Door Stop (silver)				$ 5.27
11	WPW10511975		Nameplate (white)   (Replaces: W10511975)				$ 80.84
12	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 12.88
13	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
14	W11366418		Set Screw (silver)   (Replaces: W10010140)			Immediately	$ 15.79
11A	WPW10511972		Nameplate (grey)   (Replaces: W10511972)				$ 79.55
1A	W10750030		Door, Refrigerator (includes Door Gasket) (black)		Appelez-nous	-
1B	W10424384		Door, Refrigerator (includes Door Gasket) (stainless)		Appelez-nous	-
4A	2159081		Gasket, Door (black)   (Replaces: 2309653)				$ 335.58
4B	W10136732		Gasket, Door (grey)   (Replaces: 2327161)			Immediately	$ 361.20
5A	W10805245		Handle (black)   (Replaces: W10713678)				$ 227.50
5B	W10899551		Handle (stainless)   (Replaces: W10713676)			Immediately	$ 188.82

    View Diagram in Separate Window       Print Part List
