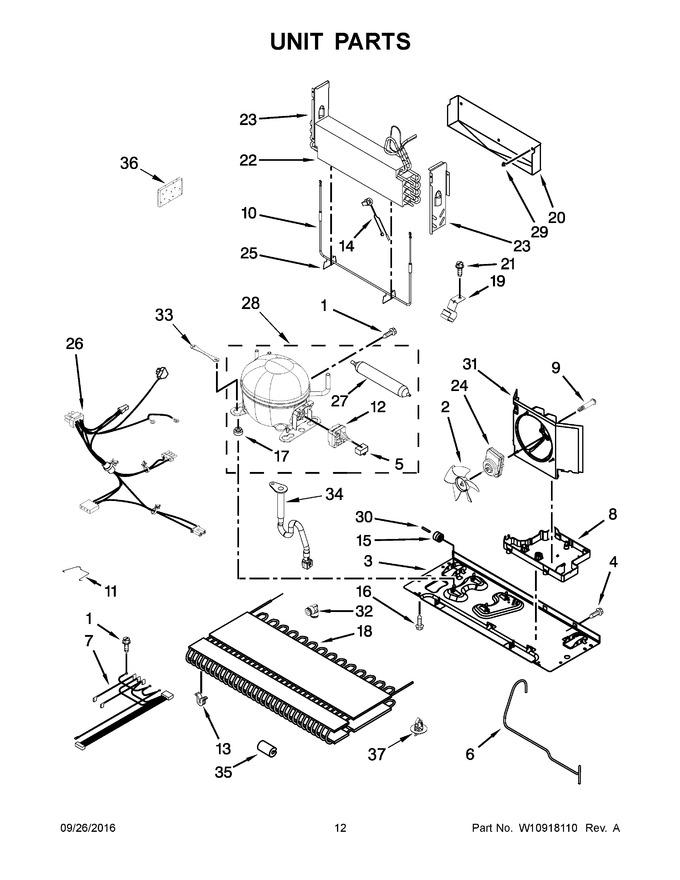

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12992301 | Screw |
|
$ 7.32 | |||||
| 2 | WP12825803 | Blade, Fan (Replaces: 12825803) |
|
Immediately | $ 75.12 | ||||
| 3 | W10480110 | Basepan |
|
$ 160.74 | |||||
| 4 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 6.95 | ||||
| 5 | WPW10350564 | Capacitor (Replaces: W10350564) |
|
Immediately | $ 99.49 | ||||
| 6 | W10805418 | Tube, Discharge |
|
- | |||||
| 7 | W10850438 | Harness, Evaporator And Heater Wire (includes Thermostat) (Replaces: W10257095) |
|
Immediately | $ 306.39 | ||||
| 8 | WPW10655367 | Pan, Drain (Replaces: W10655367) |
|
Immediately | $ 85.17 | ||||
| 9 | W10829281 | Screw (Replaces: W10622701) |
|
$ 12.65 | |||||
| 10 | WP12729128 | Heater, Defrost (Replaces: 12729128) |
|
Immediately | $ 97.71 | ||||
| 11 | W11092534 | Strap, Bale (Replaces: W10216075) |
|
$ 11.32 | |||||
| 12 | W11092533 | Device, Start (Replaces: W10798748) |
|
Immediately | $ 100.03 | ||||
| 13 | WPW10137529 | Grommet, Condenser (Replaces: W10137529) |
|
$ 8.34 | |||||
| 14 | WP67006387 | Thermostat (Replaces: 12639311SP) |
|
Immediately | $ 117.68 | ||||
| 15 | 12477102 | Roller |
|
Immediately | $ 7.38 | ||||
| 16 | 12992101 | Screw |
|
- | |||||
| 17 | W11678963 | Grommet, Compressor (Replaces: W10806346) |
|
$ 8.10 | |||||
| 18 | WPW10346420 | Condenser (Replaces: W10346420) |
|
$ 280.34 | |||||
| 19 | W10281329 | Clip, Drier |
|
$ 13.08 | |||||
| 20 | WPW10292802 | Tray, Drip (Replaces: W10292802) |
|
$ 176.74 | |||||
| 21 | WP33001882 | Screw (Replaces: 12990701) |
|
$ 79.72 | |||||
| 22 | W10314606 | Evaporator |
|
$ 340.75 | |||||
| 23 | 12963002SP | Dam (left Hand) |
|
- | |||||
| 24 | W11613295 | Motor, Condenser Fan (Replaces: W10609117) |
|
Immediately | $ 136.84 | ||||
| 25 | W11673433 | Clip, Heater (Replaces: 10428101) |
|
$ 141.12 | |||||
| 26 | W11666013 | Harness, Unit (includes Power Cord) (Replaces: W10679214) |
|
Immediately | $ 102.12 | ||||
| 27 | WPW10143759 | Drier (Replaces: W10177049) |
|
Immediately | $ 30.78 | ||||
| 28 | W10233960 | Compressor (Replaces: W10775170) |
|
Immediately | $ 513.66 | ||||
| 29 | 10623002 | Clip, Evaporator |
|
$ 11.53 | |||||
| 30 | 67006434 | Axle, Roller (Replaces: 12477202) |
|
Immediately | $ 7.52 | ||||
| 31 | W11556315 | Shroud, Condenser Fan (Replaces: W10189184) |
|
$ 79.66 | |||||
| 32 | WPW10334458 | Connector, Water Tube (Replaces: W10334458) |
|
$ 21.59 | |||||
| 33 | W10236396 | Strap, Compressor |
|
Immediately | $ 19.82 | ||||
| 34 | W10619951 | Extension, Drain Tube (Replaces: W10622099) |
|
Immediately | $ 42.39 | ||||
| 35 | W10852725 | Grommet, Condenser (Replaces: 2319835) |
|
$ 7.70 | |||||
| 36 | W11553819 | Sealer, Insulation (Replaces: 2169104) |
|
Immediately | $ 14.07 | ||||
| 37 | W10815863 | Clip, Condenser |
|
Immediately | $ 38.72 | ||||
| 23A | 12963102SP | Dam (right Hand) |
|
- | |||||
| NI | WP978025 | Valve, Access (Replaces: 978025) |
|
Immediately | $ 105.25 | ||||
| NI | 978026 | Valve, Access |
|
Immediately | $ 128.09 | ||||
| NI | SF5538 | Valve, Access (Replaces: 978027) |
|
$ 21.64 | |||||
| NI | 978028 | Valve, Access |
|
- | |||||
| NI | 978029 | Valve, Access |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access |
|
$ 130.71 | |||||
| NI | 876764 | Valve, Access |
|
Immediately | $ 91.35 | ||||
| NI | N/P | Refrigerant Charge 5.50 Oz. (r-134a) |
|
- |
