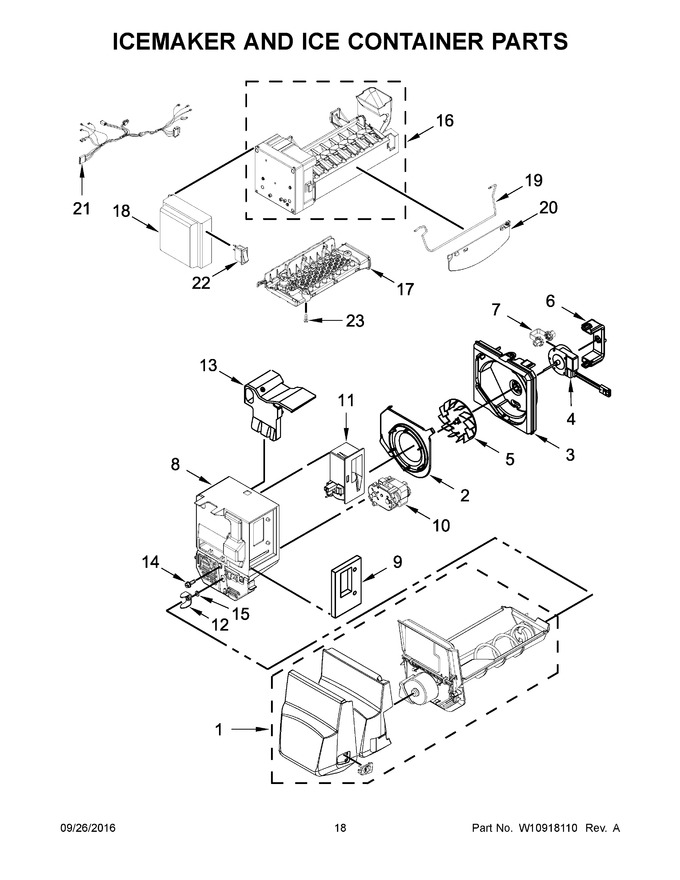

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10324089 | Assembly, Ice Bin (Replaces: W10324089) |
|
Immediately | $ 341.21 | ||||
| 2 | W10121282 | Inlet, Blower |
|
$ 16.80 | |||||
| 3 | W10121281 | Scroll, Blower |
|
$ 78.25 | |||||
| 4 | WPW10162697 | Motor, Fan (Replaces: W10162697) |
|
$ 338.71 | |||||
| 5 | WPW10123444K | Wheel, Blower (Replaces: W10123444) |
|
$ 88.10 | |||||
| 6 | W10165970 | Clip, Fan Motor (Replaces: 12956603SP) |
|
$ 84.92 | |||||
| 7 | W10151687 | Grommet, Fan Motor |
|
$ 13.08 | |||||
| 8 | W10356556 | Divider, Ice Box |
|
$ 142.61 | |||||
| 9 | WP67006341 | Gasket, Damper (Replaces: 12920001SP) |
|
$ 7.96 | |||||
| 10 | W11671282 | Motor, Auger (Replaces: W10372218) |
|
Immediately | $ 110.51 | ||||
| 11 | WPW10127427 | Damper, Control (Replaces: W10127427) |
|
Immediately | $ 246.61 | ||||
| 12 | WP63052-2 | Yoke, Ice Dispenser (Replaces: 63052A001) |
|
Immediately | $ 68.91 | ||||
| 13 | W11676504 | Liner, Divider (Replaces: W10118612) |
|
$ 24.23 | |||||
| 14 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 6.95 | ||||
| 15 | W11378860 | Washer (Replaces: W10465946) |
|
Immediately | $ 16.40 | ||||
| 16 | WPW10300024 | Assembly, Icemaker (complete) (Replaces: W10300024) |
|
Immediately | $ 263.93 | ||||
| 17 | WPW10312691 | Assembly, Impinger (Replaces: W10312691) |
|
$ 349.21 | |||||
| 18 | WPW10121444 | Cover, Ice Maker (Replaces: W10121444) |
|
$ 91.95 | |||||
| 19 | WPW10175514 | Arm, Shutoff (Replaces: W10175514) |
|
Immediately | $ 91.26 | ||||
| 20 | WPW10351019 | Extension, Shutoff Arm (Replaces: W10351019) |
|
$ 80.66 | |||||
| 21 | W10884713 | Harness, Ice Maker (Replaces: W10312697) |
|
$ 148.24 | |||||
| 22 | WP2313326 | Switch, Rocker (Replaces: 2313326) |
|
Immediately | $ 18.45 | ||||
| 23 | 67006425 | Screw, Impinger (Replaces: 12990511K) |
|
Immediately | $ 6.95 |
