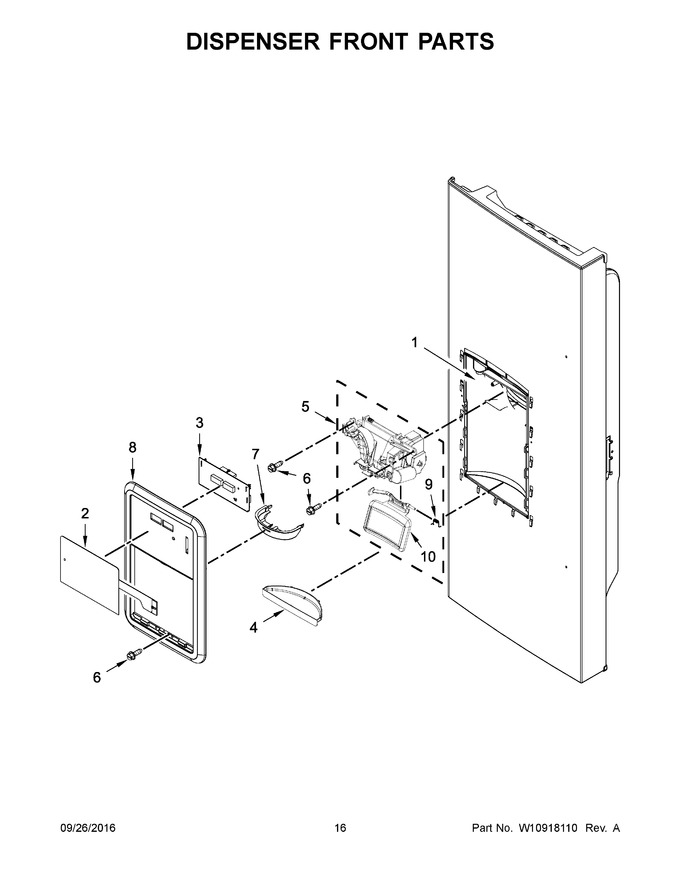

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | W10731566 | Keyboard (white) |
|
$ 247.97 | |||||
| 3 | W10799818 | Board, Display (Replaces: W10708470) |
|
Immediately | $ 285.50 | ||||
| 4 | W10445057 | Sump, Dispenser (white) |
|
$ 64.38 | |||||
| 5 | WP13005703W | Chute, Ext/yoke (includes Switch) (white) (Replaces: 13005703W) |
|
$ 307.71 | |||||
| 6 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 6.95 | ||||
| 7 | 67006295 | Ring, Target (Replaces: 12958301) |
|
$ 52.92 | |||||
| 8 | W10142272 | Facade, Dispenser (white) |
|
$ 253.60 | |||||
| 9 | WP12565502 | Spring, Chute Door (Replaces: 12565502) |
|
$ 7.81 | |||||
| 10 | W10170831 | Assembly, Yoke (includes Pad) (white) |
|
$ 79.81 | |||||
| 10A | W10170832 | Assembly, Yoke (includes Pad) (black) |
|
$ 81.12 | |||||
| 2A | W10731567 | Keyboard (black) |
|
$ 236.37 | |||||
| 4A | W10445056 | Sump, Dispenser (black) |
|
$ 63.79 | |||||
| 5A | WP13005703B | Chute, Ext/yoke (includes Switch) (black) (Replaces: 13005703B) |
|
$ 309.17 | |||||
| 8A | WPW10164982 | Facade, Dispenser (black) (Replaces: W10164982) |
|
$ 223.28 |
