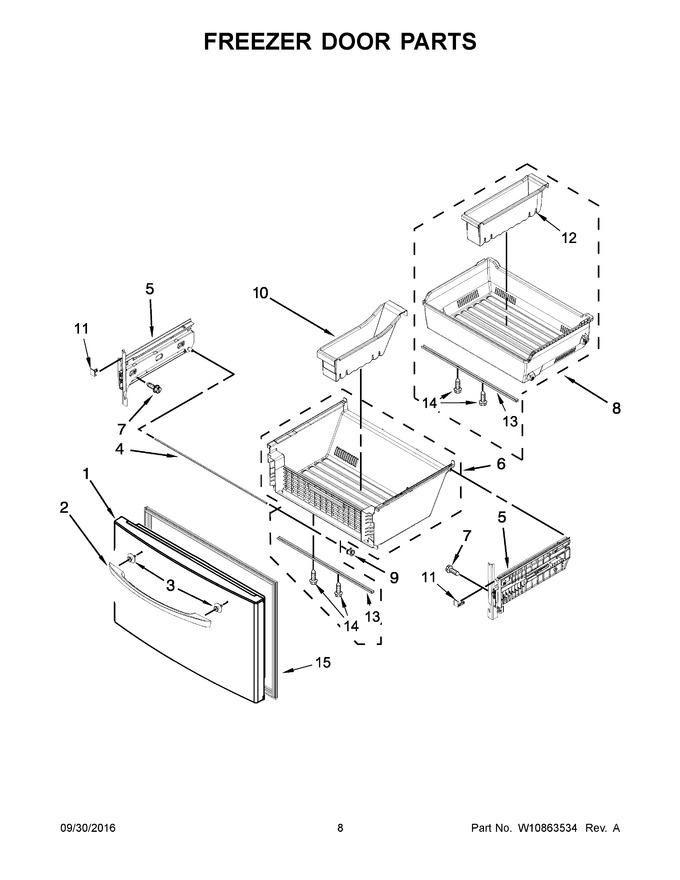

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10422791		Door, Freezer (stainless)		Appelez-nous	-
2	W10827046		Handle, Door (stainless)   (Replaces: W10719666N)			Immediately	$ 232.68
3	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 12.88
4	W10503521		Shaft, Rack				$ 26.67
5	W11668671		Assembly, Bracket (left Hand)   (Replaces: W10625067)			Immediately	$ 529.03
6	W10590553		Assembly, Lower Pan				$ 122.88
7	WP67006908		Screw   (Replaces: 12990518)			Immediately	$ 8.78
8	W10704089		Assembly, Upper Pan				$ 89.74
9	W10852685		Clip, Shaft   (Replaces: W10709748)				$ 11.39
10	W10507444		Divider, Lower				$ 62.14
11	WPW10485096		Stop, Pan (left Hand)   (Replaces: W10485096)				$ 83.65
12	WPW10485654		Divider, Upper   (Replaces: W10485654)				$ 66.81
13	W11677723		Support, Pan   (Replaces: W10469177)			Immediately	$ 155.10
14	WP489443		Screw (stainless)   (Replaces: 489443)			Immediately	$ 8.33
15	W10407216		Gasket, Door (grey)   (Replaces: W10248749)			Immediately	$ 267.66
11A	WPW10485089		Stop, Pan (right Hand)   (Replaces: W10485089)				$ 86.71
5A	W11668671		Assembly, Bracket (right Hand)   (Replaces: W10625068)			Immediately	$ 529.03
