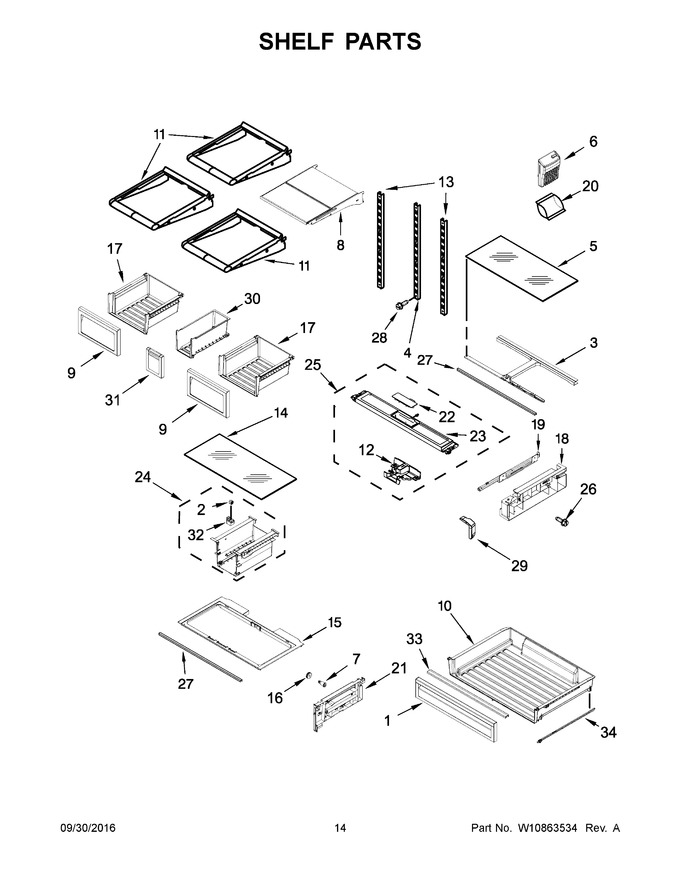

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10510417		Front, Pantry   (Replaces: W10510417)				$ 105.60
2	W10248789		Roller, Center				$ 19.37
3	W10515051		Support, Pantry				$ 62.37
4	WPW10248516		Ladder, Center   (Replaces: W10248516)				$ 35.89
5	WPW10628815		Glass, Pantry   (Replaces: W10628815)				$ 148.12
6	WPW10408747		Holder, Filter   (Replaces: W10408747)				$ 32.61
7	WPW10257246		Axle, Roller   (Replaces: W10257246)				$ 36.54
8	W10709179		Assembly, Tuck Shelf				$ 221.35
9	WPW10688114		Assembly, Crisper Front   (Replaces: W10688114)			Immediately	$ 176.39
10	WPW10654844		Pan, Pantry   (Replaces: W10498901)			Immediately	$ 130.40
11	W11540779		Assembly, Shelf   (Replaces: W10709149)				$ 152.48
12	W10512596		Knob, Pantry Temperature Control		Appelez-nous	-
13	W11690684		Ladder, Side   (Replaces: W10372170)				$ 50.62
14	W10628814		Glass, Crisper				$ 56.29
15	W10717573		Cover, Crisper		Appelez-nous	-
16	WPW10248544		Roller, Guide   (Replaces: W10248544)				$ 8.09
17	W10850377		Pan, Crisper   (Replaces: W10387757)			Immediately	$ 137.11
18	W10248798		Sideplate, Pantry (left Hand)				$ 97.50
19	W10508327		Slide, Pantry (left Hand)				$ 301.07
20	W10346771		Filter, Produce Preserver		Appelez-nous	-
21	W11173721		Plate, Crisper (left Hand)   (Replaces: W10530311)				$ 35.25
22	W10554279		Housing, Pantry Temperature Control		Appelez-nous	-
23	WPW10554285		Cover, Pantry Top   (Replaces: W10554285)				$ 170.63
24	W10662015		Assembly, Center Crisper Support				$ 87.71
25	W10554293		Assembly, Pantry Front Cover				$ 188.95
26	W10185612		Screw				$ 7.08
27	WPW10236512		Support, Front   (Replaces: W10236512)				$ 134.05
28	W10423560		Screw		Appelez-nous	-
29	W10248852		Front, Sideplate (pantry) (left Hand)			Immediately	$ 31.00
30	WPW10387778		Pan, Crisper   (Replaces: W10387778)				$ 127.48
31	W11218695		Crisper, Front   (Replaces: W10423520)				$ 325.33
32	W10530314		Housing, Roller				$ 11.36
33	W10398002		Handle, Pantry				$ 119.70
34	W10508330		Roller Runner, Pantry (left Hand)		Appelez-nous	-
18A	W10248796		Sideplate, Pantry (right Hand)				$ 123.03
19A	W10508326		Slide, Pantry (right Hand)				$ 311.48
21A	W10530310		Plate, Crisper (right Hand)				$ 26.72
29A	W10248851		Front, Sideplate (pantry) (right Hand)			Immediately	$ 36.72
34A	W10508328		Roller Runner, Pantry (right Hand)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
