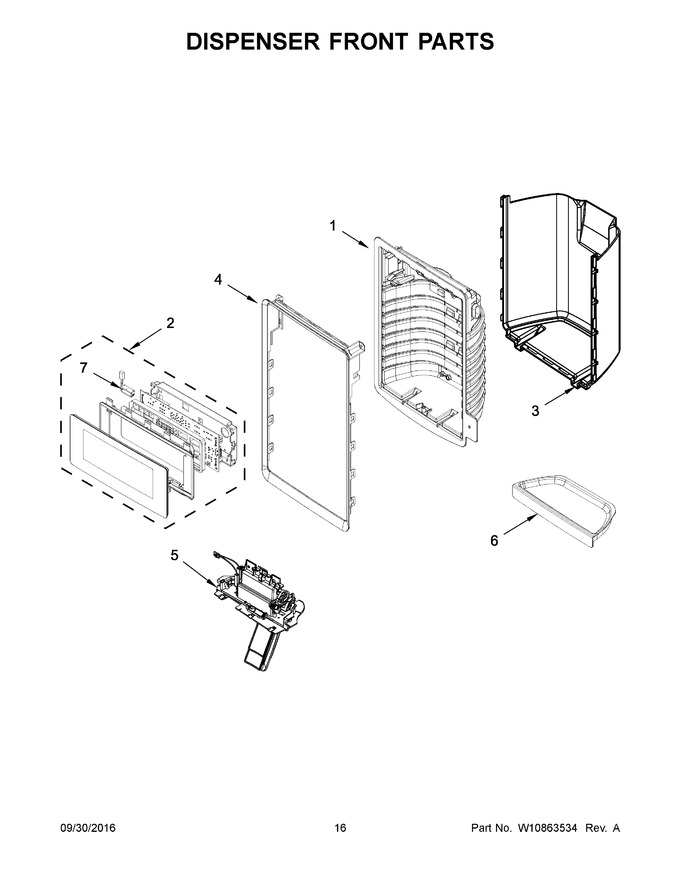

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	W10852669		Assembly, User Interface (white)   (Replaces: W10808730)				$ 456.33
3	W10712262		Wall, Dispenser False (grey)				$ 84.57
4	WPW10402180		Ring, Trim (chrome)   (Replaces: W10402180)			Immediately	$ 60.92
5	WPW10616134		Assembly, Separator (grey)   (Replaces: W10616134)				$ 209.79
6	W10709233		Tray, Drip (grey)		Appelez-nous	-
7	W11290115		Assembly, Led   (Replaces: W10470750)				$ 84.45
