SELECT A DIAGRAM

01 - Cover Sheet


02 - Oven Parts

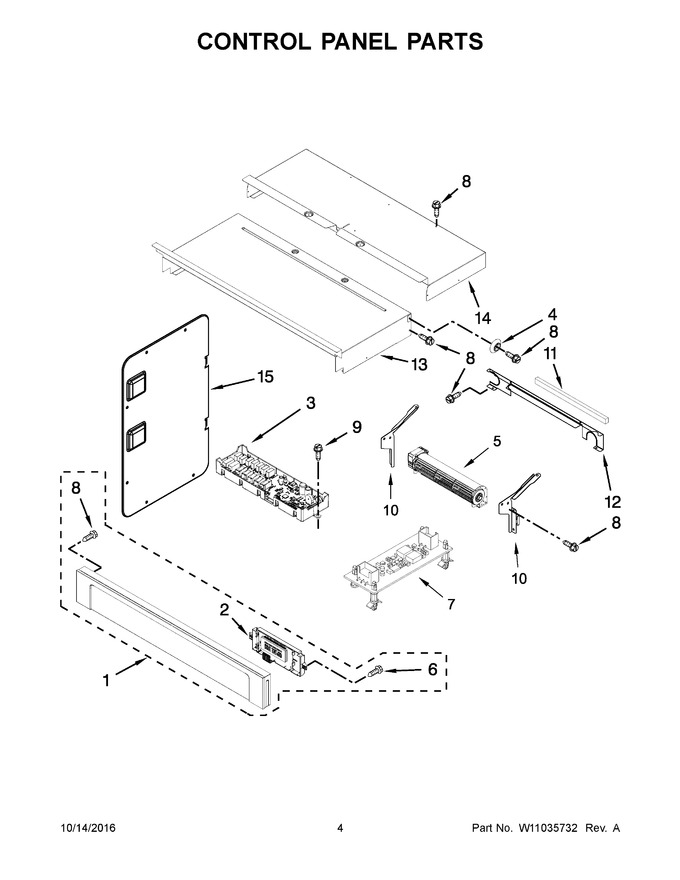

03 - Control Panel Parts


04 - Oven Door Parts


05 - Internal Oven Parts


06 - Cabinet And Stirrer Parts


07 - Internal Microwave Parts


08 - Top Venting Parts


09 - Microwave Door Parts


10 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10864185		Assembly, Control Panel (includes Overlay) (stainless)   (Replaces: W10812359)		Appelez-nous	-
2	WPW10752316		Interface (maxwell), User Board   (Replaces: W10752316)			Immediately	$ 403.67
3	W11035599		Assembly (maxwell), Main Control   (Replaces: W10878986)				$ 502.51
4	W10618105		Spacer, Lateral		Appelez-nous	-
5	W11713858		Blower   (Replaces: W10669823)			Immediately	$ 331.99
6	WP12990527		Screw   (Replaces: 7101P403-60)			Immediately	$ 7.94
7	WPW10412514		Board, Wide Interface   (Replaces: W10412514)				$ 303.47
8	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.82
9	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 6.95
10	W10655463		Bracket, Blower (left)		Appelez-nous	-
11	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 7.75
12	W10618126		Chassis, Back Divider		Appelez-nous	-
13	W10318159		Chassis, Cover Top Front 27		Appelez-nous	-
14	W10283032		Chassis, Cover Top Back 27		Appelez-nous	-
15	W10655467		Chassis, Combo Side				$ 79.07
10A	W10655462		Bracket, Blower (right)		Appelez-nous	-
NI	4450800		Screw, Grounding				$ 12.83
NI	4448664		Clamp, Conduit				$ 20.39
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11136135		Harness, Main   (Replaces: W10876818)		Appelez-nous	-
NI	W11356954		Harness, Fan & Turntable   (Replaces: W10389372)				$ 141.67
NI	W10874060		Harness, Inverter   (Replaces: W10406103)				$ 141.63
NI	W11356970		Harness, Interlock   (Replaces: W10371814)				$ 157.50
NI	W11157222		Harness, Communication   (Replaces: W10778562)		Appelez-nous	-
NI	W11132989		Harness, Door Latch   (Replaces: W10775068)				$ 113.31
NI	16515		Clip, Harness   (Replaces: 313438)				$ 19.55
NI	W11226264		Strap, Ground   (Replaces: W10392129)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
