Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WPW10260252 Element, Broil   (Replaces: W10260252) Special Order $ 132.83

2 WPW10317431 Rack, Oven   (Replaces: W10317431) Special Order $ 126.66

3 W10318198 Tray, Hidden Bake Special Order $ 186.50

4 WP7101P434-60 Screw   (Replaces: 7101P434-60) Special Order $ 6.95

5 WP90767 Screw   (Replaces: 7101P426-60) In-Stock Immediately $ 7.82

6 W10282957 Crossbar, Hidden Bake Tray Special Order $ 45.21

7 W11545804 Element, Bake   (Replaces: W10546517) In-Stock Immediately $ 102.53


    View Diagram in Separate Window     Print Icon   Print Part List

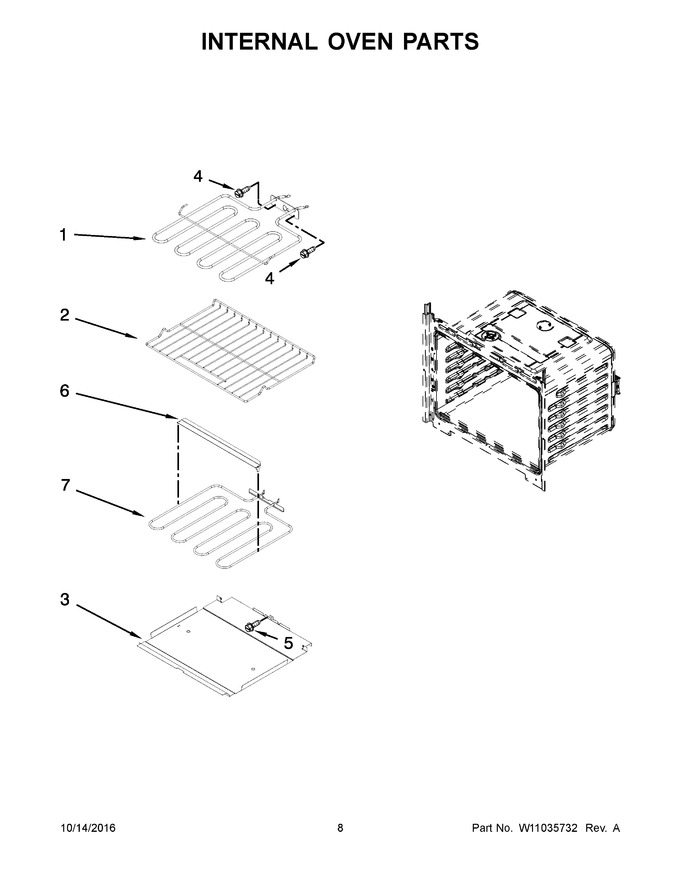

Diagram for WOC54EC7AS04
