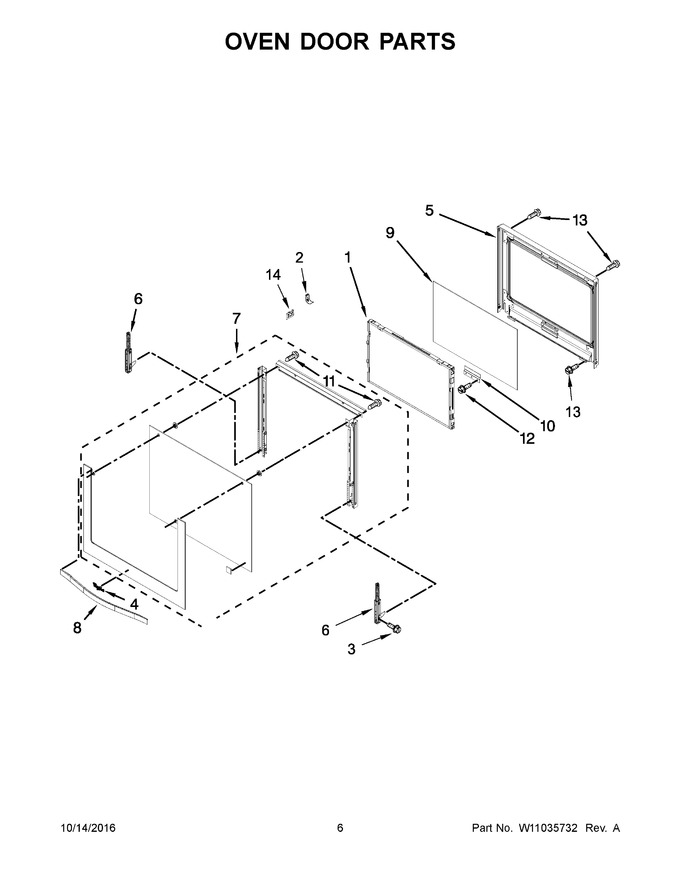

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10347597 | Assembly, Window Pack (Replaces: W10347597) |
|
$ 294.07 | |||||
| 2 | W10812024 | Spring, Door Glass Fixation (Replaces: W10284285) |
|
$ 165.76 | |||||
| 3 | WP3196183 | Screw (Replaces: 3196183) |
|
Immediately | $ 8.18 | ||||
| 4 | W11178521 | Badge (grey) (Replaces: W10481433) |
|
Immediately | $ 63.13 | ||||
| 5 | WPW10320793 | Assembly, Liner (Replaces: W10320793) |
|
$ 337.34 | |||||
| 6 | W10639070 | Hinge, Door |
|
$ 68.31 | |||||
| 7 | W10587546 | Assembly, Door (stainless) |
|
- | |||||
| 8 | WPW10317140 | Handle, Door (stainless) (Replaces: W10317140) |
|
$ 224.84 | |||||
| 9 | W10829001 | Glass, Inner (Replaces: W10678525) |
|
$ 208.55 | |||||
| 10 | W10853628 | Bracket, Glass (Replaces: W10284297) |
|
$ 163.86 | |||||
| 11 | WP488130 | Screw (Replaces: 488130) |
|
$ 7.32 | |||||
| 12 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 13 | WP98008545 | Screw (black) (Replaces: 7101P633-60) |
|
$ 18.60 | |||||
| 14 | W11025615 | Clip, Spring Metal (Replaces: W10653954) |
|
Immediately | $ 176.14 |
