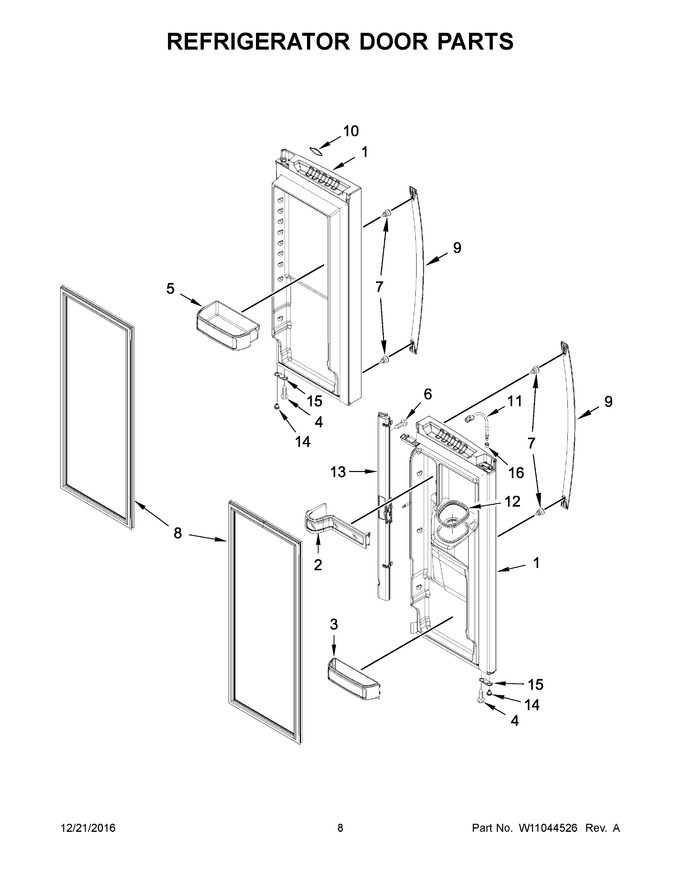

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13107323WQ | Door, Refrigerator Left Hand (white) (Replaces: 13107323W) |
|
$ 1,025.82 | |||||
| 2 | W10355269 | Bucket, Upper |
|
$ 78.54 | |||||
| 3 | W11379148 | Bucket, Small (Replaces: W10355270) |
|
Immediately | $ 164.59 | ||||
| 4 | WP98165 | Screw (Replaces: 12990521) |
|
$ 8.57 | |||||
| 5 | W11706640 | Bucket, Gallon (Replaces: W10355264) |
|
$ 75.11 | |||||
| 6 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 7.30 | ||||
| 7 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 12.88 | ||||
| 8 | W10830276 | Gasket, Door (white) |
|
$ 335.11 | |||||
| 9 | W11045126 | Handle, Door (white) (Replaces: W10887621) |
|
- | |||||
| 10 | W11223753 | Badge (Replaces: W10884773) |
|
Immediately | $ 87.26 | ||||
| 11 | WPW10511930 | Waterline, Door (Replaces: W10511930) |
|
$ 121.94 | |||||
| 12 | WPW10287601 | Seal, Ice Chute (Replaces: W10287601) |
|
Immediately | $ 32.76 | ||||
| 13 | W10311759 | Mullion, Door (white) |
|
$ 126.88 | |||||
| 14 | WP67003638 | Closure, Door (white) (Replaces: 12028505W) |
|
Immediately | $ 8.15 | ||||
| 15 | 12968202W | Stop, Door (white) |
|
$ 69.29 | |||||
| 16 | 12996601 | Clip, Bushing |
|
$ 10.05 | |||||
| 13A | W10311758 | Mullion, Door (black) |
|
$ 131.64 | |||||
| 13B | WPW10311757 | Mullion, Door (grey) (Replaces: W10311757) |
|
$ 141.14 | |||||
| 14A | WP67003639 | Closure, Door (black) (Replaces: 12028505B) |
|
$ 90.32 | |||||
| 14B | WP12028505AP | Closure, Door (grey) (Replaces: 12028505AP) |
|
Immediately | $ 61.46 | ||||
| 15A | W11708403 | Stop, Door (black) (Replaces: 12968202B) |
|
Immediately | $ 14.75 | ||||
| 15B | W11703060 | Stop, Door (grey) (Replaces: 12968202AP) |
|
$ 15.46 | |||||
| 1A | W10865000 | Door, Refrigerator Left Hand (black) (Replaces: W10861096) |
|
$ 1,055.70 | |||||
| 1B | W11104476 | Door, Refrigerator Left Hand (black Stainless) (Replaces: W11022747) |
|
$ 1,127.55 | |||||
| 1C | W11104477 | Door, Refrigerator Left Hand (stainless) (Replaces: W11022772) |
|
$ 1,124.07 | |||||
| 1D | 13107319WQ | Door, Refrigerator Right Hand (white) (Replaces: 13107319W) |
|
$ 820.85 | |||||
| 1E | W10865003 | Door, Refrigerator Right Hand (black) (Replaces: W10861098) |
|
- | |||||
| 1F | W11104465 | Door, Refrigerator Right Hand (black Stainless) (Replaces: W11022757) |
|
$ 1,115.39 | |||||
| 1G | W11104466 | Door, Refrigerator Right Hand (stainless) (Replaces: W11022776) |
|
$ 1,045.36 | |||||
| 8A | W10830277 | Gasket, Door (black) |
|
$ 335.09 | |||||
| 8B | W10830274 | Gasket, Door (grey) |
|
Immediately | $ 205.74 | ||||
| 9A | W11045127 | Handle, Door (black) (Replaces: W10887620) |
|
- | |||||
| 9B | W11045128 | Handle, Door (black Stainless) (Replaces: W10918272) |
|
Immediately | $ 190.44 | ||||
| 9C | W11045129 | Handle, Door (stainless) (Replaces: W10874805) |
|
Immediately | $ 183.31 |
