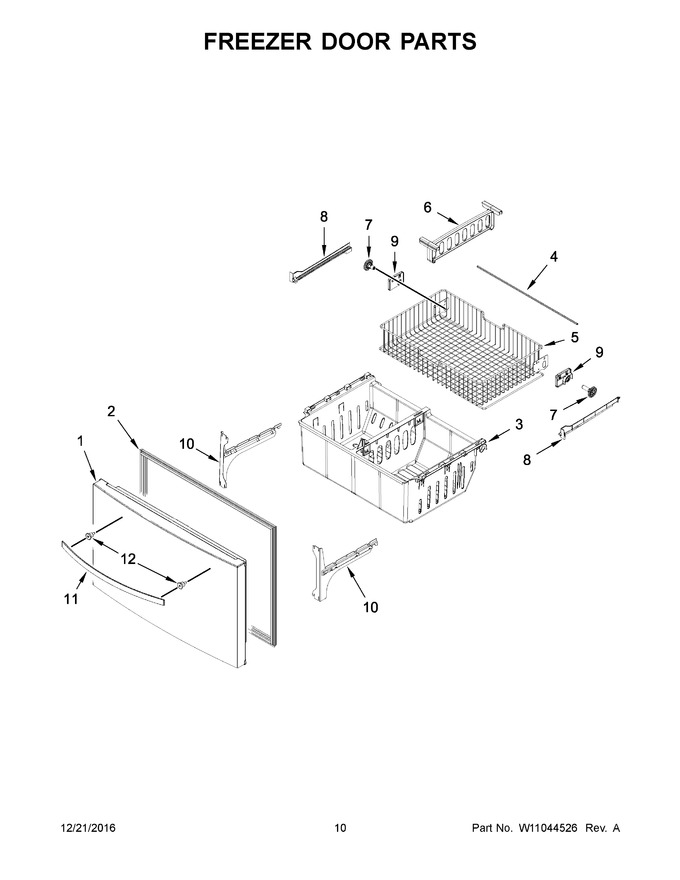

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11104490		Door, Freezer (white)   (Replaces: W11023065)				$ 1,238.26
2	WPW10443321		Gasket, Door (white)   (Replaces: W10443321)				$ 359.84
3	WPW10293682		Bin, Lower   (Replaces: W10293682)				$ 181.18
4	W11173556		Shaft, Rack   (Replaces: W10802333)				$ 32.38
5	W11218042		Basket, Upper   (Replaces: W10348249)				$ 203.43
6	W10146439		Divider, Upper Basket				$ 32.66
7	WPW10474716		Gear (left Hand)   (Replaces: W10474716)			Immediately	$ 32.42
8	W11489993		Rack, Side (left Hand)   (Replaces: W10516603)				$ 23.46
9	W10348259		Mount, Gear (left Hand)				$ 89.87
10	WPW10330991		Bracket, Door Slide (left Hand)   (Replaces: W10330991)				$ 164.31
11	W11045121		Handle, Door (white)   (Replaces: W10887633)				$ 183.99
12	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 12.88
10A	WPW10330993		Bracket, Door Slide (right Hand)   (Replaces: W10330993)				$ 166.09
11A	W11045122		Handle, Door (black)   (Replaces: W10887632)		Appelez-nous	-
11B	W11043768		Handle, Door (black Stainless)   (Replaces: W11024145)				$ 190.44
11C	W11045125		Handle, Door (stainless)   (Replaces: W10874811)			Immediately	$ 190.44
1A	W11104488		Door, Freezer (black)   (Replaces: W11023033)		Appelez-nous	-
1B	W11104489		Door, Freezer (black Stainless)   (Replaces: W10920749)				$ 1,370.29
1C	W11104491		Door, Freezer (stainless)   (Replaces: W11022780)				$ 1,319.05
2A	WPW10436253		Gasket, Door (black)   (Replaces: W10436253)				$ 360.89
2B	WPW10714545		Gasket, Door (grey)   (Replaces: W10714545)				$ 323.60
7A	WPW10474715		Gear (right Hand)   (Replaces: W10474715)			Immediately	$ 32.76
8A	W11489994		Rack, Side (right Hand)   (Replaces: W10516602)				$ 23.46
9A	W10348260		Mount, Gear (right Hand)				$ 89.90

    View Diagram in Separate Window       Print Part List
