01 - Cover Sheet


02 - Cabinet Parts


03 - Refrigerator Liner Parts


04 - Freezer Liner Parts


05 - Refrigerator Door Parts


06 - Freezer Door Parts


07 - Unit Parts


08 - Shelf Parts


09 - Dispenser Front Parts


10 - Icemaker And Ice Container Parts


11 - Optional Parts

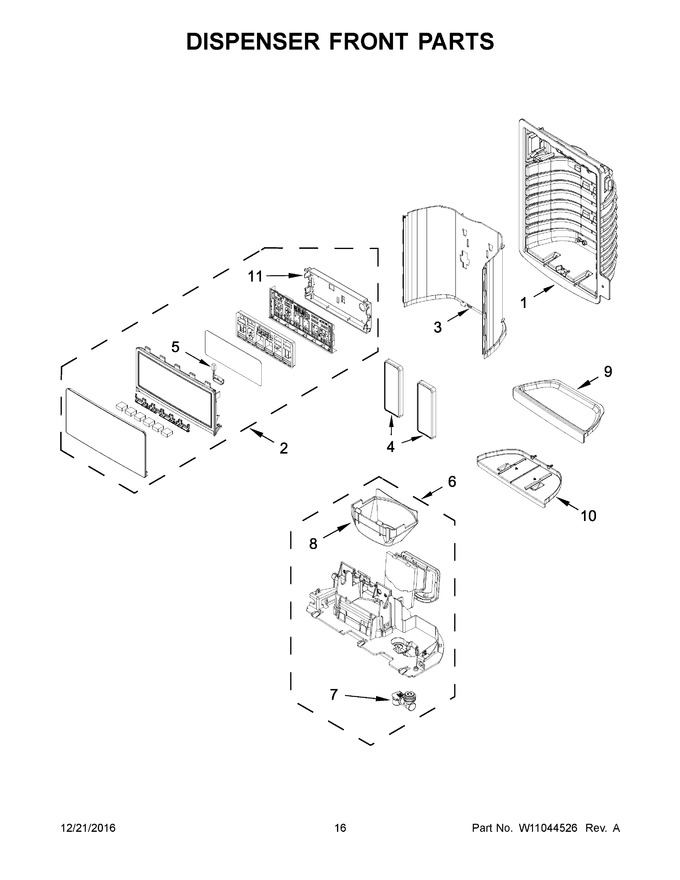

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	W11542754		Assembly, User Interface (silver)   (Replaces: W10887493)				$ 493.70
3	W11045975		Wall, Dispenser False (white)   (Replaces: W10215699)		Appelez-nous	-
4	W10353846		Assembly, Pad (includes Blue Light) (white)				$ 280.01
5	W11290115		Assembly, Led   (Replaces: W10238083)				$ 84.45
6	WPW10353552		Assembly, Seperator   (Replaces: W10353552)				$ 166.29
7	W11227371		Assembly, Spigot Body   (Replaces: 2316647)				$ 136.38
8	WPW10435760		Guide, Ice   (Replaces: W10339578)				$ 23.94
9	W11045970		Dispenser, Tray (white)   (Replaces: W10267869)				$ 65.93
10	W10267860		Tray, Dispenser Slide (white)		Appelez-nous	-
11	W10254277		Cover, Board		Appelez-nous	-
10A	W10267861		Tray, Dispenser Slide (black)				$ 74.39
10B	WPW10267863		Tray, Dispenser Slide (grey)   (Replaces: W10267863)				$ 73.22
3A	W11045976		Wall, Dispenser False (black)   (Replaces: W10233560)				$ 43.18
3B	W11045978		Wall, Dispenser False (grey)   (Replaces: W10299897)				$ 90.33
4A	W11661207		Assembly, Pad (includes Blue Light) (black)   (Replaces: W10353847)				$ 66.19
4B	WPW10353848		Assembly, Pad (includes Blue Light) (grey)   (Replaces: W10353848)				$ 321.56
9A	W11045971		Dispenser, Tray (black)   (Replaces: W10267870)				$ 65.90
9B	W11192301		Dispenser, Tray (nickel)   (Replaces: W10299895)				$ 65.82
