SELECT A DIAGRAM

1 - Freezer Door


2 - Fresh Food Door


3 - Freezer Section


4 - Evaporator Instructions


5 - Freezer Shelves


6 - Ice Maker & Dispenser


7 - Fresh Food Section


8 - Fresh Food Shelves


9 - Machine Compartment

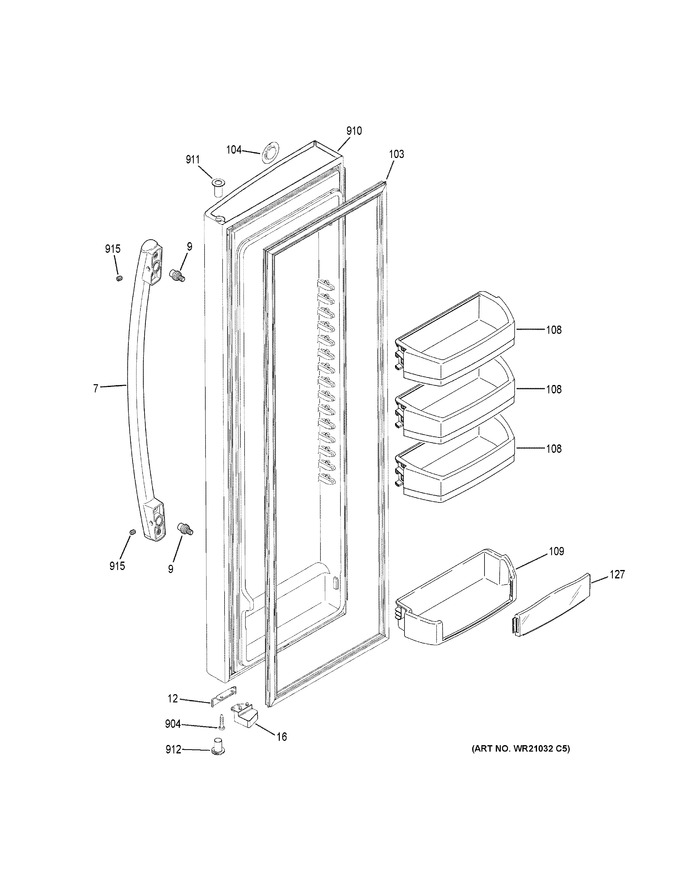

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	WR12X20441		Arc Handle Asm		Appelez-nous	-
9	WR01A01801		Fastener Door Handle   (Replaces: WR01X11007)			Immediately	$ 12.71
12	WR01A01018		Stop Door Black   (Replaces: WR02X10782)				$ 39.70
16	WR01F01557		Cam Closure Fz Black   (Replaces: WR02X10779)				$ 36.53
103	WR24X20456		Gasket		Appelez-nous	-
104	WR01A01450		Badge Ge   (Replaces: WR04X10223)				$ 14.29
108	WR71X10781		Door Bin Ff Adj		Appelez-nous	-
109	WR01L02880		Module Shelf Ff   (Replaces: WR71X10979)				$ 38.81
127	WR01L04630		Insert Module   (Replaces: WR71X10761)			Immediately	$ 68.21
904	WR01X10582		Scr 10-16		Appelez-nous	-
910	WR78X20963		Door Foam Asm Ff		Appelez-nous	-
911	WR01X10956		Thimble Door		Appelez-nous	-
912	WR01X10953		Thimble Door		Appelez-nous	-
915	WR01X20424		Set Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
