SELECT A DIAGRAM

1 - Freezer Door


2 - Fresh Food Door


3 - Freezer Section


4 - Evaporator Instructions

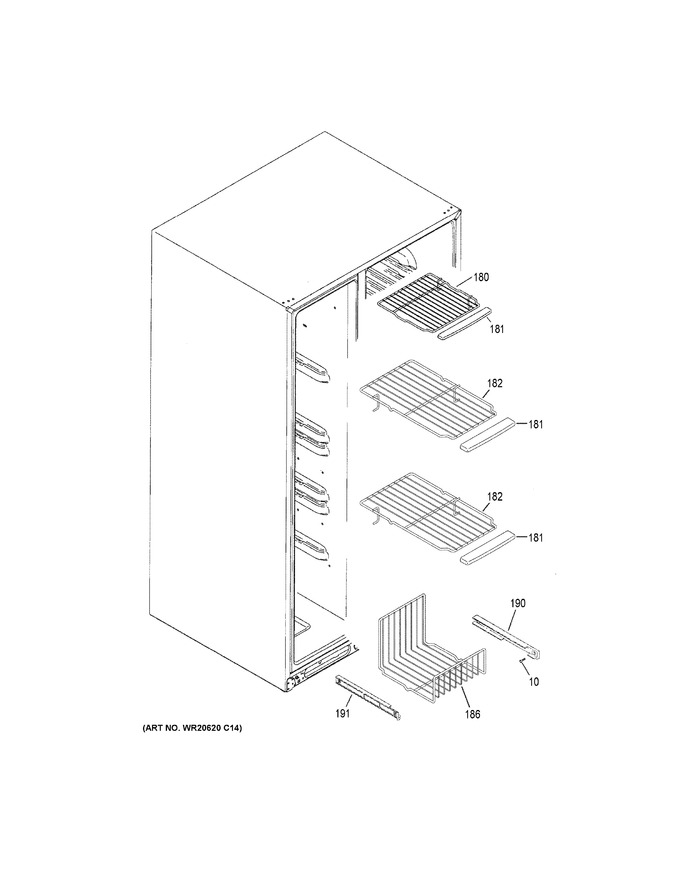

5 - Freezer Shelves


6 - Ice Maker & Dispenser


7 - Fresh Food Section


8 - Fresh Food Shelves


9 - Machine Compartment


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	WR01X10065		Screw 10-32 Gxtt Flp 595 S		Appelez-nous	-
180	WR71X10990		Shelf Fixed Fz		Appelez-nous	-
181	WR38X10368		Trim Shelf Fz		Appelez-nous	-
182	WR71X10991		Shelf Slideout Fz		Appelez-nous	-
186	WR21X10126		Basket Wire Slideout Fz		Appelez-nous	-
190	WR72X10061		Support Slide Basket		Appelez-nous	-
191	WR72X10062		Support Slide Basket		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
