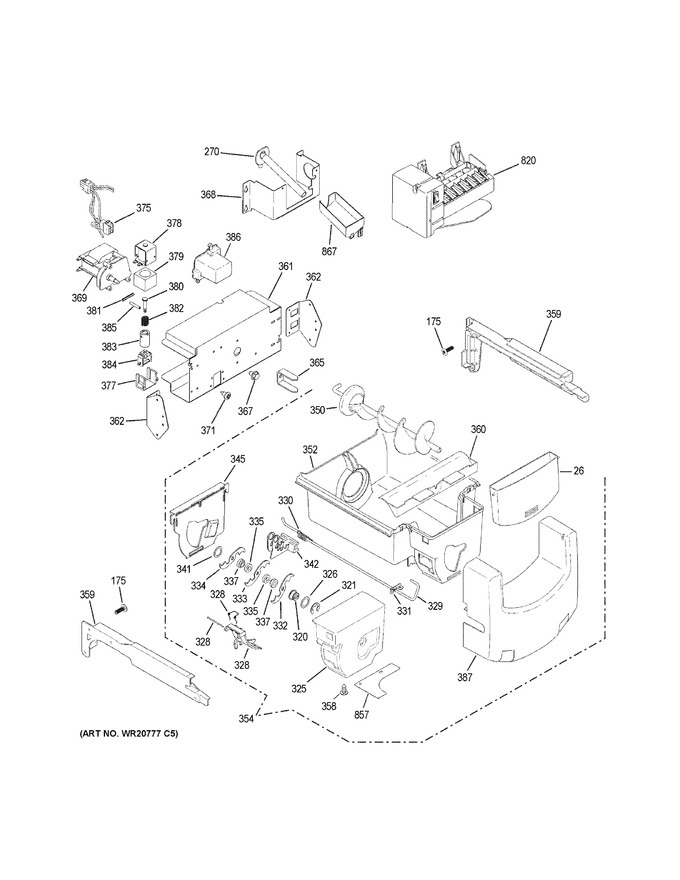

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 26 | WR17X12905 | Lid Icemaker Cover |
|
- | |||||
| 175 | WR01X10035 | Screw 8-18 Ab Ihw 5/8 S |
|
- | |||||
| 270 | WR17X11506 | Grommet And Tube Asm |
|
- | |||||
| 320 | WR01F03224 | Coarse Thread Auger Nut (Replaces: WR01X10315) |
|
$ 6.35 | |||||
| 321 | WR1X1367 | Retainer Ring E |
|
- | |||||
| 325 | WR17X10717 | Housing Crusher Display |
|
- | |||||
| 326 | WR01A01060 | Washer (Replaces: WR1X1366) |
|
$ 4.20 | |||||
| 328 | WR2X4561 | Spring Ice Deflector |
|
- | |||||
| 328 | WR17X10703 | Deflector Ice Display |
|
- | |||||
| 328 | WR2X4143 | Pin Deflector Disp |
|
- | |||||
| 329 | WR17X11411 | Wire Actuator Disp |
|
- | |||||
| 330 | WR01A00911 | Spring Deflector (Replaces: WR02X10583) |
|
$ 4.20 | |||||
| 331 | WR02X10580 | Retainer Spring |
|
- | |||||
| 332 | WR17X11239 | Blades Moving Disp |
|
- | |||||
| 333 | WR17X11240 | Blades Moving Disp |
|
- | |||||
| 334 | WR17X11241 | Blades Moving Disp |
|
- | |||||
| 335 | WR2X4139 | Spacer Crusher Middle |
|
- | |||||
| 337 | WR2X4138 | Spacer Crusher Stationar |
|
- | |||||
| 341 | WR29X10045 | Washer Crusher Blade |
|
- | |||||
| 342 | WR02X10691 | Stationary Blades Assy |
|
- | |||||
| 345 | WR01L00753 | Cover Crusher Hsg Disp (Replaces: WR17X11497) |
|
$ 30.98 | |||||
| 350 | WR01F00640 | Auger Asm Disp (Replaces: WR17X11939) |
|
Immediately | $ 52.95 | ||||
| 352 | WR01L00331 | Bucket Ice Dispenser (Replaces: WR30X10068) |
|
$ 84.76 | |||||
| 354 | WR17X12904 | Bucket & Auger Asm |
|
- | |||||
| 358 | WR01X10607 | Scr 8-18 Ab Phr 1/2 S |
|
- | |||||
| 359 | WR72X10169 | Glide Bracket Lh |
|
- | |||||
| 359 | WR01A00218 | Glide Bracket Rh (Replaces: WR72X10170) |
|
$ 19.53 | |||||
| 360 | WR17X11450 | Diverter Overflow |
|
- | |||||
| 361 | WR17X24304 | Cover Motor & Solenoid |
|
- | |||||
| 362 | WR02X12057 | Bracket Angle |
|
- | |||||
| 365 | WG04F04255 | Drive Auger Disp (Replaces: WR02X11941) |
|
$ 30.18 | |||||
| 367 | WR01X10618 | Scr 8-18 Tpt 1/4 |
|
- | |||||
| 368 | WR02X12061 | Bracket Im Mounting |
|
- | |||||
| 369 | WR60X22815 | Motor Crusher Disp |
|
- | |||||
| 371 | WR01X10619 | Scr 10-18 Hi/lo Hxw 1/2 |
|
- | |||||
| 375 | WR23X26770 | Harness Motor & Sol |
|
- | |||||
| 377 | WR2X7309 | Saddle Solenoid |
|
- | |||||
| 378 | WR62X20426 | Solenoid And Arm Asm |
|
- | |||||
| 379 | WR17X12811 | Shroud Solenoid |
|
- | |||||
| 380 | WR01F00328 | Plunger Solenoid (Replaces: WR17X1064) |
|
$ 151.81 | |||||
| 381 | WR01F00328 | Pin Spiral (Replaces: WR2X4257) |
|
$ 151.81 | |||||
| 382 | WG03A00097 | Spring Solenoid Linkage (Replaces: WR2X4258) |
|
$ 79.62 | |||||
| 383 | WR01F00328 | Collar Solenoid Disp (Replaces: WR17X12742) |
|
$ 151.81 | |||||
| 384 | WG04F00407 | Stirrup Solenoid Display (Replaces: WR17X1066) |
|
$ 95.41 | |||||
| 385 | WR02X20425 | Spiral Pin |
|
- | |||||
| 386 | WR02X11295 | Boot Auger Motor |
|
- | |||||
| 387 | WR17X12901 | Cover Bucket Disp |
|
- | |||||
| 820 | WR30X10087 | Icemaker Asm |
|
- | |||||
| 857 | WR17X12730 | Diverter Ice |
|
- | |||||
| 867 | WR29X10109 | Cup Fill Im |
|
- |
