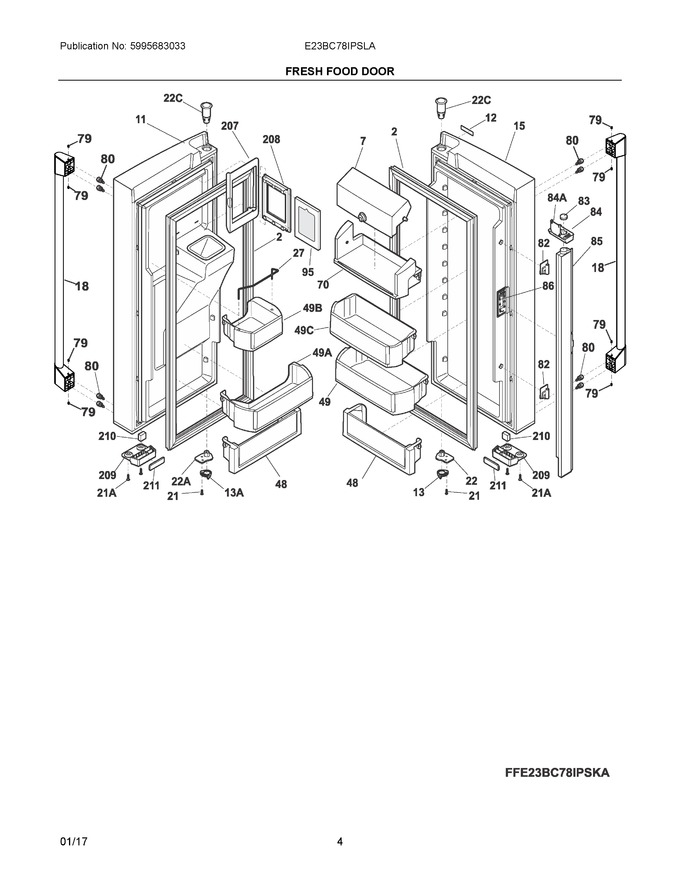

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 241778315 | Gasket-door (Replaces: 241778301) |
|
Immediately | $ 99.87 | ||||
| 7 | 241895805 | Door-dairy (Replaces: 241804701) |
|
$ 115.76 | |||||
| 11 | 241988068 | Door |
|
$ 594.41 | |||||
| 12 | 241603101 | Label |
|
$ 89.96 | |||||
| 13 | 241868401 | Door Stop |
|
$ 20.48 | |||||
| 15 | 241988064 | Door |
|
$ 636.41 | |||||
| 18 | 242052504 | Handle Assembly (Replaces: 241637927) |
|
$ 348.86 | |||||
| 21 | 242017501 | Screw |
|
$ 17.33 | |||||
| 22 | 242075601 | Cam |
|
$ 23.31 | |||||
| 27 | 241752702 | Retainer |
|
$ 43.82 | |||||
| 48 | 241804303 | Bin-door |
|
$ 103.75 | |||||
| 49 | 241804007 | Bin-door |
|
$ 126.11 | |||||
| 70 | 241804604 | Compartment-dairy |
|
- | |||||
| 79 | 218755401 | Screw-set |
|
Immediately | $ 27.80 | ||||
| 80 | 218755504 | Screw |
|
Immediately | $ 20.67 | ||||
| 82 | 241779401 | Hinge-mullion |
|
Immediately | $ 24.43 | ||||
| 83 | 241812202 | Magnet |
|
$ 80.33 | |||||
| 84 | 808274201 | Guide-mullion |
|
Immediately | $ 40.45 | ||||
| 85 | 241778808 | Flipper Mullion Assembly |
|
Immediately | $ 350.44 | ||||
| 86 | 241779802 | Hinge-mullion (Replaces: 241779801) |
|
Immediately | $ 45.83 | ||||
| 95 | EAFCBF | Filter (Replaces: 242047801) |
|
Immediately | $ 30.71 | ||||
| 207 | 241934901 | Housing-filter |
|
$ 39.38 | |||||
| 208 | 241935001 | Door-air Filter |
|
$ 98.24 | |||||
| 209 | 242291001 | Housing |
|
$ 22.75 | |||||
| 210 | 241779101 | Magnet |
|
Immediately | $ 34.65 | ||||
| 211 | 241979601 | Bumper |
|
$ 25.20 | |||||
| 13A | 241868402 | Door Stop |
|
$ 20.48 | |||||
| 21A | 5304453707 | Screw (Replaces: 241953901) |
|
Immediately | $ 17.69 | ||||
| 22A | 242075602 | Cam |
|
$ 27.80 | |||||
| 22C | 241760401 | Bearing |
|
Immediately | $ 21.26 | ||||
| 49A | 241896004 | Bin-door |
|
$ 75.50 | |||||
| 49B | 241906302 | Bin-door |
|
$ 49.61 | |||||
| 49C | 241896104 | Bin-door |
|
$ 112.69 | |||||
| 84A | 5303918644 | Cover-mullion (Replaces: 242190501) |
|
$ 46.04 | |||||
| NI | 241926002 | Harness-wiring |
|
$ 47.99 | |||||
| NI | 241806601 | Connector-water (Replaces: 242103001) |
|
Immediately | $ 78.40 | ||||
| NI | 242015001 | Screw |
|
Immediately | $ 18.11 | ||||
| NIA | 241995401 | Divider-dairy Compt |
|
$ 21.26 | |||||
| NIA | 5304453707 | Screw (Replaces: 241641501) |
|
Immediately | $ 17.69 | ||||
| NIA | 240451503 | Screw |
|
$ 4.21 | |||||
| NIB | 242068601 | Bumper |
|
$ 16.01 | |||||
| NIB | 241836301 | Knob-dairy Door |
|
$ 43.31 | |||||
| NIC | 241836401 | Latch-door |
|
$ 20.48 | |||||
| NIC | 241788402 | Harness-wiring |
|
- |
