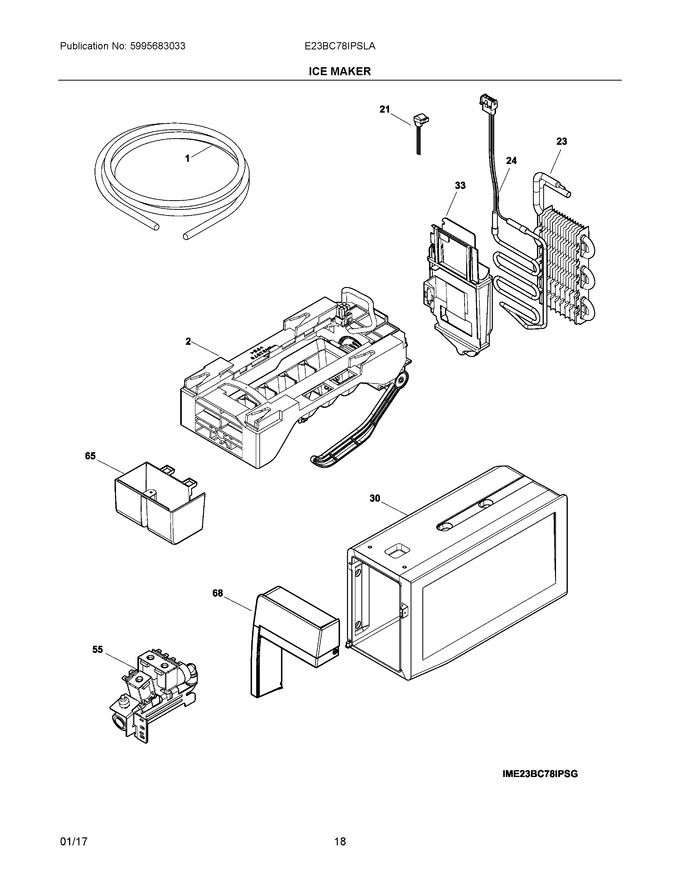

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976435 | Tube-water |
|
$ 22.84 | |||||
| 2 | 243297613 | Ice Maker (Replaces: 243297606) |
|
Immediately | $ 130.73 | ||||
| 21 | 5303918810 | Thermostat (Replaces: 808113301) |
|
Immediately | $ 48.88 | ||||
| 23 | 242094603 | Evaporator |
|
$ 153.41 | |||||
| 24 | 242094802 | Heater-defrost |
|
Immediately | $ 126.58 | ||||
| 30 | 242100402 | Housing Assembly |
|
$ 166.16 | |||||
| 33 | 242094401 | Housing-evaporator |
|
$ 6.39 | |||||
| 55 | 242252702 | Valve |
|
Immediately | $ 147.46 | ||||
| 65 | 808462601 | Cover |
|
Immediately | $ 40.95 | ||||
| 68 | 242095002 | Cover |
|
$ 105.36 | |||||
| NI | 241806601 | Connector-water (Replaces: 242103001) |
|
Immediately | $ 78.40 | ||||
| NI | 5303918446 | Heat Exchanger |
|
$ 446.51 | |||||
| NI | 240396801 | Clamp |
|
$ 21.26 | |||||
| NI | 241503901 | Connector-water |
|
$ 56.91 | |||||
| NIA | 241695906 | Screw |
|
$ 21.26 | |||||
| NIA | 218709101 | Screw |
|
$ 7.09 | |||||
| NIA | 5303918571 | Tube-water (Replaces: 241844403) |
|
$ 182.49 | |||||
| NIA | 242096001 | Insulation |
|
$ 21.91 | |||||
| NIA | 215688131 | Tape |
|
- | |||||
| NIB | 5303918784 | Gasket (Replaces: 242124801) |
|
Immediately | $ 136.39 | ||||
| NIB | 5303918784 | Gasket-evap Housing (Replaces: 242095401) |
|
Immediately | $ 136.39 | ||||
| NIB | 240363602 | Screw-shoulder |
|
$ 15.17 | |||||
| NIB | 241920106 | Tube-water (Replaces: 241920104) |
|
Immediately | $ 67.41 | ||||
| NIC | 241964707 | Tube-water |
|
Immediately | $ 20.48 | ||||
| NIC | 242095402 | Gasket-evap Housing |
|
- | |||||
| NIC | 5303918784 | Gasket (Replaces: 242124802) |
|
Immediately | $ 136.39 | ||||
| NID | 242095403 | Gasket-evap Housing |
|
- | |||||
| NID | 5303918784 | Gasket (Replaces: 242146001) |
|
Immediately | $ 136.39 | ||||
| NID | 241965907 | Tube-water |
|
$ 23.59 | |||||
| NIE | 5303918784 | Gasket-evap Housing (Replaces: 242095404) |
|
Immediately | $ 136.39 | ||||
| NIE | 242200102 | Clip |
|
$ 11.81 | |||||
| NIF | 242095405 | Gasket-evap Housing |
|
- | |||||
| NIF | 242220112 | Tube-water |
|
$ 22.05 | |||||
| NIG | 242220113 | Tube-water |
|
$ 18.44 | |||||
| NIG | 242095408 | Gasket-evap Housing |
|
- | |||||
| NIH | 242095425 | Gasket-evap Housing (Replaces: 242095409) |
|
$ 11.46 |
