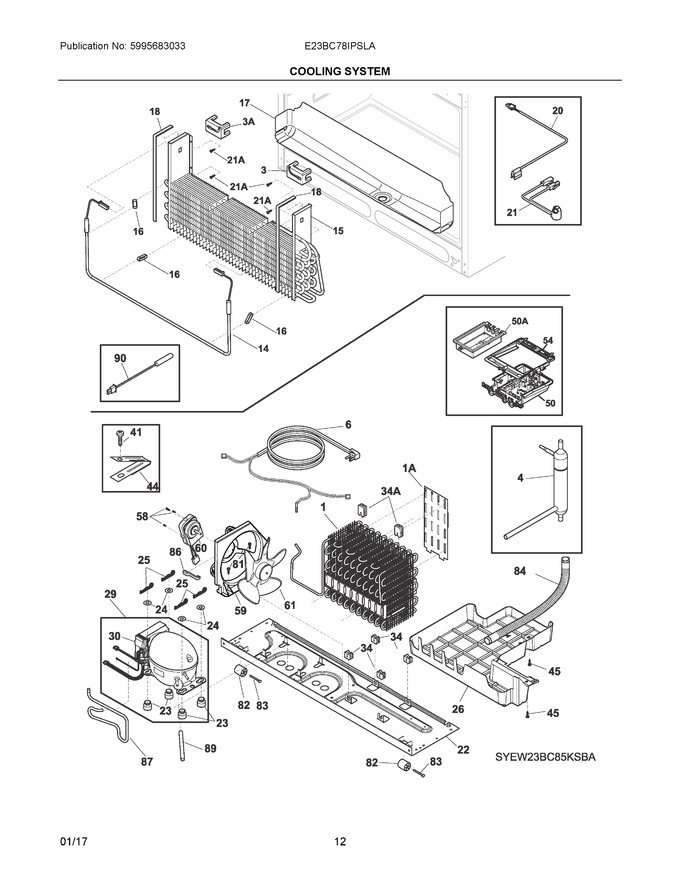

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 241862903 | Condenser |
|
$ 145.69 | |||||
| 3 | 241838401 | Block-evap Coil |
|
$ 22.75 | |||||
| 4 | 5303305677 | Dryer-filter (Replaces: 242047603) |
|
Immediately | $ 35.19 | ||||
| 6 | 241516904 | Cord-service (Replaces: 241516901) |
|
Immediately | $ 42.98 | ||||
| 14 | 5303918410 | Defrost Heater Kit |
|
Immediately | $ 137.01 | ||||
| 15 | 5303918569 | Evaporator Kit |
|
Immediately | $ 300.98 | ||||
| 16 | 5308000110 | Strap-evap/heater |
|
Immediately | $ 66.47 | ||||
| 17 | 241791201 | Trough-drain |
|
$ 121.28 | |||||
| 18 | 241860131 | Gasket (Replaces: 241860101) |
|
Immediately | $ 6.16 | ||||
| 20 | 808137001 | Thermistor |
|
Immediately | $ 38.58 | ||||
| 21 | 5304521781 | Thermostat (Replaces: 808062701) |
|
Immediately | $ 46.92 | ||||
| 22 | 241602112 | Base-compressor |
|
$ 308.70 | |||||
| 23 | 218513300 | Grommet-compr Mtg |
|
$ 47.25 | |||||
| 24 | 241812301 | Washer-compr Mtg |
|
$ 14.32 | |||||
| 25 | 242037702 | Clip-spring |
|
$ 9.45 | |||||
| 26 | 241920608 | Pan-defrost (Replaces: 241920604) |
|
$ 156.05 | |||||
| 29 | 5304475104 | Compressor (Replaces: 242104102) |
|
$ 916.91 | |||||
| 30 | 5304512686 | Invertor (Replaces: 242104302) |
|
Immediately | $ 491.47 | ||||
| 34 | 241929901 | Grommet-cond Mtg |
|
$ 10.24 | |||||
| 41 | 240555002 | Screw-#8-32 X 3/8 |
|
Immediately | $ 14.96 | ||||
| 44 | 215174700 | Clamp-service Cord |
|
- | |||||
| 45 | 5304455650 | Screw |
|
$ 15.75 | |||||
| 50 | 5304499080 | Board-main Power |
|
Immediately | $ 303.98 | ||||
| 54 | 807854301 | Support |
|
$ 45.36 | |||||
| 58 | 240569201 | Screw |
|
- | |||||
| 59 | 241946106 | Shroud-cond Fan |
|
$ 50.40 | |||||
| 60 | 242018301 | Motor-condenser Fan |
|
Immediately | $ 153.95 | ||||
| 61 | 241639502 | Blade-condenser Fan (Replaces: 241639501) |
|
Immediately | $ 24.43 | ||||
| 81 | 240359403 | Screw-fan Shroud |
|
$ 4.21 | |||||
| 82 | 240335202 | Roller |
|
$ 23.63 | |||||
| 83 | 5304455655 | Rivet |
|
Immediately | $ 39.27 | ||||
| 84 | 241830904 | Tube-drain |
|
Immediately | $ 25.99 | ||||
| 86 | 240409302 | Spacer-cond Tube |
|
$ 74.99 | |||||
| 87 | 241871501 | Tube-connector |
|
$ 42.53 | |||||
| 89 | 5303918910 | Tube-process (Replaces: 215346900) |
|
- | |||||
| 90 | 240597220 | Sensor (Replaces: 240597203) |
|
Immediately | $ 5.73 | ||||
| 1A | 241987301 | Deflector-air |
|
$ 29.93 | |||||
| 21A | 218362501 | Screw |
|
$ 13.39 | |||||
| 34A | 241929902 | Grommet-cond Mtg |
|
$ 10.24 | |||||
| 3A | 241838402 | Block-evap Coil |
|
$ 22.05 | |||||
| 50AA | 241891611 | Board-main |
|
$ 283.45 | |||||
| NI | 5303918416 | Thermistor Kit |
|
$ 105.16 | |||||
| NI | 3205266 | Edge Protector |
|
$ 88.99 | |||||
| NI | 5303918446 | Heat Exchanger |
|
$ 446.51 | |||||
| NI | 218515401 | Clip-grille |
|
$ 19.69 | |||||
| NI | 241947701 | Spacer |
|
$ 111.23 | |||||
| NI | 241510904 | Harness-dispenser |
|
$ 67.73 | |||||
| NI | 5303918445 | Heat Exchanger Kit |
|
$ 421.58 | |||||
| NIA | 242036801 | Clip-tube |
|
$ 107.10 | |||||
| NIA | 240346701 | Tape-foam Seal |
|
$ 33.08 | |||||
| NIA | 241852501 | Clip |
|
$ 17.33 | |||||
| NIA | 808165201 | Harness |
|
$ 212.34 | |||||
| NIA | 218252201 | Screw |
|
Immediately | $ 15.75 |
