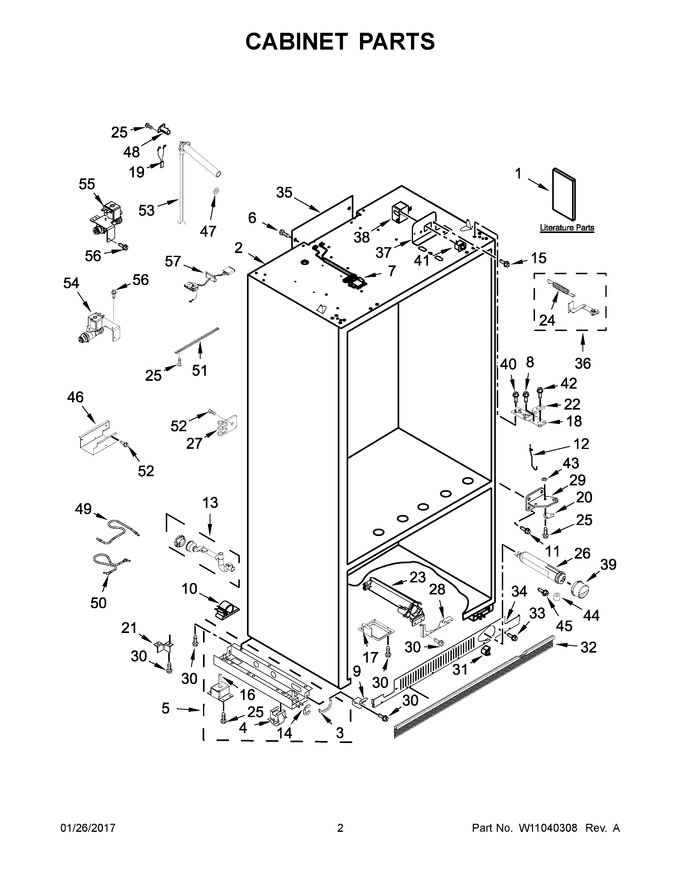

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10721179 | Use And Care Guide |
|
- | |||||
| 2 | N/P | Cabinet (not Serviced) |
|
- | |||||
| 3 | 2307584 | Grommet, Crossover Tube |
|
$ 22.29 | |||||
| 4 | WPW10138054 | Assembly, Roller (Replaces: W10138054) |
|
$ 43.18 | |||||
| 5 | W10860229 | Assembly, Support Base (left Hand) (Replaces: W10279275) |
|
$ 363.65 | |||||
| 6 | WP1163283 | Screw (Replaces: 1163283) |
|
$ 7.19 | |||||
| 7 | W10745694 | Assembly, Top Switch Jumper Wire |
|
$ 119.62 | |||||
| 8 | WP8281164 | Screw (stainless) (Replaces: 8281164) |
|
$ 10.79 | |||||
| 9 | W10839844 | Bracket, Grill Mounting (Replaces: 2307640) |
|
$ 41.20 | |||||
| 10 | W10663352 | Clip |
|
$ 20.87 | |||||
| 11 | W11474472 | Screw (Replaces: W10162602) |
|
Immediately | $ 8.02 | ||||
| 12 | W11690636 | Line, Water (Replaces: W10577944) |
|
$ 124.32 | |||||
| 13 | W11291510 | Assembly, Drain Tube (Replaces: W10702350) |
|
$ 73.30 | |||||
| 14 | 2006841 | Ring, Retainer |
|
$ 88.25 | |||||
| 15 | WP965173 | Screw (Replaces: 487415) |
|
Immediately | $ 10.72 | ||||
| 16 | 2005032 | Leveler, Adjustable |
|
Immediately | $ 190.54 | ||||
| 17 | 2318189 | Tray, Filter Drip |
|
$ 141.65 | |||||
| 18 | W11218690 | Hinge, Door (top) (Replaces: 2316759) |
|
Immediately | $ 74.56 | ||||
| 19 | W10482373 | Assembly, Fill Tube Heater Wire |
|
$ 119.14 | |||||
| 20 | WP2004994 | Lock, Bushing (Replaces: 2004994) |
|
Immediately | $ 7.96 | ||||
| 21 | 2006617 | Bracket, Base Support (rear) |
|
- | |||||
| 22 | W11403572 | Stop, Door (Replaces: W10752868) |
|
Immediately | $ 67.12 | ||||
| 23 | WPW10121140 | Housing, Water Filter (Replaces: W10121140) |
|
Immediately | $ 171.96 | ||||
| 24 | W11805224 | Spring, Door Closure (green) (Replaces: 2221242) |
|
- | |||||
| 25 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.02 | |||||
| 26 | EDR3RXD1B | Filter, Water (Replaces: W10121146) |
|
Immediately | $ 49.99 | ||||
| 27 | WP488366 | Clip, Water Tube (Replaces: 2208136) |
|
$ 11.18 | |||||
| 28 | W11755873 | Bracket, Filter (Replaces: W10674648) |
|
$ 76.50 | |||||
| 29 | W10337505 | Hinge, Door (center) |
|
Immediately | $ 134.97 | ||||
| 30 | WP8533928 | Screw (Replaces: 8533928) |
|
Immediately | $ 7.82 | ||||
| 31 | WP2260503B | Button, Water Filter (black) (Replaces: 2260503B) |
|
$ 72.78 | |||||
| 32 | WPW10188547 | Skirt, Grille (black) (Replaces: W10188547) |
|
Immediately | $ 157.41 | ||||
| 33 | WP489464 | Screw (Replaces: W10005050) |
|
Immediately | $ 7.83 | ||||
| 34 | W11739145 | Grille, Bottom (Replaces: W10189196) |
|
Immediately | $ 199.12 | ||||
| 35 | 2215612 | Cover, Air Duct |
|
- | |||||
| 36 | WPW10121046 | Assembly, Cam (left Hand) (Replaces: W10121046) |
|
Immediately | $ 79.72 | ||||
| 37 | W10741112 | Bracket, Switch (left Hand) |
|
$ 64.16 | |||||
| 38 | 2215938 | Cover, Switch |
|
$ 90.27 | |||||
| 39 | W11238395 | Cap, Water Filter (black) (Replaces: W10797527) |
|
Immediately | $ 48.27 | ||||
| 40 | W11721628 | Screw (Replaces: 8533913) |
|
Immediately | $ 14.08 | ||||
| 41 | W11384469 | Switch, Rocker Arm (Replaces: 1118894) |
|
Immediately | $ 37.23 | ||||
| 42 | W11227370 | Screw (Replaces: W10005070) |
|
Immediately | $ 14.20 | ||||
| 43 | 2314023 | Bushing, Hinge |
|
$ 46.35 | |||||
| 44 | 2005433 | Spacer |
|
$ 22.22 | |||||
| 45 | WP9741232 | Screw (Replaces: 9741232) |
|
Immediately | $ 5.07 | ||||
| 46 | W10619291 | Shield, Valve Electrical |
|
- | |||||
| 47 | WP1106508 | Gasket, Seal (Replaces: 1106508) |
|
Immediately | $ 9.93 | ||||
| 48 | WP2221240 | Heater, Fill Tube (Replaces: 2221240) |
|
$ 196.74 | |||||
| 49 | W10619899 | Tube, Filter Inlet |
|
$ 44.04 | |||||
| 50 | W10635851 | Tube, Filter Outlet |
|
$ 84.35 | |||||
| 51 | 2320559 | Support, Valve |
|
$ 84.56 | |||||
| 52 | WP489464 | Screw (Replaces: W10001250) |
|
Immediately | $ 7.83 | ||||
| 53 | 2317847 | Assembly, Water Inlet Tube |
|
$ 82.24 | |||||
| 54 | W11225845 | Valve, Solenoid (Replaces: W10574769) |
|
Immediately | $ 120.60 | ||||
| 55 | W11246413 | Valve, Isolation (no Flow Washer) (Replaces: W10578757) |
|
Immediately | $ 132.98 | ||||
| 56 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 7.86 | ||||
| 57 | W10565837 | Assembly, Water Valve Wire |
|
$ 82.28 | |||||
| 1A | W10712798 | Energy Guide |
|
- | |||||
| 1B | W10906504 | Wiring Diagram |
|
- | |||||
| 1C | W10721177 | Installation Instructions |
|
- | |||||
| 1D | W10896706 | Tech Sheet (english) |
|
- | |||||
| 1E | W10896708 | Tech Sheet (french) |
|
- | |||||
| 36A | WP2307857 | Assembly, Cam (right Hand) (Replaces: 2307857) |
|
Immediately | $ 75.52 | ||||
| 37A | W10741111 | Bracket, Switch (right Hand) |
|
$ 64.16 | |||||
| 5A | W10860448 | Assembly, Support Base (right Hand) (Replaces: W10138423) |
|
Immediately | $ 364.76 |
