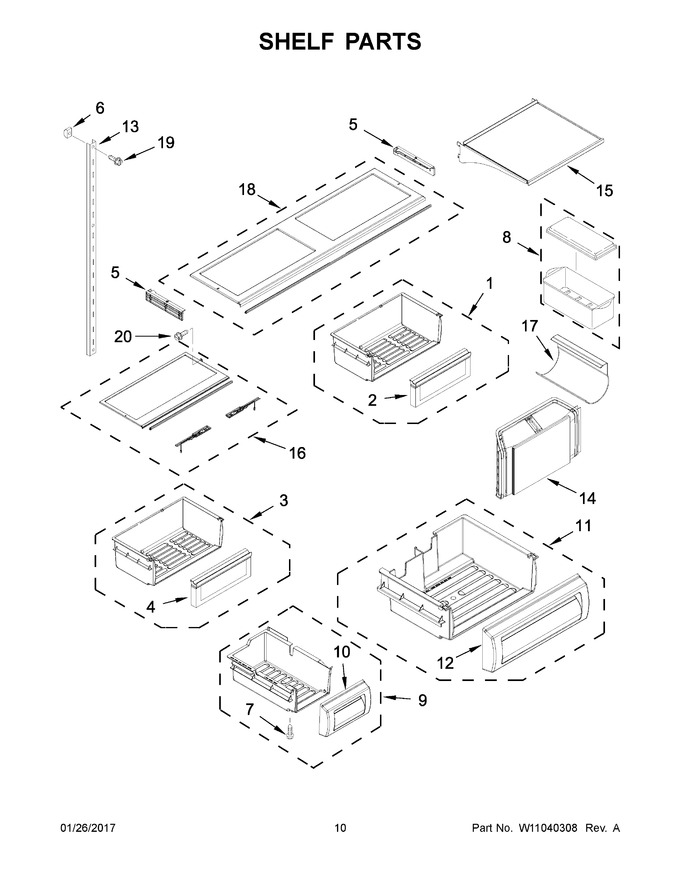

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10758316		Assembly, Crisper Pan				$ 385.02
2	W10707745		Assembly, Crisper Pan Front		Appelez-nous	-
3	W10758319		Assembly, Deli Pan				$ 329.82
4	W10758319		Assembly, Deli Pan Front   (Replaces: W10707747)				$ 329.82
5	W10711391		Support, Crisper Cover Left Hand (white)		Appelez-nous	-
6	520965		Support, Ladder				$ 31.35
7	WP488787		Screw   (Replaces: 488886)				$ 11.26
8	WP2221071A		Assembly, Egg Bin   (Replaces: 2221071)				$ 25.79
9	W10733946		Assembly, Ice Pan				$ 300.38
10	2306175		Assembly, Ice Pan Front				$ 95.96
11	2327512		Assembly, Freezer Pan		Appelez-nous	-
12	2268383		Assembly, Freezer Pan Front		Appelez-nous	-
13	W10661516		Ladder, Shelf Side (white)		Appelez-nous	-
14	W10593207		Assembly, Produce Preserver		Appelez-nous	-
15	W10707750		Assembly, Shelf (fixed)				$ 348.52
16	WPW10707733		Assembly, Deli Bin Cover   (Replaces: W10707733)				$ 333.85
17	W10701859		Rack, Wine				$ 21.53
18	WPW10707806		Cover, Crisper   (Replaces: W10707806)				$ 249.66
19	W10808292		Screw		Appelez-nous	-
20	WP488729		Screw (stainless)   (Replaces: 487539)			Immediately	$ 8.28
13A	W10661518		Ladder, Shelf Center (white)		Appelez-nous	-
5A	W10711390		Support, Crisper Cover Right Hand (white)		Appelez-nous	-
