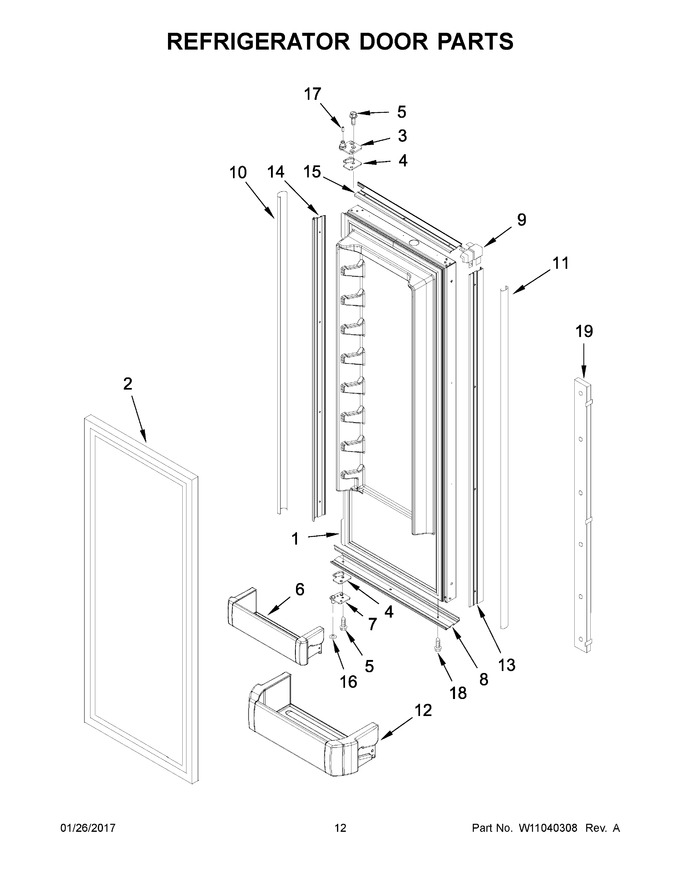

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10782300		Door, Refrigerator (left Hand)   (Replaces: W10707739)				$ 1,125.87
2	W10871887		Gasket, Door (grey)   (Replaces: W10629728)				$ 321.38
3	W11673500		Assembly, Hinge (top)   (Replaces: W10485980)			Immediately	$ 108.07
4	W11673500		Spacer, Door Hinge Bottom   (Replaces: 2316804)			Immediately	$ 108.07
5	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 8.63
6	W10707724		Bin, Door (shallow)		Appelez-nous	-
7	W10273369		Assembly, Bottom Hinge (left Hand)				$ 41.21
8	W10570040		Trim, Door (bottom)		Appelez-nous	-
9	2207457		Trim, Corner				$ 57.12
10	2266942S		Cover, Trim (hinge Side)				$ 97.89
11	2209084S		Cover, Trim (handle Side)				$ 136.73
12	W10707726		Bin, Door (gallon)				$ 79.25
13	2314030S		Trim, Door (handle Side)				$ 279.02
14	2309031S		Trim, Door (hinge Side)				$ 402.43
15	W10570038		Trim, Door (top)		Appelez-nous	-
16	WP2006346		Washer, Extension Arm   (Replaces: 2006346)			Immediately	$ 11.76
17	W11500952		Bushing, Door Stop   (Replaces: 2316760)			Immediately	$ 34.74
18	WP8281250		Screw (stainless)   (Replaces: 8281250)				$ 11.42
19	W10732107		Assembly, Mullion				$ 294.19
1A	W10782301		Door, Refrigerator (right Hand)   (Replaces: W10707741)				$ 1,125.45
7A	W10273367		Assembly, Bottom Hinge (right Hand)				$ 41.27

    View Diagram in Separate Window       Print Part List
