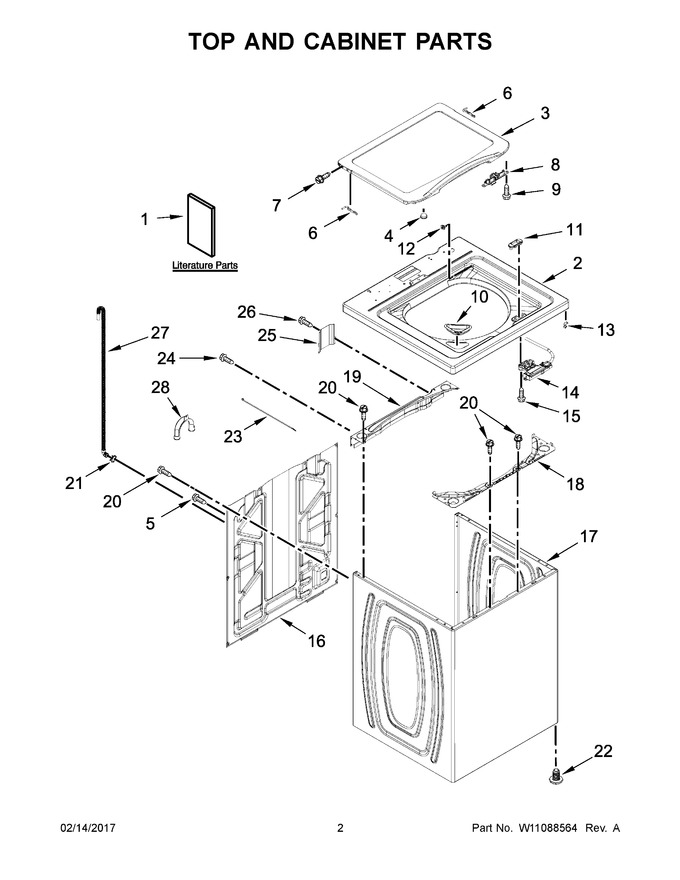

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10693226 | Installation Instructions |
|
- | |||||
| 2 | W10251325 | Top (white) |
|
$ 139.61 | |||||
| 3 | W10551267 | Assembly, Lid And Bumper (white) |
|
- | |||||
| 4 | W10181289 | Bumper, Lid |
|
- | |||||
| 5 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 7.86 | ||||
| 6 | WP91770 | Hinge, Lid (Replaces: 91770) |
|
$ 27.45 | |||||
| 7 | WPW10119828 | Screw (Replaces: W10119872) |
|
Immediately | $ 7.19 | ||||
| 8 | W10581478 | Strike Assembly |
|
- | |||||
| 9 | WPW10273971 | Screw (Replaces: W10273971) |
|
Immediately | $ 7.19 | ||||
| 10 | WPW10192089 | Dispenser, Bleach (Replaces: W10192089) |
|
Immediately | $ 7.96 | ||||
| 11 | WPW10392041 | Bezel, Lid Lock (white) (Replaces: W10392041) |
|
Immediately | $ 7.62 | ||||
| 12 | WP21258 | Bearing, Lid Hinge (Replaces: 21258) |
|
Immediately | $ 7.63 | ||||
| 13 | WP90016 | Clip, Harness (Replaces: 90016) |
|
$ 11.32 | |||||
| 14 | W10404050 | Latch, Lid Lock Assembly (Replaces: W10744659) |
|
Immediately | $ 81.88 | ||||
| 15 | WP8281163 | Screw (stainless) (Replaces: 8281163) |
|
Immediately | $ 10.19 | ||||
| 16 | W11486091 | Panel, Rear (Replaces: W10250884) |
|
Immediately | $ 312.11 | ||||
| 17 | W10596395 | Cabinet (white) (Replaces: W10478060) |
|
$ 458.85 | |||||
| 18 | W11695476 | Brace, Cabinet Top - Front (Replaces: W10215098) |
|
$ 75.99 | |||||
| 19 | W11712680 | Brace, Cabinet Top - Rear (Replaces: W10512626) |
|
$ 98.93 | |||||
| 20 | WP489069 | Screw (Replaces: 1157158) |
|
Immediately | $ 7.86 | ||||
| 21 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 8.52 | ||||
| 22 | W11213957 | Foot Assembly, Leveling (Replaces: W10556332) |
|
Immediately | $ 13.56 | ||||
| 23 | WPW10339879 | Tie, Cable (Replaces: W10339879) |
|
$ 7.90 | |||||
| 24 | WP489128 | Screw (Replaces: W10142728) |
|
$ 10.88 | |||||
| 25 | W10676061 | Cover, Harness |
|
$ 35.02 | |||||
| 26 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 7.76 | ||||
| 27 | W11244231 | Hose, Outer Drain Assembly (Replaces: W10221546) |
|
Immediately | $ 32.07 | ||||
| 28 | WPW10280024 | U-bend, Drain Hose (Replaces: W10280024) |
|
$ 79.53 | |||||
| 1A | W10802774 | Owners Manual |
|
- | |||||
| 1B | W10677676 | Tech Sheet |
|
- | |||||
| 1C | W10802004 | Energy Guide |
|
- |
