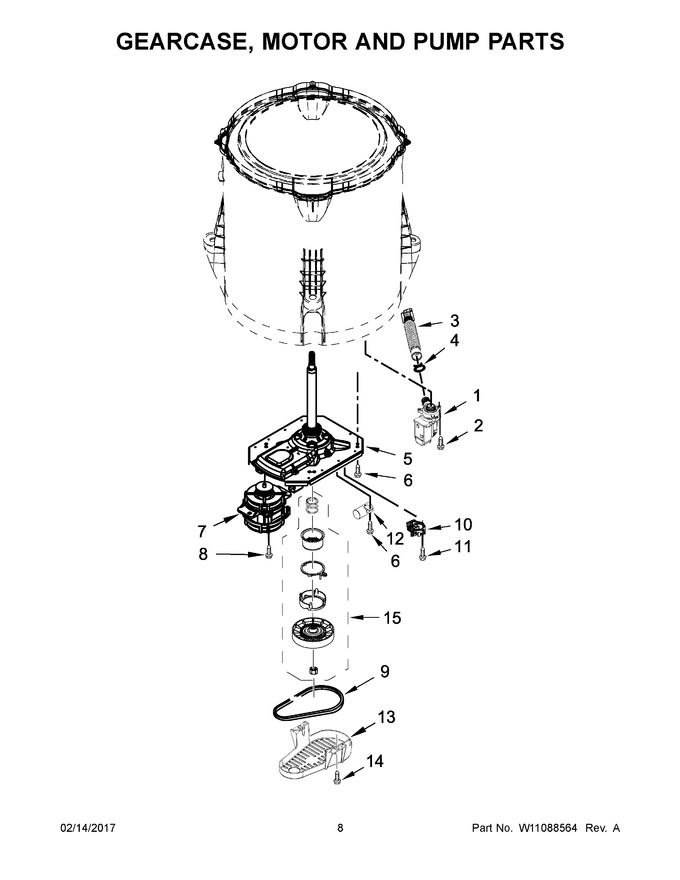

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10465543 | Pump Assembly, Drain (Replaces: W10465543) |
|
$ 321.38 | |||||
| 2 | WPW10004910 | Screw (Replaces: W10004910) |
|
$ 8.39 | |||||
| 3 | W10899966 | Hose, Inner Drain Assembly (Replaces: W10763078) |
|
Immediately | $ 35.78 | ||||
| 4 | WP285655 | Clamp, Hose (Replaces: 8317496) |
|
Immediately | $ 8.81 | ||||
| 5 | W11454372 | Gearcase Assembly (Replaces: W10795113) |
|
Immediately | $ 299.80 | ||||
| 6 | WPW10249633 | Screw (Replaces: W10249633) |
|
Immediately | $ 7.55 | ||||
| 7 | W10832724 | Motor, Drive (Replaces: W10677719) |
|
Immediately | $ 333.55 | ||||
| 8 | W11685857 | Screw (Replaces: W10094780) |
|
$ 14.81 | |||||
| 9 | W11239857 | Belt, Drive (Replaces: W10808317) |
|
Immediately | $ 52.43 | ||||
| 10 | W10913953 | Actuator- Shift (Replaces: W10815026) |
|
Immediately | $ 69.79 | ||||
| 11 | W11596033 | Screw (Replaces: 9741052) |
|
$ 14.23 | |||||
| 12 | W11395618 | Capacitor, Motor Run (Replaces: W10625046) |
|
Immediately | $ 108.62 | ||||
| 13 | W11778479 | Shield, Pulley Cover (Replaces: W11046391) |
|
$ 68.17 | |||||
| 14 | WP273556 | Screw (Replaces: 357640) |
|
Immediately | $ 8.43 | ||||
| 15 | W10721967 | Splutch Kit (60hz) |
|
Immediately | $ 55.68 |
