Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10789652 Panel, Console Appelez-nous -
2 WP8536939 Clip, Spring   (Replaces: 8536939) In-Stock Immediately $ 8.20

3 WPW10520782 End Cap (left) (white)   (Replaces: W10520782) Special Order $ 64.69

4 WPW10520780 End Cap (right) (white)   (Replaces: W10520780) Special Order $ 64.34

5 WP8312709 Clip, Console   (Replaces: 8312709) In-Stock Immediately $ 16.35

6 W10802387 Control Unit Assembly, Machine & Motor Special Order $ 442.80

7 W10552335 Panel, Console Rear Cover Special Order $ 343.17

8 WP489069 Screw   (Replaces: 1157158) In-Stock Immediately $ 8.40

9 WPW10285518 Switch, Rotary Encoder (5 Position)   (Replaces: W10285518) In-Stock Immediately $ 117.42

10 WP90767 Screw   (Replaces: 90767) In-Stock Immediately $ 8.25

11 WPW10525194 Cord, Power   (Replaces: W10525194) Special Order $ 163.41

12 W10846509 Screw   (Replaces: 3400076) In-Stock Immediately $ 8.20

13 W11501455 Knob, Timer (white/metallic)   (Replaces: W10576634) Special Order $ 45.78

14 W10576636 Assembly, Control Knob (white/metallic) Appelez-nous -
15 WPW10285512 Switch, Rotary Encoder (4 Position)   (Replaces: W10285512) In-Stock Immediately $ 190.47

16 W11211519 Harness, Upper   (Replaces: W10694680) Special Order $ 184.80

17 WPW10683653 Inlet Assembly, Water   (Replaces: W10683653) Special Order $ 216.49

18 W10876654 Harness, Valve   (Replaces: W10684972) Special Order $ 194.92

19 W11084340 Grommet, Push To Start   (Replaces: W10598040) Special Order $ 73.85

20 285452A Washer, Filter   (Replaces: W10810281) In-Stock Immediately $ 9.69

21 WPW10285511 Switch, Rotary Encoder (2 Position)   (Replaces: W10285511) In-Stock Immediately $ 182.10

22 WPW10213953 Screw   (Replaces: W10213953) In-Stock Immediately $ 7.55

23 WP3400818 Screw   (Replaces: 3400818) Special Order $ 8.81

24 WP89503 Hose, Water Inlet (cold)   (Replaces: W10194210) In-Stock Immediately $ 24.09

25 WP16123 Washer, Hose   (Replaces: W10242307) Special Order $ 8.16

24A WP89503 Hose, Water Inlet (hot)   (Replaces: W10194211) In-Stock Immediately $ 24.09

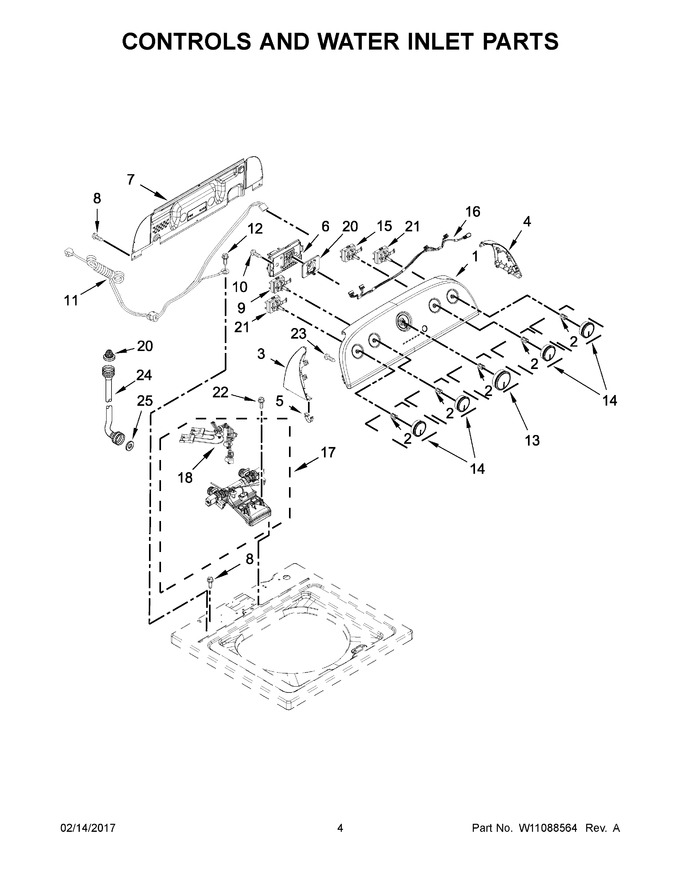

    View Diagram in Separate Window     Print Icon   Print Part List
