SELECT A DIAGRAM

01 - Cover Sheet

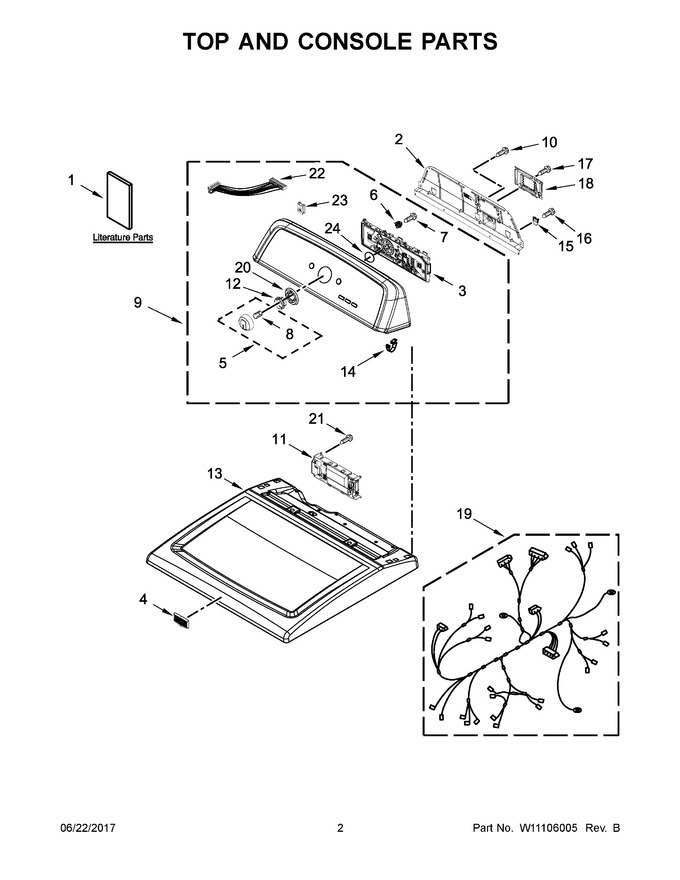

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11083790		Instructions, Installation		Appelez-nous	-
2	W10550615		Panel, Rear Console				$ 105.15
3	WPW10272634		Assembly, User Interface   (Replaces: W10272634)				$ 282.50
4	W10492808		Badge				$ 53.84
5	WPW10251381		Assembly, Control Knob (silver)   (Replaces: W10251381)				$ 52.77
6	W10274524		Tensioner, Fascia		Appelez-nous	-
7	W10853898		Screw   (Replaces: W10219342)			Immediately	$ 7.36
8	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.38
9	WPW10464793		Assembly, Console (white)   (Replaces: W10464793)				$ 350.28
10	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 7.43
11	W11107852		Control, Electronic   (Replaces: W11082414)		Appelez-nous	-
12	W10326923		Spacer, Knob		Appelez-nous	-
13	WPW10268730		Top (white)   (Replaces: W10268730)				$ 311.27
14	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 14.93
15	W10279552		Plug, Upper Rear Panel		Appelez-nous	-
16	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.45
17	WP90767		Screw   (Replaces: W10748311)			Immediately	$ 7.43
18	W10601020		Cover, Terminal Block		Appelez-nous	-
19	W10511243		Harness, Main		Appelez-nous	-
20	W10305134		Bezel, Cycle Trim				$ 23.73
21	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 7.43
22	W10285495		Cable, User Interface		Appelez-nous	-
23	W11213336		Nut, "u   (Replaces: W10298336)				$ 7.32
24	W10323092		Seal, User Interface		Appelez-nous	-
25	W10850756		Screw   (Replaces: W10773242)				$ 7.38
1A	W11083793		Guide, Use & Care		Appelez-nous	-
1B	W10524061		Tech Sheet		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
