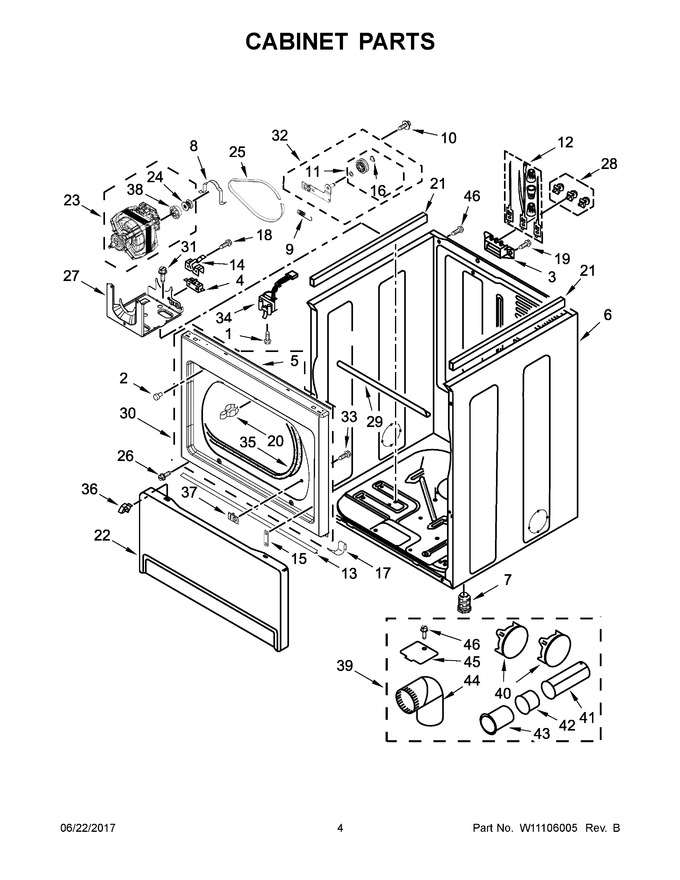

03 - Cabinet Parts
04 - Bulkhead Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3395530 | Screw (Replaces: 697773) |
|
$ 7.71 | |||||
| 2 | 693152 | Bumper |
|
$ 10.36 | |||||
| 3 | WP3397659 | Block, Terminal (Replaces: 3397659) |
|
$ 21.75 | |||||
| 4 | WP8318457 | Switch, Broken Belt (Replaces: 8318457) |
|
$ 39.77 | |||||
| 5 | W10312811 | Seal, Spill Guard |
|
$ 60.96 | |||||
| 6 | W11417441 | Cabinet (white) (Replaces: W10547697) |
|
$ 396.15 | |||||
| 7 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 7.70 | ||||
| 8 | WP660658 | Clamp, Motor (Replaces: 660658) |
|
$ 7.40 | |||||
| 9 | WPW10446781 | Spring, Idler (Replaces: W10446781) |
|
Immediately | $ 23.22 | ||||
| 10 | WP3389420 | Screw (Replaces: 3389420) |
|
$ 7.76 | |||||
| 11 | 279640 | Assembly, Pulley (Replaces: W10468057) |
|
Immediately | $ 29.26 | ||||
| 12 | 279318 | Terminal, Brass And Tinned (includes Terminal Block Screw Kit) |
|
Immediately | $ 95.44 | ||||
| 13 | W10576519 | Seal, Deflector |
|
- | |||||
| 14 | W10854043 | Lever, Switch (Replaces: W10083220) |
|
$ 27.41 | |||||
| 15 | W10191265 | Plug, Front Panel (white) |
|
$ 41.84 | |||||
| 16 | WPW10512946 | Washer, Tri Ring (Replaces: W10512946) |
|
Immediately | $ 8.71 | ||||
| 17 | WPW10291934 | Clip (Replaces: W10291934) |
|
$ 7.33 | |||||
| 18 | 3400934 | Assembly, Screw And Insulator |
|
- | |||||
| 19 | WP308685 | Screw (Replaces: 3393008) |
|
Immediately | $ 7.08 | ||||
| 20 | W11429589 | Strike, Door (Replaces: 3403431) |
|
Immediately | $ 18.89 | ||||
| 21 | W10336128 | Seal, Foam |
|
$ 13.57 | |||||
| 22 | WP3406797 | Toe Panel (includes Item. 2) (white) (Replaces: 697215) |
|
$ 225.23 | |||||
| 23 | W10489550 | Motor, Assembly 60 Hz. |
|
- | |||||
| 24 | W10837625 | Pulley, Motor (Replaces: 3389729) |
|
Immediately | $ 11.49 | ||||
| 25 | WPW10112954 | Belt, Drive (Replaces: W10112954) |
|
Immediately | $ 94.79 | ||||
| 26 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 27 | WP3387118 | Bracket, Motor (Replaces: 3387118) |
|
$ 126.24 | |||||
| 28 | 279393 | Screw Kit, Terminal Block |
|
Immediately | $ 50.09 | ||||
| 29 | W10236068 | Bracket, Cabinet |
|
$ 22.02 | |||||
| 30 | W10362983 | Panel, Upper Front (white) |
|
$ 257.83 | |||||
| 31 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 32 | W10837240 | Assembly, Idler (Replaces: W10547287) |
|
Immediately | $ 32.20 | ||||
| 33 | WP308685 | Screw (Replaces: 3357011) |
|
Immediately | $ 7.08 | ||||
| 34 | WPW10237959 | Switch, Door (Replaces: 3406109) |
|
Immediately | $ 56.37 | ||||
| 35 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 28.28 | ||||
| 36 | WP3388229 | Retainer (Replaces: 3388229) |
|
Immediately | $ 7.61 | ||||
| 37 | W10521429 | Cover, Strike (white) |
|
- | |||||
| 38 | WP3393657 | Restrainer, Belt (Replaces: 3393657) |
|
Immediately | $ 125.17 | ||||
| 39 | W10470674 | Dryer Exhaust Kit (for Side & Bottom Venting), 4- Way Vent Kit (Replaces: W10186596) |
|
Immediately | $ 76.75 | ||||
| 40 | WPW10404617 | Plug, Multivent (midnight Grey) (Replaces: W10404617) |
|
$ 68.02 | |||||
| 41 | WP8563749 | Pipe, Exhaust (long) (Replaces: 8563749) |
|
$ 83.92 | |||||
| 42 | WPW10331278 | Pipe, Exhaust (short) (Replaces: W10331278) |
|
$ 74.61 | |||||
| 43 | WP8563747 | Pipe, Exhaust (medium) (Replaces: 8563747) |
|
$ 86.36 | |||||
| 44 | WPW10416072 | Elbow (Replaces: 49026) |
|
$ 25.34 | |||||
| 45 | WPW10354249 | Plate, Cover (Replaces: W10354249) |
|
$ 8.47 | |||||
| 46 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.45 | ||||
| NI | 49621 | Foot, Optional (extended Length Package Of 2) (not Included) (Replaces: 279810) |
|
Immediately | $ 7.70 |
