01 - Cover Sheet
02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts

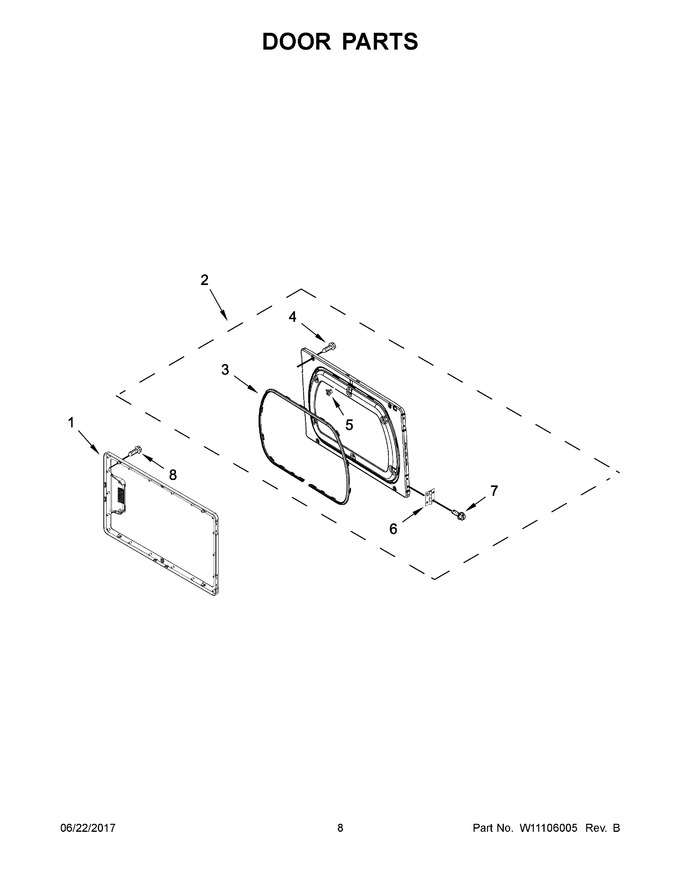

05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10284127 | Assembly, Outer Door (white) (Replaces: W10284127) |
|
$ 222.35 | |||||
| 2 | W11652037 | Assembly, Inner Door (white) (Replaces: W10513690) |
|
$ 208.90 | |||||
| 3 | WPW10354795 | Seal, Door (Replaces: W10354795) |
|
$ 130.12 | |||||
| 4 | WP3373329 | Screw (Replaces: 3393258) |
|
$ 8.52 | |||||
| 5 | 279570 | Assembly, Door Catch (Replaces: 690081) |
|
Immediately | $ 8.89 | ||||
| 6 | W10575696 | Assembly, Hinge & Pin (white) |
|
- | |||||
| 7 | WP488627 | Screw (Replaces: 342055) |
|
$ 8.11 | |||||
| 8 | WP8534022 | Screw (Replaces: 8534022) |
|
$ 8.37 |
