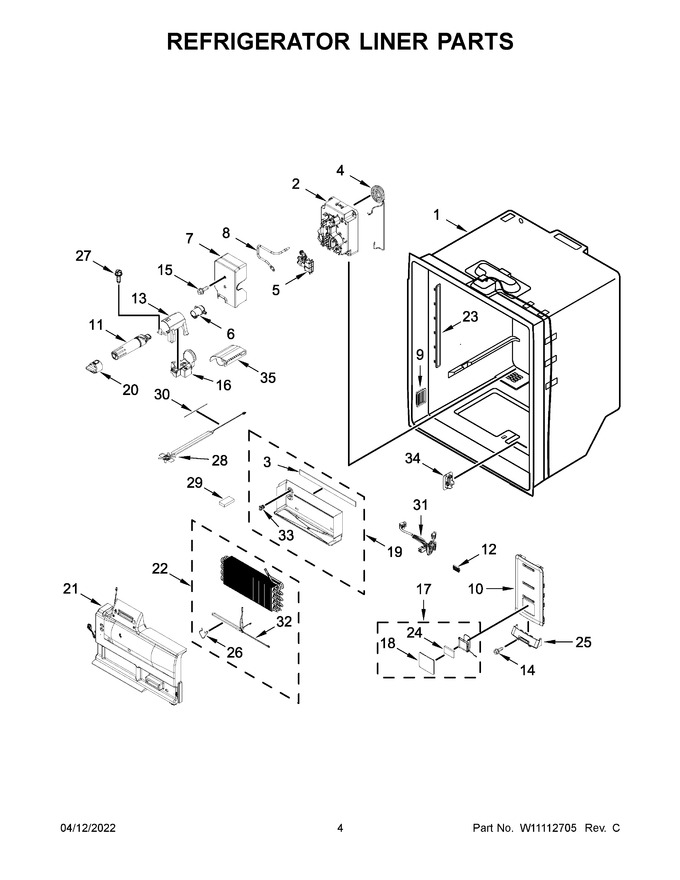

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | NP | Cabinet (not A Servicable Part) |
|
- | |||||
| 2 | W10708473 | Housing, Water Tank |
|
$ 107.56 | |||||
| 3 | W11159756 | Gasket, Heat Shield (Replaces: W10921470) |
|
- | |||||
| 4 | W11024082 | Reservoir, Water |
|
Immediately | $ 181.01 | ||||
| 5 | W11535162 | Valve, Dual Water (Replaces: W11490564) |
|
Immediately | $ 140.71 | ||||
| 6 | W11024083 | Housing, Water Filter |
|
Immediately | $ 220.12 | ||||
| 7 | W10900010 | Cover, Water Valve |
|
Immediately | $ 112.72 | ||||
| 8 | W11727946 | Tube, Water Filter (Replaces: W11517696) |
|
Immediately | $ 80.61 | ||||
| 9 | W10718061 | Cover, Cooling Duct |
|
$ 102.23 | |||||
| 10 | W11312192 | Cover, Tower (Replaces: W11259413) |
|
- | |||||
| 11 | EDR2RXD1B | Filter, Water (Replaces: W10680605) |
|
Immediately | $ 49.99 | ||||
| 12 | W10311524 | Filter, Air (Replaces: W10315189) |
|
Immediately | $ 14.34 | ||||
| 13 | W11189600 | Bracket, Filter (Replaces: W10708474) |
|
$ 74.42 | |||||
| 14 | W10119266 | Screw |
|
$ 12.71 | |||||
| 15 | WP67006908 | Screw (Replaces: 12990518) |
|
Immediately | $ 8.78 | ||||
| 16 | W11348541 | Insulation, Under Filter |
|
$ 35.44 | |||||
| 17 | W11803610 | Assembly, Air Filter (Replaces: W10766881) |
|
$ 86.68 | |||||
| 18 | W10704470 | Cover, Air Filter |
|
- | |||||
| 19 | W11090564 | Assembly, Heat Shield |
|
$ 70.51 | |||||
| 20 | W11189114 | Cap, Filter (Replaces: W10719253) |
|
Immediately | $ 46.67 | ||||
| 21 | W11114722 | Assembly, Evaporator Cover (includes Fan Motor, Wire Assembly And Thermistor) (Replaces: W10890071) |
|
- | |||||
| 22 | W11291123 | Assembly, Evaporator (Replaces: W11130330) |
|
Immediately | $ 366.49 | ||||
| 23 | W11214258 | Assembly, Side Lamp (Replaces: W11391988) |
|
$ 188.23 | |||||
| 24 | W10673897 | Insulator, Foam |
|
$ 32.53 | |||||
| 25 | W10716179 | Base, Tower Cover |
|
- | |||||
| 26 | W10909562 | Clip, Evaporator Heater |
|
$ 24.54 | |||||
| 27 | WP489474 | Screw (Replaces: 12990501) |
|
Immediately | $ 8.55 | ||||
| 28 | W11024084 | Heater, Filter (Replaces: W10877761) |
|
Immediately | $ 140.89 | ||||
| 29 | W10818463 | Gasket, Evaporator Air Dam |
|
$ 27.75 | |||||
| 30 | W10910632 | Gasket, Sealing (Replaces: W10901792) |
|
- | |||||
| 31 | W11396537 | Assembly, Manifold Jumper Wire (Replaces: W10906507) |
|
$ 132.15 | |||||
| 32 | W11291124 | Heater, Defrost (Replaces: W11127384) |
|
Immediately | $ 158.89 | ||||
| 33 | 10623002 | Clip, Evaporator |
|
$ 12.11 | |||||
| 34 | W10916310 | Vent, Duct |
|
- | |||||
| 35 | W11307147 | Cover, Filter |
|
$ 103.10 | |||||
| NI | W10871610 | Assembly, Valve Wire |
|
$ 148.05 | |||||
| NI | NP | Cabinet (not A Servicable Part) |
|
- |
