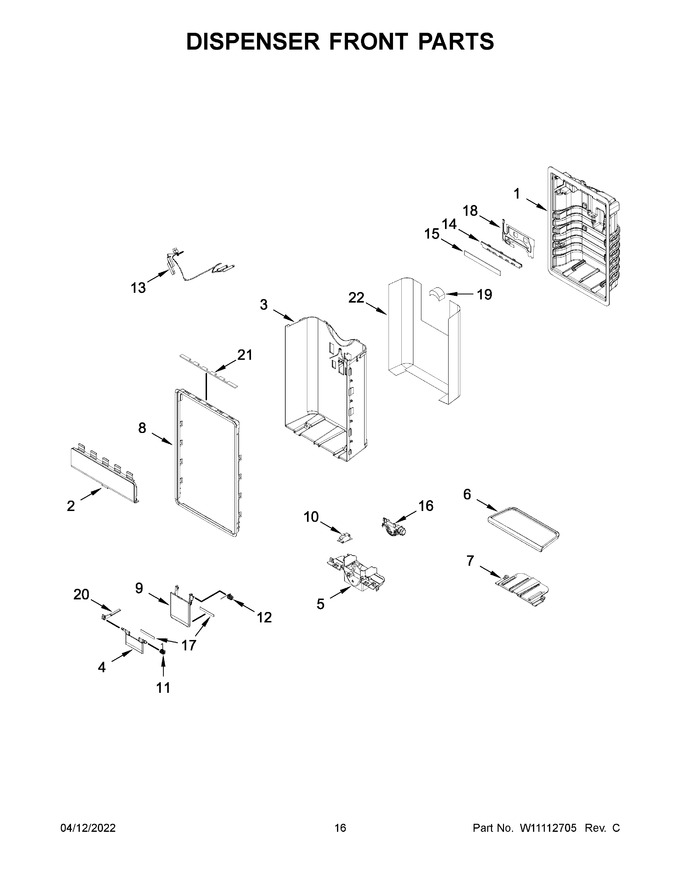

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | NP | Cabinet (not A Servicable Part) |
|
- | |||||
| 2 | W11533212 | Assembly, User Interface (Replaces: W11293308) |
|
$ 513.05 | |||||
| 3 | W11085969 | Wall, Dispenser False (black) |
|
- | |||||
| 4 | W11102429 | Paddle, Water Dispenser (black) |
|
- | |||||
| 5 | W11086000 | Seperator (black) |
|
$ 21.46 | |||||
| 6 | W11209885 | Tray, Drip (chrome) (Replaces: W10757513) |
|
$ 62.40 | |||||
| 7 | W11026725 | Tray, Dispenser Slide (black) |
|
- | |||||
| 8 | W10757512 | Ring, Trim (chrome) |
|
- | |||||
| 9 | W11102448 | Paddle, Ice Dispenser (black) |
|
- | |||||
| 10 | W11087492 | Switch, Limit (Replaces: W10403752) |
|
Immediately | $ 39.29 | ||||
| 11 | W11778261 | Spring, Torsion (Replaces: W10672578) |
|
Immediately | $ 18.00 | ||||
| 12 | W11109505 | Spring, Torsion (Replaces: W10663682) |
|
Immediately | $ 26.03 | ||||
| 13 | W10704135 | Assembly, Paddle Jumper Wire |
|
$ 41.14 | |||||
| 14 | W10757499 | Bracket, User Interface Adapter |
|
$ 72.08 | |||||
| 15 | W10696713 | Gasket, User Interface Adapter |
|
$ 54.93 | |||||
| 16 | W11189145 | Assembly, Ice Door Motor Bracket (Replaces: W10696704) |
|
Immediately | $ 154.56 | ||||
| 17 | W10663699 | Pad, Sound |
|
$ 28.15 | |||||
| 18 | W10752689 | Heater, Dispenser |
|
Immediately | $ 128.09 | ||||
| 19 | W10882291 | Gasket, Foam |
|
$ 27.76 | |||||
| 20 | W10680037 | Arm, Water Paddle |
|
$ 88.87 | |||||
| 21 | W10831765 | Gasket, Dispenser Trim |
|
- | |||||
| 22 | W10864907 | Foil, Dispenser Well |
|
- | |||||
| 3A | W10717109 | Wall, Dispenser False (grey) |
|
- | |||||
| 4A | W10678156 | Paddle, Water Dispenser (silver) |
|
$ 92.19 | |||||
| 5A | W11244274 | Seperator (grey) (Replaces: W10672579) |
|
$ 164.75 | |||||
| 7A | W10772527 | Tray, Dispenser Slide (grey) |
|
- | |||||
| 9A | W10672575 | Paddle, Ice Dispenser (silver) |
|
Immediately | $ 92.67 |
