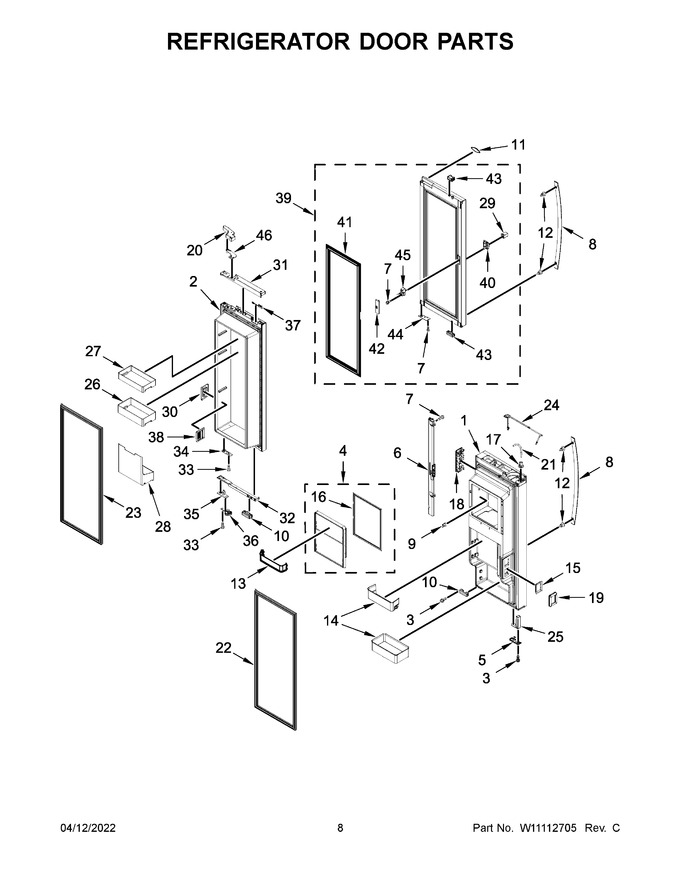

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW11039240 | Door, Refrigerator Left Hand (black Stainless (also Order Item # 18)) (Replaces: W11039240) |
|
$ 1,282.23 | |||||
| 2 | W11044416 | Door, Refrigerator Right Hand (black Stainless) |
|
- | |||||
| 3 | WPW10238319 | Screw (Replaces: W10238319) |
|
$ 7.98 | |||||
| 4 | W11594925 | Assembly, Ice Door (Replaces: W11554921) |
|
$ 169.00 | |||||
| 5 | W11243377 | Bracket, Door Stop (Replaces: W10763415) |
|
Immediately | $ 76.11 | ||||
| 6 | W11656921 | Mullion, Door (black) (Replaces: W11034029) |
|
$ 135.83 | |||||
| 7 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.72 | |||||
| 8 | W11043764 | Handle, Door (black Stainless) (Replaces: W10917722) |
|
$ 190.44 | |||||
| 9 | W11123943 | Switch, Rocker Arm (Replaces: W11032814) |
|
$ 36.66 | |||||
| 10 | W10407187 | Bumper, Door (black) |
|
$ 48.34 | |||||
| 11 | W11223753 | Badge (Replaces: W10884773) |
|
Immediately | $ 87.26 | ||||
| 12 | W11449276 | Screw (Replaces: W11328753) |
|
Immediately | $ 15.45 | ||||
| 13 | W11188797 | Trivet, Ice Compartment Door (Replaces: W10697307) |
|
$ 105.76 | |||||
| 14 | W11099662 | Bin, Door (medium) (Replaces: W10883264) |
|
$ 112.84 | |||||
| 15 | W10720065 | Retainer, Door Duct |
|
$ 52.97 | |||||
| 16 | W11625084 | Gasket, Ice Door (Replaces: W10853439) |
|
$ 68.73 | |||||
| 17 | W11315302 | Clip, Tube |
|
- | |||||
| 18 | W11314429 | Assembly, User Interface (Replaces: W11227915) |
|
$ 322.59 | |||||
| 19 | W10720073 | Gasket, Cooling Duct |
|
$ 54.33 | |||||
| 20 | W11122208 | Assembly, Hinge Cover (black) |
|
- | |||||
| 21 | W11518276 | Tube, Dispenser Water |
|
$ 92.79 | |||||
| 22 | W10917312 | Gasket, Door (black) |
|
Immediately | $ 327.84 | ||||
| 23 | W11131483 | Gasket, Door Right Hand (black) |
|
- | |||||
| 24 | W11366500 | Assembly, Fill Tube (icemaker) (Replaces: W10917894) |
|
Immediately | $ 120.12 | ||||
| 25 | W11163783 | Closer, Door (left Hand) (Replaces: W10714907) |
|
Immediately | $ 80.73 | ||||
| 26 | W11133217 | Bin, Large Door (Replaces: W11123520) |
|
Immediately | $ 173.96 | ||||
| 27 | W11133216 | Bin, Small Door (Replaces: W11123519) |
|
- | |||||
| 28 | W11133215 | Assembly, Tilt Door Bin (includes Magnets) (Replaces: W11123588) |
|
- | |||||
| 29 | W10881874 | Trigger |
|
- | |||||
| 30 | W10866587 | Assembly, Air Gasket |
|
- | |||||
| 31 | W10870849 | Cap, Top Door (black) |
|
- | |||||
| 32 | W10871587 | Cap, Bottom Door (black) |
|
- | |||||
| 33 | W11084504 | Screw (Replaces: W11196030) |
|
- | |||||
| 34 | W10864838 | Bracket, Door Stop |
|
- | |||||
| 35 | W10868797 | Hinge, Bottom (black) |
|
- | |||||
| 36 | W10870602 | Latch, Door Closer (black) |
|
- | |||||
| 37 | W10912979 | Switch, Reed |
|
- | |||||
| 38 | W10902445 | Assembly, Air Shutter |
|
- | |||||
| 39 | W10919882 | Assembly, Outer Door (black Stainless) |
|
- | |||||
| 40 | W10870444 | Bezel, Trigger |
|
- | |||||
| 41 | W10898489 | Gasket, Outer Door (black) |
|
- | |||||
| 42 | W11084955 | Cover, Latch Housing (black) |
|
- | |||||
| 43 | W10902311 | Bumper, Door (black) |
|
- | |||||
| 44 | W10851259 | Bracket, Outer Door Stop |
|
- | |||||
| 45 | W11118122 | Assembly, Latch |
|
- | |||||
| 46 | W10868981 | Hinge, Top (black) |
|
- | |||||
| 10A | W10798308 | Bumper, Door (grey) |
|
$ 26.97 | |||||
| 14A | W11213874 | Bin, Door (gallon, Half) (Replaces: W10697272) |
|
$ 176.63 | |||||
| 1A | W11129497 | Door, Refrigerator Left Hand (stainless (also Order Item # 18)) (Replaces: W10895452) |
|
$ 1,161.54 | |||||
| 20A | W11122207 | Assembly, Hinge Cover (grey) |
|
- | |||||
| 22A | W10917313 | Gasket, Door (grey) |
|
Immediately | $ 196.76 | ||||
| 23A | W11131484 | Gasket, Door Right Hand (grey) |
|
- | |||||
| 2A | W11044415 | Door, Refrigerator Right Hand (stainless) |
|
- | |||||
| 31A | W11127419 | Cap, Top Door (grey) |
|
- | |||||
| 32A | W10871588 | Cap, Bottom Door (grey) |
|
- | |||||
| 35A | W10897037 | Hinge, Bottom (grey) |
|
- | |||||
| 39A | W11044299 | Assembly, Outer Door (stainless) |
|
- | |||||
| 41A | W10871858 | Gasket, Outer Door (grey) |
|
- | |||||
| 42A | W11082635 | Cover, Latch Housing (grey) |
|
- | |||||
| 43A | W10902310 | Bumper, Door (grey) |
|
- | |||||
| 46A | W10896964 | Hinge, Top (grey) |
|
- | |||||
| 6A | W11649966 | Mullion, Door (grey) (Replaces: W11034034) |
|
$ 141.79 | |||||
| 8A | W11163764 | Handle, Door (stainless) (Replaces: W11045530) |
|
Immediately | $ 151.77 | ||||
| NI | NP | Cabinet (not A Servicable Part) |
|
- | |||||
| NI | W11158592 | Wrench, 3/32" Hex (Replaces: 8558100) |
|
$ 9.44 | |||||
| NI | W10300089 | Wrench, 1/8" Hex |
|
- |
