SELECT A DIAGRAM

01 - Cover Sheet

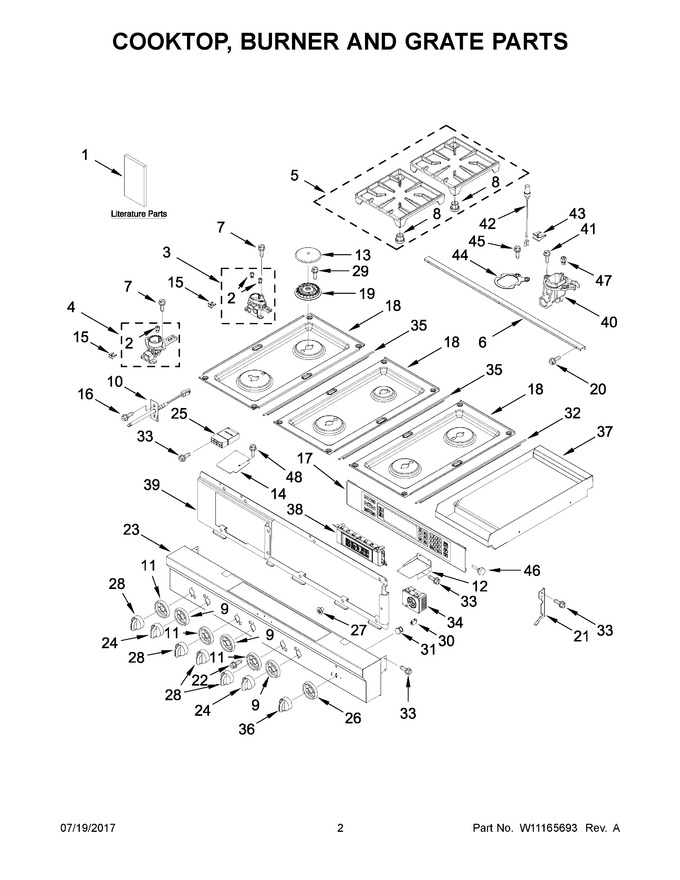

02 - Cooktop, Burner And Grate Parts


03 - Burner Box, Gas Valves And Switches


04 - 48" Chassis Parts


05 - 30" Oven Parts


06 - 18" Oven Parts


07 - Top Venting


08 - 30" Oven Door Parts


09 - 18" Oven Door Parts


10 - 30" Internal Oven Parts


11 - 18" Internal Oven Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10403297		Sheet, Tech (english)		Appelez-nous	-
2	W10657945		Orifice (20k) (left Front & Right Front, High)				$ 90.69
3	W10846622		Assembly, Orifice Holder (left Front & Right Front)				$ 111.86
4	W10846623		Assembly, Orifice Holder (left Rear, Right Rear, Center Front)				$ 111.86
5	W11569347		Assembly, Grate (includes 2 Grates) (black)   (Replaces: W10221252)				$ 365.12
6	W10269216		Trim, Island		Appelez-nous	-
7	WP3177991		Screw   (Replaces: 3177991)			Immediately	$ 7.55
8	8186321		Bumper, Grate   (Replaces: 9760219)			Immediately	$ 10.60
9	W11103328		Bezel, Front   (Replaces: W10896327)		Appelez-nous	-
10	W10319835		Sensor, Griddle				$ 239.28
11	W11103330		Bezel, Rear   (Replaces: W10896325)		Appelez-nous	-
12	W10498407		Bracket, Spark Module				$ 78.97
13	WPW10256034		Cap, Burner (black (left Front & Right Front))   (Replaces: W10256034)				$ 138.19
14	W10287036		Cover, Housing		Appelez-nous	-
15	W11684564		Spring, Electrode (all Except Center Rear)   (Replaces: W10827923)			Immediately	$ 12.65
16	WPW10068250		Screw   (Replaces: 7101P074-60)				$ 4.27
17	WPW10116117		Keypad, Urso Double   (Replaces: W10116117)				$ 311.48
18	W10352969		Cooktop (black (left))				$ 335.75
19	W11106799		Spreader, Flame (left Front & Right Front)   (Replaces: W10879806)			Immediately	$ 89.01
20	W11233072		Screw   (Replaces: 7101P338-60)			Immediately	$ 14.72
21	W10130760		Bracket, Moving Console (left)				$ 75.94
22	WP74003976		Screw   (Replaces: 7101P500-60)				$ 7.55
23	W10284667		Assembly, Console		Appelez-nous	-
24	W11244176		Knob, Dual (left Front & Right Front) (black)   (Replaces: W10250389)				$ 78.37
25	WPW10475147		Module, Spark   (Replaces: W10475147)			Immediately	$ 238.24
26	W10896326		Bezel, Griddle		Appelez-nous	-
27	7103P166-60		Nut				$ 18.56
28	W11177673		Knob, Single (left Rear, Right Rear, Center Front, Center Rear) (black)   (Replaces: W10250391)				$ 90.55
29	W11241230		Screw   (Replaces: W10673618)			Immediately	$ 14.73
30	W10116151		Housing, Indicator Light				$ 79.16
31	W10116115		Lens, Indicator Light				$ 7.86
32	W10291193		Trim, L-strip		Appelez-nous	-
33	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
34	WPW10116113		Control, Griddle   (Replaces: W10116113)				$ 351.97
35	W10271524		T-strip				$ 212.34
36	W10250390		Knob, Griddle (black)				$ 36.98
37	W10625221		Module, Griddle				$ 1,457.32
38	WPW10298120		Interface, User   (Replaces: W10298120)				$ 458.85
39	W10250476		Bracket, User Interface		Appelez-nous	-
40	W10883622		Holder, Orifice (aux) (center Rear)				$ 111.86
41	W11676349		Screw, Burner Rail (m4)   (Replaces: 8286921)			Immediately	$ 14.76
42	8286724		Electrode, Burner (center Rear)				$ 30.12
43	8286863		Spring, Electrode (center Rear)				$ 76.92
44	8286930		Gasket, Orifice				$ 95.73
45	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 7.55
46	4448520		Bumper, Door				$ 22.25
47	W10791075		Orifice (5k) (center Rear)   (Replaces: W10282663)				$ 103.68
48	WP486754		Screw   (Replaces: 246119)				$ 8.01
13A	WPW10256032		Cap, Burner (black (left Rear, Right Rear, Center Front))   (Replaces: W10256032)			Immediately	$ 88.38
13B	WPW10364463		Cap, Burner (black (center Rear))   (Replaces: W10364463)			Immediately	$ 55.85
18A	W10352966		Cooktop (black (center))				$ 320.43
18B	W10352963		Cooktop (black (right))				$ 317.55
19A	WPW10256027		Spreader, Flame (left Rear, Right Rear, Center Front)   (Replaces: W10256027)			Immediately	$ 101.02
19B	WPW10282515		Spreader, Flame (center Rear)   (Replaces: W10282515)			Immediately	$ 149.87
1A	W10403298		Sheet, Tech (french)		Appelez-nous	-
1B	W11090447		Guide, Use & Care		Appelez-nous	-
1C	W11090456		Instructions, Installation		Appelez-nous	-
21A	W10130759		Bracket, Moving Console (right)				$ 75.94
24A	W11103350		Knob, Dual (left Front & Right Front) (stainless)   (Replaces: W10250392)				$ 86.27
28A	W11103351		Knob, Single (left Rear, Right Rear, Center Front, Center Rear) (stainless)   (Replaces: W10250394)				$ 83.54
2A	W10819958		Orifice (1.2k) (left Front & Right Front, Low)   (Replaces: W10256132)				$ 97.77
2B	W11051480		Orifice (15k) (left Rear, Right Rear, Center Front)   (Replaces: W10364221)				$ 90.69
36A	W11107763		Knob, Griddle (stainless)   (Replaces: W10250393)		Appelez-nous	-
NI	W10726866		Connector, Ribbon				$ 83.88
NI	4450800		Screw, Grounding				$ 13.47
NI	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
NI	8287106		Clip, Wire   (Replaces: W10183556)		Appelez-nous	-
NI	W10766100		Kit, Lp Conversion		Appelez-nous	-
NI	W10494088		Harness, Wire (communication)			Immediately	$ 75.57
NI	W10780278		Harness, Door Lock			Immediately	$ 95.87
NI	W10763503		Harness, Ignitor (includes 5 Ignitors)				$ 190.30
NI	W10399621		Harness, Switch Non-steam		Appelez-nous	-
NI	W10116182		Harness, Griddle		Appelez-nous	-
NI	W10338986		Harness, Wiring (main)				$ 335.03
NI	W10338989		Harness, Main 18		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10856625		Reducer, Stem   (Replaces: W10340850)				$ 189.23
NI	W11544575		Bracket, Anti-tip   (Replaces: W10253333)				$ 59.88
NI	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 30.72
NI	WP854334		Spacer, Rubber   (Replaces: 8010P086-60)				$ 13.94
NI	9757778		Bushing, Snap Split				$ 97.63
NI	W10283996		Assembly, Injector		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
