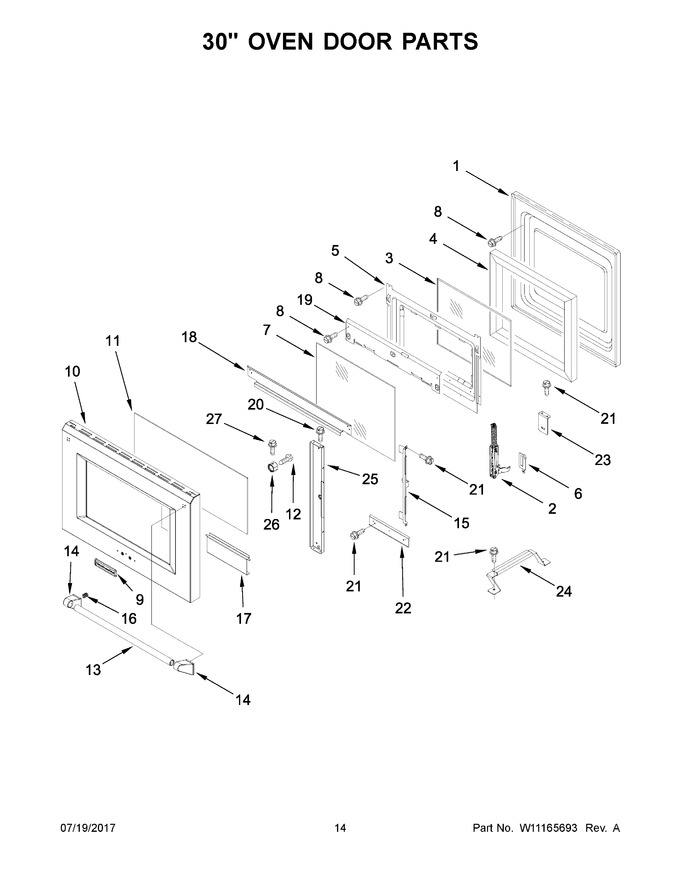

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP9759413		Liner, Door   (Replaces: 9759413)				$ 370.46
2	W10782123		Hinge, Door (left)   (Replaces: W10774093)			Immediately	$ 64.68
3	WP4449259		Glass, Inner (single Coated)   (Replaces: 4449259)				$ 213.34
4	WP4451722		Insulation, Door   (Replaces: 4451722)				$ 189.77
5	WP4457132		Retainer, Glass   (Replaces: 4457132)				$ 320.99
6	W10115876		Cover, Hinge (left)		Appelez-nous	-
7	WP9759225		Glass, Inner (double Coated)   (Replaces: 9759225)			Immediately	$ 194.20
8	WPW10292297		Screw   (Replaces: W10292297)			Immediately	$ 7.55
9	W10909682		Badge   (Replaces: W10518672)			Immediately	$ 76.20
10	W11115279		Panel, Exterior Door (imperial Black)   (Replaces: W10892985)		Appelez-nous	-
11	W10115711		Glass, Outer Door		Appelez-nous	-
12	W10217130		Screw				$ 13.08
13	W10774333		Handle, Door		Appelez-nous	-
14	W11428546		Handle, End Cap (left)   (Replaces: W10774057)		Appelez-nous	-
15	WP9759229		Bracket, Side   (Replaces: 9759229)				$ 187.50
16	W10771437		Screw   (Replaces: W10212184)				$ 7.46
17	W10145809		Bracket, Outer Glass (bottom)		Appelez-nous	-
18	W10145805		Bracket, Outer Glass (top)				$ 92.42
19	4457104		Shield, Heat Top				$ 39.22
20	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
21	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
22	4457114		Shield, Heat Bottom				$ 217.79
23	W10115715		Bracket, Door Top		Appelez-nous	-
24	9759230		Bracket, Central				$ 36.30
25	W10145811		Bracket, Outer Glass (side)		Appelez-nous	-
26	W10225964		Support, Handle				$ 10.41
27	W10061760		Screw				$ 7.62
10A	W11167330		Panel, Exterior Door (imperial White)   (Replaces: W10892986)		Appelez-nous	-
10B	W11165661		Panel, Exterior Door (cobalt Blue)   (Replaces: W10892984)		Appelez-nous	-
10C	W11167354		Panel, Exterior Door (signature Red)   (Replaces: W10892983)				$ 460.10
14A	W11428542		Handle, End Cap (right)   (Replaces: W10774056)		Appelez-nous	-
2A	W10782122		Hinge, Door (right)   (Replaces: W10774092)				$ 64.68
6A	W10115877		Cover, Hinge (right)		Appelez-nous	-
