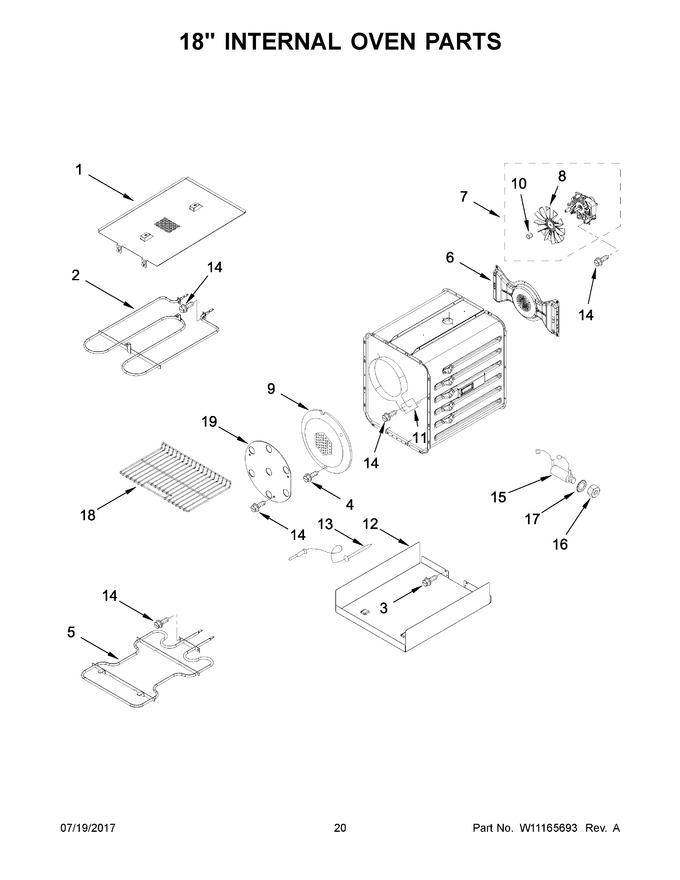

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10160855 | Shield, Element Broil |
|
- | |||||
| 2 | W10116010 | Element, Broil |
|
$ 131.23 | |||||
| 3 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 4 | WP74003976 | Screw (Replaces: 7101P500-60) |
|
$ 7.55 | |||||
| 5 | W10116033 | Element, Hidden Bake |
|
$ 180.77 | |||||
| 6 | W10860133 | Baffle, Convection (Replaces: W10160868) |
|
$ 256.58 | |||||
| 7 | W10860984 | Fan, Convection (Replaces: W10722667) |
|
Immediately | $ 176.41 | ||||
| 8 | W10819914 | Blade, Fan (Replaces: W10631503) |
|
Immediately | $ 88.67 | ||||
| 9 | WPW10160821 | Cover, Fan (Replaces: W10160821) |
|
$ 285.59 | |||||
| 10 | W10794042 | Nut, Acorn (Replaces: W10631504) |
|
$ 13.14 | |||||
| 11 | W11643125 | Element, Convection Steam (Replaces: 9762242) |
|
Immediately | $ 126.84 | ||||
| 12 | W10160847 | Tray, Hidden Bake |
|
- | |||||
| 13 | WP9755542 | Probe, Temperature (Replaces: 9755542) |
|
Immediately | $ 92.12 | ||||
| 14 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 8.16 | |||||
| 15 | 8186589 | Jack, Meat Probe (Replaces: 9755543) |
|
Immediately | $ 108.02 | ||||
| 16 | WP9755546 | Nut, Hidden (Replaces: 9755546) |
|
$ 7.30 | |||||
| 17 | WP9755547 | Washer, Lock (Replaces: 9755547) |
|
$ 6.41 | |||||
| 18 | W10570879 | Rack, Oven (18") |
|
$ 130.48 | |||||
| 19 | W10261523 | Plate, Fan |
|
$ 77.85 |
