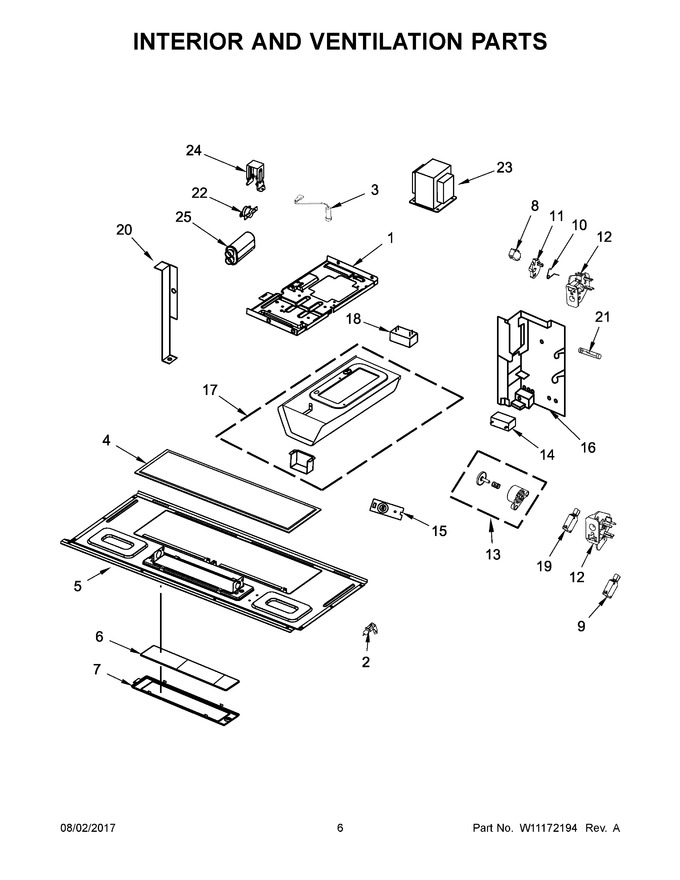

04 - Interior And Ventilation Parts


05 - Air Flow Parts


06 - Turntable Parts


07 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10245184		Chassis		Appelez-nous	-
2	W10709921		Lamp, Halogen			Immediately	$ 21.22
3	W11817793		Diode, High Voltage   (Replaces: W10492278)		Appelez-nous	-
4	W10208631A		Filter, Grease   (Replaces: W10208631)			Immediately	$ 32.59
5	W10250588		Plate, Bottom				$ 245.18
6	WPW10210875		Glass, Lamp   (Replaces: W10210875)				$ 350.94
7	W10210873		Holder, Glass				$ 5.75
8	W10269460		Microswitch V15t16-cp200/no			Immediately	$ 45.95
9	W10269458		Microswitch V15t16-cc200/nc			Immediately	$ 40.11
10	W10156812		Spring, Interlock			Immediately	$ 12.14
11	W10562613		Plate, Cam   (Replaces: W10156811)			Immediately	$ 17.83
12	WP8206419		Support, Interlock (top)   (Replaces: 8206419)			Immediately	$ 22.37
13	W10197758		Assembly, Piston			Immediately	$ 93.36
14	W11405831		Capacitor, Hood Motor   (Replaces: W10245191)				$ 44.36
15	W10163422		Thermistor				$ 179.70
16	W10640884		Air Guide, Lower				$ 25.63
17	W10310720		Chassis Assembly		Appelez-nous	-
18	W10342990		Resistor, Cement				$ 65.82
19	W10727360		Microswitch V15t16-cz200/nc/no   (Replaces: W10269457)			Immediately	$ 5.82
20	W10313275		Bracket, Top Cavity				$ 35.62
21	W11707984		Fuse   (Replaces: W10138793)			Immediately	$ 45.85
22	W10864742		Thermostat, Cavity 125/-35 Celcius   (Replaces: W10476901)				$ 88.67
23	W10836753		Transformer, High Voltage   (Replaces: W10681123)			Immediately	$ 236.06
24	W10532063		Bracket, Capacitor				$ 29.69
25	WPW10574736		Capacitor, High Voltage   (Replaces: W10574736)				$ 179.12
12A	WPW10156813		Support, Interlock (bottom)   (Replaces: W10156813)			Immediately	$ 8.07
