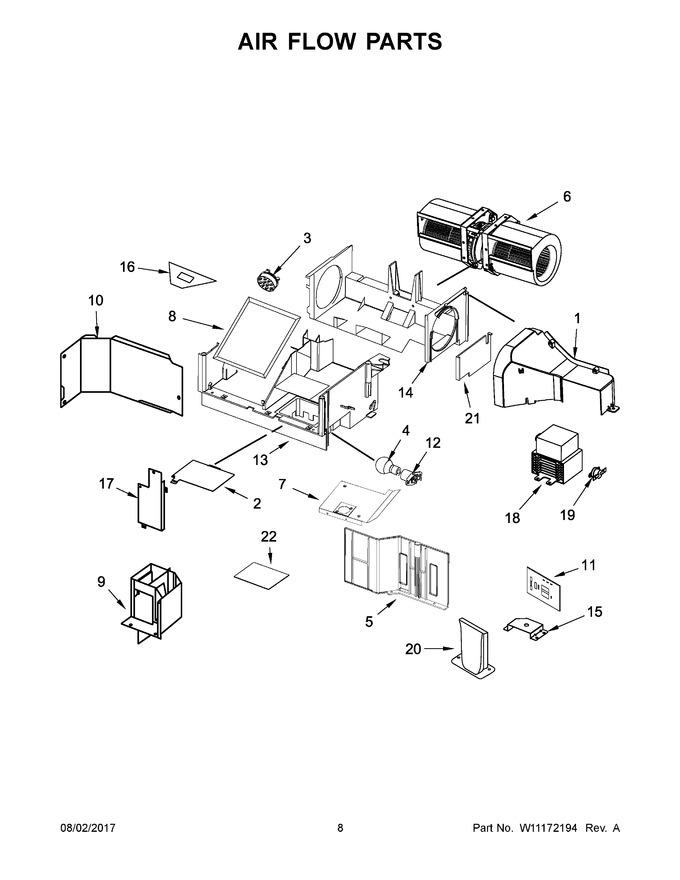

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10441188		Deflector, Air		Appelez-nous	-
2	8206382		Cover, Lamp				$ 9.17
3	W10245178		Sensor, Humidity				$ 177.01
4	8206232A		Lamp, Cavity 30 Watt   (Replaces: 4393681)			Immediately	$ 7.71
5	W10342991		Shield, Finger				$ 169.83
6	W10440507		Motor, Hood Fan				$ 172.69
7	W10245179		Support, Sensor				$ 77.72
8	8206230A		Filter, Charcoal   (Replaces: 8206230)			Immediately	$ 20.21
9	W10640883		Plate, Sealing Air Guide		Appelez-nous	-
10	W10245210		Air Guide,plate		Appelez-nous	-
11	W10605455		Filter, Noise				$ 72.33
12	WPW10210878		Socket, Cavity Lamp   (Replaces: W10210878)			Immediately	$ 34.87
13	W10640882		Base Plate, Air Guide		Appelez-nous	-
14	W10640885		Holder, Hood Fan Motor				$ 78.07
15	W10313274		Bracket, Noise Filter				$ 32.32
16	W10810142		Socket, Motor Wire Sensor		Appelez-nous	-
17	W10245214		Cover, Air Guide				$ 34.36
18	W10844213		Magnetron   (Replaces: W10721559)			Immediately	$ 357.07
19	W10491433		Thermostat, Magnetron				$ 91.51
20	W10164716		Plate, Waterproof				$ 30.03
21	W10245182		Cover, Right Duct		Appelez-nous	-
22	W10245212		Cavity Lamp Foil		Appelez-nous	-
