01 - Cover Sheet
02 - Control Panel Parts
03 - Door Parts
04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:

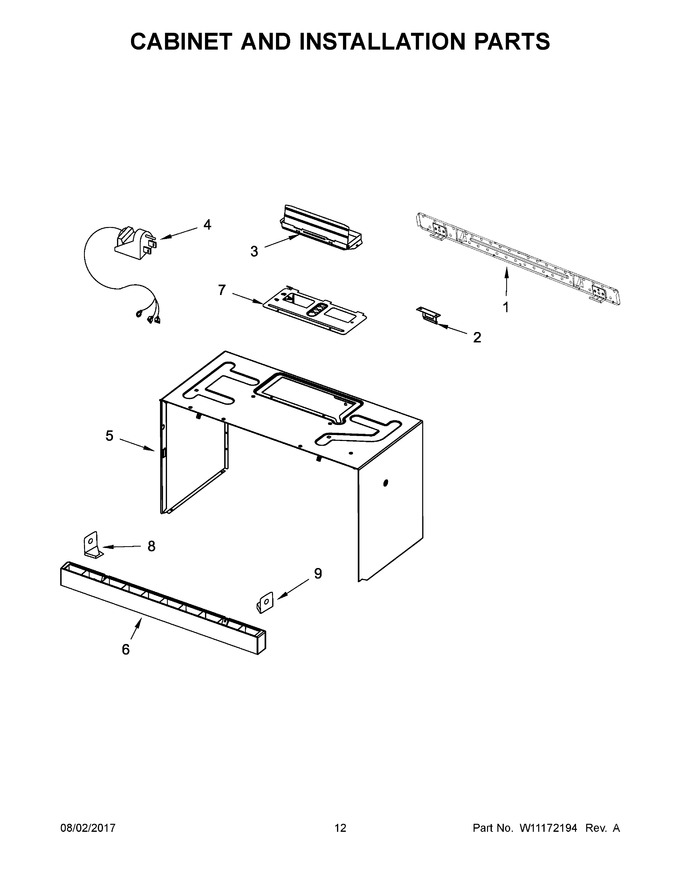

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11025649 | Plate, Mounting |
|
Immediately | $ 24.69 | ||||
| 2 | 8206385 | Support, Wire Clip |
|
$ 37.20 | |||||
| 3 | W10843943 | Damper (Replaces: W10748710) |
|
Immediately | $ 73.04 | ||||
| 4 | W10708076 | Cord, Power (Replaces: W10654511) |
|
$ 21.56 | |||||
| 5 | WPW10462003 | Case, Outer (white) (Replaces: W10462003) |
|
$ 291.92 | |||||
| 6 | W10245217 | Grille, Vent (white) |
|
$ 105.98 | |||||
| 7 | W10210832 | Cover, Hood Fan Motor |
|
$ 6.68 | |||||
| 8 | W10830163 | Vent Grid Holder, Left Side (black) (Replaces: W10703285) |
|
$ 14.21 | |||||
| 9 | W10810989 | Vent Grid Holder, Right Side (black) (Replaces: W10703283) |
|
$ 10.22 | |||||
| 5A | WPW10462001 | Case, Outer (black) (Replaces: W10462001) |
|
$ 297.51 | |||||
| 6A | W10245218 | Grille, Vent (black) |
|
$ 104.95 | |||||
| 8A | W11026306 | Vent Grid Holder, Left Side (stainless) (Replaces: W10703284) |
|
Immediately | $ 7.55 | ||||
| 9A | W10703282 | Vent Grid Holder, Right Side (stainless) |
|
$ 11.00 | |||||
| NI | W10190018 | Miscellaneous Parts, Template, Upper (english & French) |
|
Immediately | $ 7.55 | ||||
| NI | WP8169704 | Miscellaneous Parts, 1/4-20x3" Panhead Screw (Replaces: 8169704) |
|
Immediately | $ 13.35 | ||||
| NI | W10553873 | Miscellaneous Parts, Harness, Head Lamp And Turntable Assembly |
|
$ 110.28 | |||||
| NI | W10556400 | Miscellaneous Parts, Harness, Main |
|
$ 181.88 | |||||
| NI | 8205948 | Miscellaneous Parts, Hardware, Installation |
|
$ 26.90 | |||||
| NI | W10190020 | Miscellaneous Parts, Template, Upper (english & Spanish) |
|
$ 56.21 |
