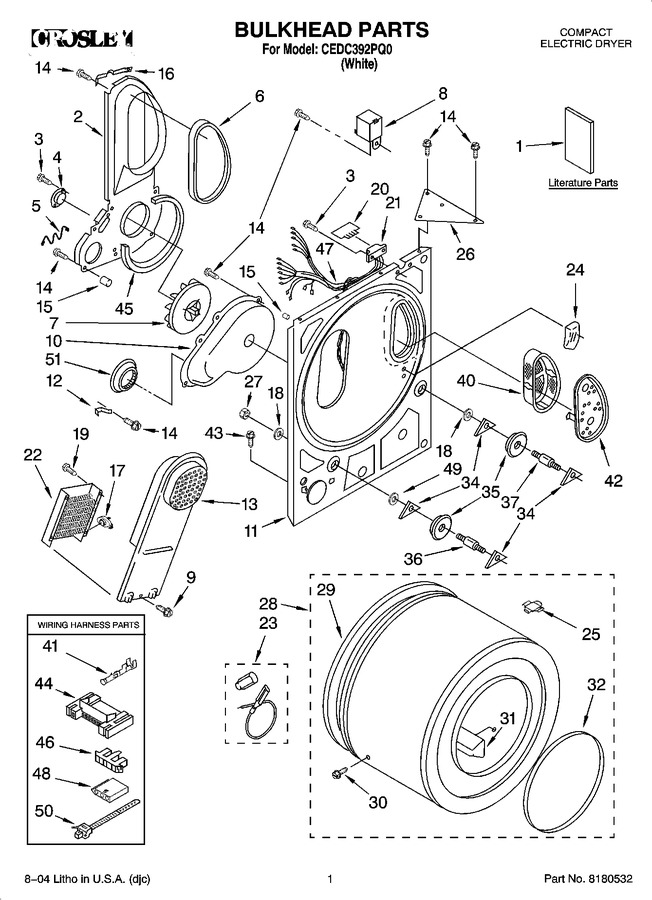

01 - Bulkhead Parts
02 - Cabinet Parts
03 - Top And Console Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9830513 | Label, Operating Instructions |
|
- | |||||
| 1 | 9831728 | Label, Wiring Diagram |
|
- | |||||
| 1 | 8562112 | Guide, Use & Care |
|
- | |||||
| 2 | 696538 | Air Duct Assembly |
|
- | |||||
| 3 | WPW10139210 | Screw, 8-18 X 5/16 (Replaces: 3390646) |
|
$ 7.50 | |||||
| 4 | AT022 | Thermostat, 145~f (63~c) (Replaces: 660074) |
|
Immediately | $ 35.17 | ||||
| 5 | 345965 | Guard, Exhaust |
|
$ 75.38 | |||||
| 6 | WP339956 | Seal (Replaces: 339956) |
|
Immediately | $ 8.63 | ||||
| 7 | WP696426 | Wheel, Blower (Replaces: 696426) |
|
Immediately | $ 130.18 | ||||
| 8 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 127.67 | |||||
| 9 | WP489463 | Screw, 8-18 X 5/8 (Replaces: 489463) |
|
$ 7.82 | |||||
| 10 | 696419 | Scroll, Fan |
|
$ 136.82 | |||||
| 11 | 279848 | Bulkhead (Replaces: 3394204) |
|
$ 347.41 | |||||
| 12 | 279771 | Clip (Replaces: 3398161) |
|
$ 14.33 | |||||
| 13 | WP3401380 | Box, Heater (Replaces: 3401380) |
|
Immediately | $ 281.19 | ||||
| 14 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 15 | W10491983 | Cap, Screw (Replaces: 359702) |
|
- | |||||
| 16 | 345396 | Clip (Replaces: 9830393) |
|
- | |||||
| 17 | WP3404153 | Thermostat, 180~f (82~c) (Replaces: 3404153) |
|
$ 132.49 | |||||
| 18 | WP348197 | Washer, Support (Replaces: 348197) |
|
$ 7.19 | |||||
| 19 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.82 | ||||
| 20 | WPW10476828 | Control, Electronic (Replaces: 8558178) |
|
Immediately | $ 314.22 | ||||
| 21 | 3391885 | Connector, Edge |
|
$ 86.40 | |||||
| 22 | WP3403591 | Heater Element (Replaces: 3403591) |
|
$ 292.22 | |||||
| 23 | 279457 | Terminal Wire Kit (for Heater Element Wiring Harness Repair) |
|
Immediately | $ 7.92 | ||||
| 24 | W10816105 | Pad, Sensor (Replaces: 3976479) |
|
$ 152.01 | |||||
| 25 | 8066086 | Drum, Hole Plug |
|
$ 10.75 | |||||
| 26 | 345325 | Gusset (2) |
|
- | |||||
| 27 | WP3359452 | Nut, 3/8-16 (Replaces: 3359452) |
|
Immediately | $ 7.19 | ||||
| 28 | 3391834 | Drum Assembly (Replaces: 695943) |
|
$ 354.77 | |||||
| 29 | 279735 | Seal, Rear (Replaces: 345648) |
|
Immediately | $ 66.71 | ||||
| 30 | WPW10109200 | Screw, 11-16 X 3/4 (Replaces: 97787) |
|
Immediately | $ 8.00 | ||||
| 31 | 00685207 | Baffle, Drum (3) (Replaces: 685207) |
|
$ 326.00 | |||||
| 32 | WP3394508 | Ring, Bearing (Replaces: 3394508) |
|
$ 125.58 | |||||
| 34 | WPW10512946 | Ring, Tri (Replaces: 690997) |
|
Immediately | $ 8.80 | ||||
| 35 | 349241T | Roller, Support (Replaces: 3397588) |
|
Immediately | $ 29.53 | ||||
| 36 | WPW10359270 | Shaft, L.h. (Replaces: 3399506) |
|
Immediately | $ 72.71 | ||||
| 37 | WPW10359269 | Shaft, R.h. (Replaces: 3399507) |
|
Immediately | $ 47.30 | ||||
| 40 | W10828351 | Lint Screen (Replaces: 8531964) |
|
Immediately | $ 56.24 | ||||
| 41 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 7.67 | |||||
| 42 | W10828351 | Cover, Lint Screen (Replaces: 8531967) |
|
Immediately | $ 56.24 | ||||
| 43 | WP3390631 | Screw, 10-16 X 1/4 (Replaces: 342202) |
|
$ 7.82 | |||||
| 44 | 3395683 | Connector (motor) |
|
Immediately | $ 51.86 | ||||
| 45 | 8066094 | Seal |
|
$ 8.87 | |||||
| 46 | 3397269 | Connector, Timer |
|
$ 25.55 | |||||
| 47 | 3406935 | Harness, Wiring |
|
- | |||||
| 48 | 3936144 | Connector |
|
$ 20.21 | |||||
| 49 | WP3388703 | Washer-support (Replaces: 3388703) |
|
$ 7.47 | |||||
| 50 | WP3391018 | Tie, Cable (Replaces: 3391018) |
|
$ 31.84 | |||||
| 51 | W11233063 | Shield, Exhaust (Replaces: 696302) |
|
$ 22.29 |
