01 - Bulkhead Parts
02 - Cabinet Parts

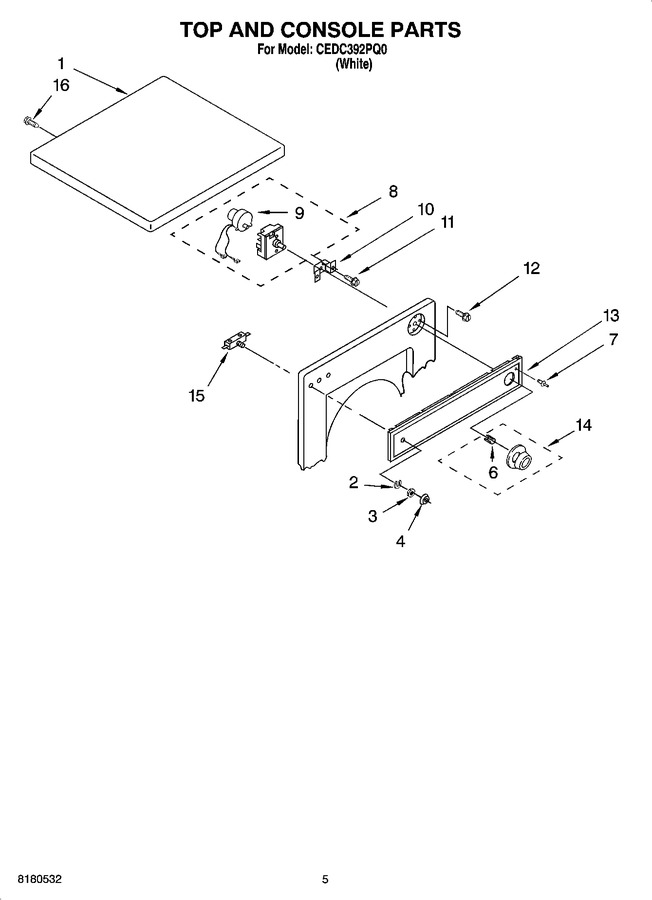

03 - Top And Console Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 345703 | Top |
|
$ 261.58 | |||||
| 2 | 688193 | Lockwasher |
|
- | |||||
| 3 | 9831122 | Nut, Hex |
|
- | |||||
| 4 | 345530 | Ring, Trim |
|
- | |||||
| 6 | WP688805 | Clip (Replaces: 688805) |
|
Immediately | $ 8.20 | ||||
| 7 | 307563 | Rivet, Pop (2) |
|
- | |||||
| 8 | WP8563881 | Timer, 60 Hz. (Replaces: 9830837) |
|
$ 367.99 | |||||
| 10 | 348171 | Bracket, Timer |
|
- | |||||
| 11 | WP486579 | Screw, 8-32 X 7/32 (Replaces: 311865) |
|
$ 7.89 | |||||
| 12 | WPW10139210 | Screw, 8-18 X 5/16 (Replaces: 3390646) |
|
$ 8.03 | |||||
| 13 | 8562103 | Panel, Control |
|
- | |||||
| 14 | 3977652 | Timer Knob & Dial |
|
- | |||||
| 15 | 3977675 | Switch, Push-to-start |
|
- | |||||
| 16 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | |||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 |
