01 - Bulkhead Parts

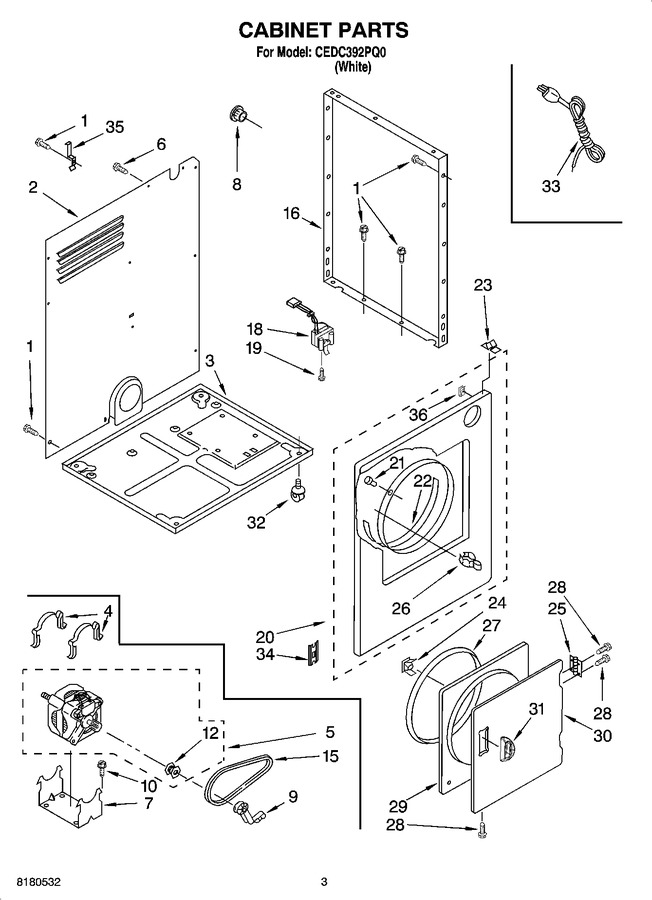

02 - Cabinet Parts
03 - Top And Console Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 2 | 280048 | Panel, Rear (Replaces: 347812) |
|
$ 299.42 | |||||
| 3 | WP348726 | Base Assembly (Replaces: 348726) |
|
$ 292.16 | |||||
| 4 | WP660658 | Clamp, Motor (2) (Replaces: 660658) |
|
$ 8.22 | |||||
| 5 | WPW10448901 | Motor, 60 Hz. (Replaces: 8538265) |
|
Immediately | $ 343.16 | ||||
| 6 | W10850756 | Screw, Ground (10-32 X 5/8) (Replaces: 697776) |
|
$ 8.20 | |||||
| 7 | 696541 | Base, Motor |
|
$ 97.86 | |||||
| 8 | 8066084 | Bushing, Snap |
|
- | |||||
| 9 | WP691366 | Idler & Pulley Assembly (Replaces: 691366) |
|
Immediately | $ 22.47 | ||||
| 10 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 3390631) |
|
$ 8.25 | |||||
| 12 | 8066051 | Pulley, Motor |
|
$ 118.78 | |||||
| 15 | 3394652 | Belt, Drive (Replaces: 8066064) |
|
Immediately | $ 52.32 | ||||
| 16 | 348705 | Panel, Side (2) |
|
$ 115.02 | |||||
| 18 | WP3406105 | Door Switch Assembly (Replaces: 3406104) |
|
Immediately | $ 36.90 | ||||
| 19 | WP3395530 | Screw, 6-20 X 7/8 (Replaces: 697773) |
|
$ 8.57 | |||||
| 20 | 280044 | Front Panel (Replaces: 693943) |
|
$ 335.16 | |||||
| 21 | 279220 | Clip, Felt Pad (Replaces: 685203) |
|
$ 23.55 | |||||
| 22 | 279264 | Seal & Bearing Assembly (Replaces: 8066123) |
|
Immediately | $ 74.52 | ||||
| 23 | WP345670 | Lock, Top (Replaces: 345670) |
|
Immediately | $ 8.09 | ||||
| 24 | WP3389441 | Catch, Door (Replaces: 3389441) |
|
$ 6.20 | |||||
| 25 | WP348023 | Hinge & Pin Assembly (2) (Replaces: 348023) |
|
$ 9.32 | |||||
| 26 | 279570 | Strike, Panel (Replaces: 696144) |
|
Immediately | $ 8.89 | ||||
| 27 | W11613302 | Seal, Door (Replaces: 3390734) |
|
$ 56.31 | |||||
| 28 | WP694091 | Screw, 8-18 X 3/8 (Replaces: 694091) |
|
$ 7.55 | |||||
| 29 | 280077 | Door, Rear (Replaces: 695656) |
|
$ 207.46 | |||||
| 30 | WP348205 | Door, Front (Replaces: 348205) |
|
Immediately | $ 154.76 | ||||
| 31 | 8562105 | Handle, Door |
|
- | |||||
| 32 | 279127 | Caster (4) (Replaces: 660719) |
|
$ 77.47 | |||||
| 33 | 20063371 | Cord, Power |
|
- | |||||
| 34 | W10854425 | Clip (2) (Replaces: 3394083) |
|
Immediately | $ 16.34 | ||||
| 35 | 345790 | Bracket, Power Cord |
|
- | |||||
| 36 | WP98234 | Clip, Panel (Replaces: 98234) |
|
Immediately | $ 11.96 |
