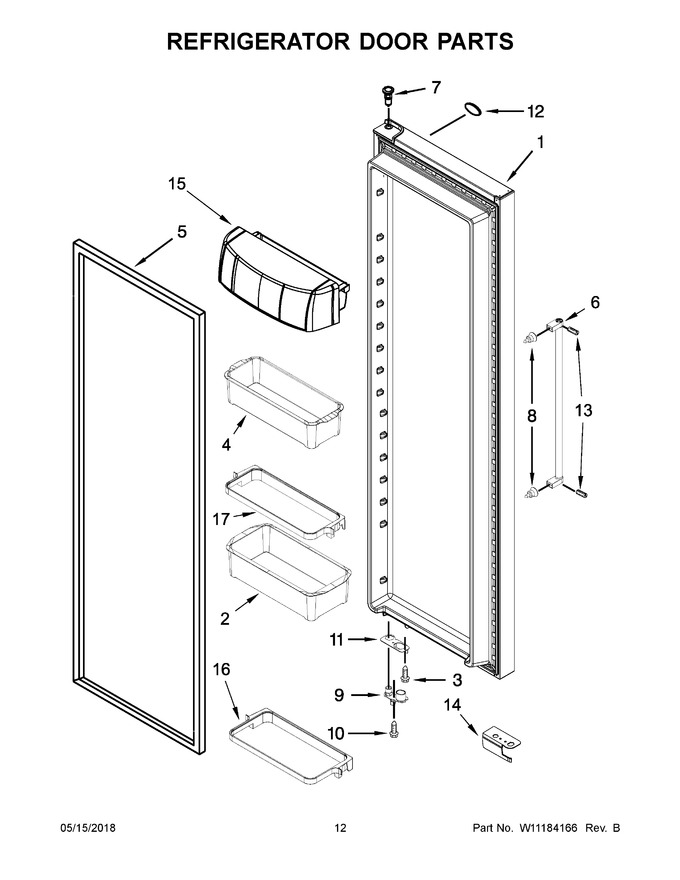

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10764072 | Door, Refrigerator (includes Item 5) (white) |
|
- | |||||
| 2 | WPW10316457 | Bin, Gallon Door (Replaces: W10316457) |
|
Immediately | $ 98.69 | ||||
| 3 | WPW10296816 | Screw (Replaces: W10296816) |
|
$ 8.06 | |||||
| 4 | WPW10316461 | Bin, Shallow Door (Replaces: W10316461) |
|
$ 73.74 | |||||
| 5 | WPW10247884 | Gasket, Door (beige) (Replaces: W10247884) |
|
$ 322.97 | |||||
| 6 | W11340150 | Handle (stainless) (Replaces: W10740429) |
|
$ 200.19 | |||||
| 7 | WP2182181 | Thimble, Top (Replaces: 2200086) |
|
$ 8.15 | |||||
| 8 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 12.88 | ||||
| 9 | WPW10248011 | Closer, Upper Cam Door (white) (Replaces: W10248011) |
|
$ 12.93 | |||||
| 10 | WPW10296804 | Screw (Replaces: W10296804) |
|
$ 11.39 | |||||
| 11 | W11037957 | Bracket, Door Stop (Replaces: W10888898) |
|
$ 80.24 | |||||
| 12 | W10909682 | Badge (Replaces: W10518672) |
|
Immediately | $ 76.20 | ||||
| 13 | W10917698 | Set Screw (Replaces: W10687133) |
|
Immediately | $ 7.55 | ||||
| 14 | W10789144 | Cover, Door Stop (white) |
|
$ 19.38 | |||||
| 15 | WPW10324760 | Assembly, Utility Compartment (Replaces: W10324760) |
|
$ 85.60 | |||||
| 16 | WPW10494334 | Frame, Gallon Door Bin (Replaces: W10494334) |
|
$ 266.97 | |||||
| 17 | WPW10494333 | Frame, Shallow Door Bin (Replaces: W10494333) |
|
$ 221.92 | |||||
| 14A | W10789145 | Cover, Door Stop (black) |
|
$ 19.37 | |||||
| 14B | W11661847 | Cover, Door Stop (grey) (Replaces: W10789147) |
|
Immediately | $ 31.71 | ||||
| 1A | LW10812119 | Door, Refrigerator (includes Item 5) (black) (Replaces: W10812119) |
|
- | |||||
| 1B | W10757191 | Door, Refrigerator (includes Item 5) (stainless) |
|
- | |||||
| 5A | WPW10249912 | Gasket, Door (black) (Replaces: W10249912) |
|
$ 329.18 | |||||
| 5B | W10355582 | Gasket, Door (grey) (Replaces: W10249916) |
|
$ 341.26 | |||||
| 9A | WPW10257201 | Closer, Upper Cam Door (black) (Replaces: W10257201) |
|
$ 12.93 | |||||
| 9B | WPW10257203 | Closer, Upper Cam Door (grey) (Replaces: W10257203) |
|
$ 12.96 |
