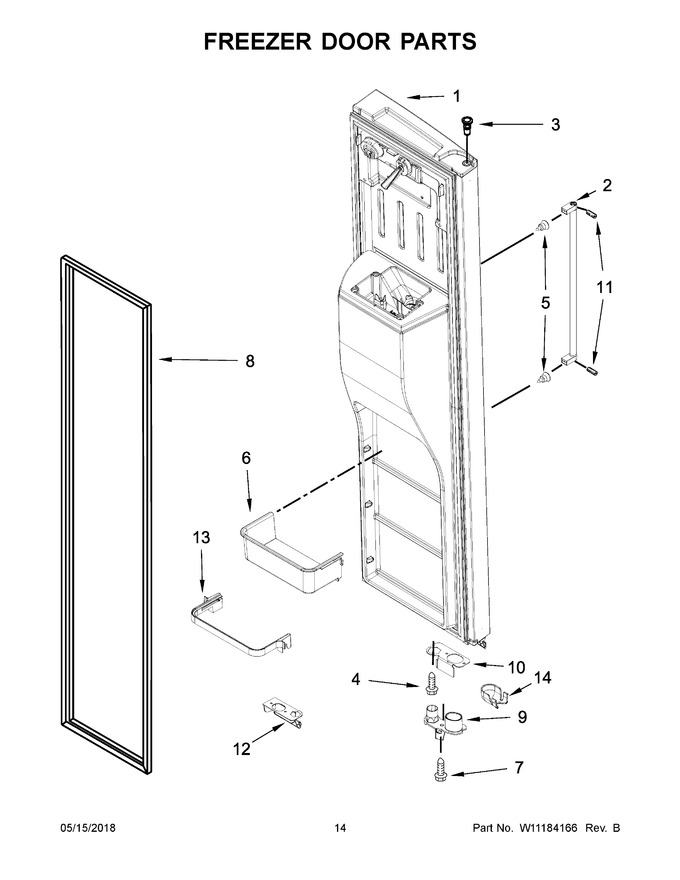

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10755650 | Door, Freezer (includes Item 8 And Dispenser Front Parts) (white) (Replaces: W10755650) |
|
$ 1,705.79 | |||||
| 2 | W11340150 | Handle (stainless) (Replaces: W10740429) |
|
$ 200.19 | |||||
| 3 | WP2182181 | Thimble, Top (Replaces: 2200086) |
|
$ 8.15 | |||||
| 4 | WPW10296804 | Screw (Replaces: W10296804) |
|
$ 11.39 | |||||
| 5 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 12.88 | ||||
| 6 | WPW10434529 | Bin, Door (Replaces: W10434529) |
|
$ 77.78 | |||||
| 7 | WPW10296816 | Screw (Replaces: W10296816) |
|
$ 8.06 | |||||
| 8 | WPW10247885 | Gasket, Door (beige) (Replaces: W10247885) |
|
$ 347.07 | |||||
| 9 | WPW10248015 | Closer, Upper Cam Door (white) (Replaces: W10248015) |
|
$ 12.85 | |||||
| 10 | W11293380 | Bracket, Door Stop (Replaces: W10247907) |
|
$ 69.21 | |||||
| 11 | W10917698 | Set Screw (Replaces: W10687133) |
|
Immediately | $ 7.55 | ||||
| 12 | W10632059 | Cover, Door Stop (white) |
|
$ 23.46 | |||||
| 13 | WPW10494336 | Frame, Door Bin (Replaces: W10494336) |
|
$ 243.61 | |||||
| 14 | W10323148 | Cover, Wire |
|
$ 42.25 | |||||
| 12A | W10632060 | Cover, Door Stop (black) |
|
$ 22.30 | |||||
| 12B | WPW10632062 | Cover, Door Stop (grey) (Replaces: W10632062) |
|
$ 7.55 | |||||
| 1A | W10812474 | Door, Freezer (includes Item 8 And Dispenser Front Parts) (black) |
|
- | |||||
| 1B | W10755680 | Door, Freezer (includes Item 8 And Dispenser Front Parts) (stainless) |
|
- | |||||
| 8A | WPW10249913 | Gasket, Door (black) (Replaces: W10249913) |
|
$ 321.05 | |||||
| 8B | WPW10355585 | Gasket, Door (grey) (Replaces: W10249917) |
|
$ 337.27 | |||||
| 9A | W11607100 | Closer, Upper Cam Door (black) (Replaces: W10257204) |
|
Immediately | $ 13.98 | ||||
| 9B | WPW10257206 | Closer, Upper Cam Door (grey) (Replaces: W10257206) |
|
Immediately | $ 13.18 |
