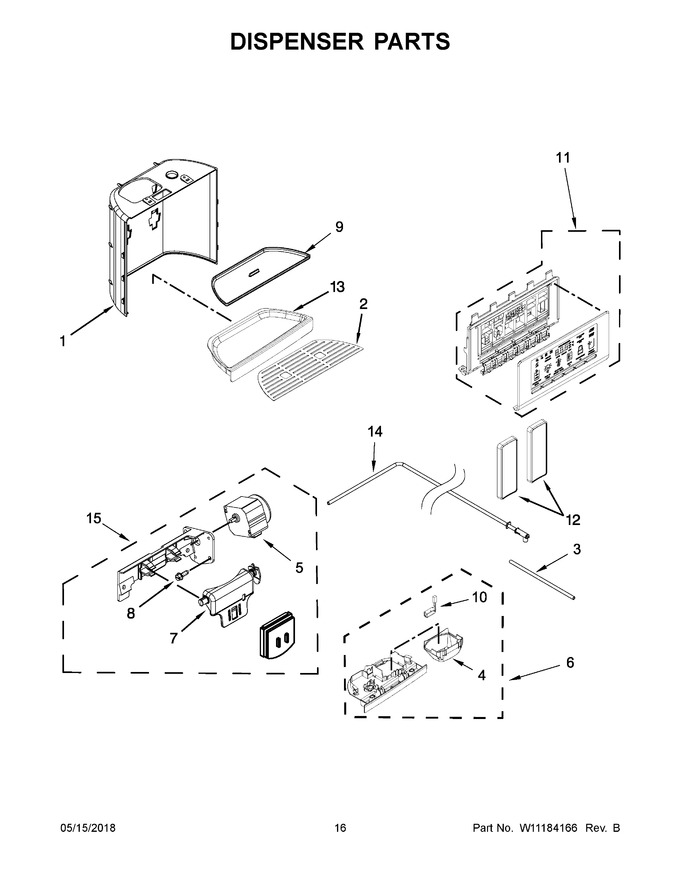

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10317258 | False Wall, Dispenser (white) |
|
- | |||||
| 2 | WPW10317270 | Grate, Drip Tray (Replaces: W10317270) |
|
$ 75.65 | |||||
| 3 | W11619800 | Tube, Water (Replaces: W10876364) |
|
$ 90.70 | |||||
| 4 | WPW10435760 | Guide, Ice (Replaces: W10435760) |
|
$ 23.94 | |||||
| 5 | WPW10205978 | Motor, Dispenser (Replaces: W10205978) |
|
$ 104.12 | |||||
| 6 | W10353593 | Assembly, Seperator |
|
$ 135.48 | |||||
| 7 | WPW10346124 | Support, Ice Door (Replaces: W10346124) |
|
$ 41.85 | |||||
| 8 | WP4449745 | Screw (Replaces: 4449745) |
|
$ 7.98 | |||||
| 9 | W10317274 | Drip Tray, Insert (white) |
|
$ 85.12 | |||||
| 10 | W11290115 | Assembly, Led (Replaces: W10238083) |
|
$ 84.45 | |||||
| 11 | W10822640 | User Interface Assembly (Replaces: W10798784) |
|
$ 395.07 | |||||
| 12 | W10317250 | Pad, Ice And Water (white) |
|
$ 321.84 | |||||
| 13 | W10317264 | Tray, Housing (white) |
|
$ 62.66 | |||||
| 14 | WPW10386778 | Assembly, Water Fitting (Replaces: W10386778) |
|
Immediately | $ 132.74 | ||||
| 15 | W11130210 | Assembly, Ice Door (Replaces: W10781990) |
|
$ 160.56 | |||||
| 12A | W11561037 | Pad, Ice And Water (black) (Replaces: W10317253) |
|
$ 82.93 | |||||
| 12B | WPW10346924 | Pad, Ice And Water (grey) (Replaces: W10346924) |
|
Immediately | $ 289.65 | ||||
| 13A | W10317265 | Tray, Housing (black) |
|
$ 62.19 | |||||
| 13B | WPW10317261 | Tray, Housing (stainless) (Replaces: W10317261) |
|
$ 83.76 | |||||
| 1A | W10317259 | False Wall, Dispenser (black) |
|
Immediately | $ 133.62 | ||||
| 1B | W10317255 | False Wall, Dispenser (stainless) |
|
$ 132.94 | |||||
| 9A | W10317275 | Drip Tray, Insert (black) |
|
- | |||||
| 9B | W10859920 | Drip Tray, Insert (grey) (Replaces: W10317276) |
|
$ 67.52 |
