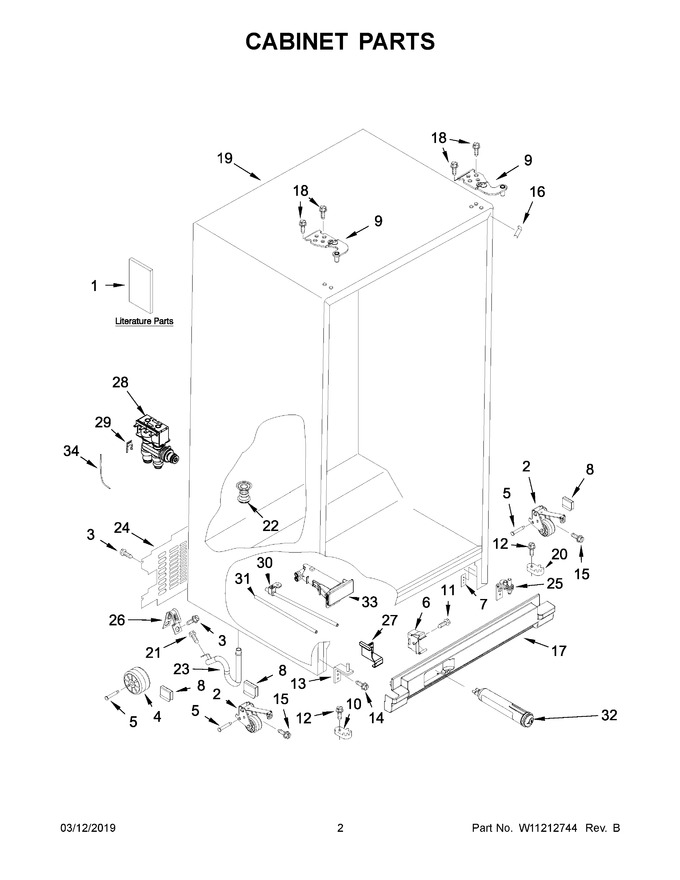

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11105301 | Use And Care Guide |
|
- | |||||
| 2 | WPW10304660 | Assembly, Roller (left Hand) (Replaces: W10304660) |
|
Immediately | $ 70.38 | ||||
| 3 | WPW10141645 | Screw (Replaces: W10141645) |
|
$ 7.67 | |||||
| 4 | WPW10475495 | Roller (Replaces: 2150304) |
|
Immediately | $ 32.06 | ||||
| 5 | W11594405 | Axle, Roller (Replaces: 2262072) |
|
Immediately | $ 18.21 | ||||
| 6 | WP2155013 | Clip, Grille (Replaces: 2155013) |
|
Immediately | $ 7.72 | ||||
| 7 | W11036715 | Plate, Screw (refrigerator) |
|
- | |||||
| 8 | W11594405 | Clip, Roller (Replaces: W11087168) |
|
Immediately | $ 18.21 | ||||
| 9 | W11579508 | Hinge, Top (white (refrigerator)) (Replaces: W10922200) |
|
$ 35.06 | |||||
| 10 | W11679635 | Closer, Door (freezer) (Replaces: W11095731) |
|
Immediately | $ 13.08 | ||||
| 11 | WP489128 | Screw (Replaces: 488500) |
|
$ 10.88 | |||||
| 12 | WP489483 | Screw (Replaces: W10142234) |
|
$ 10.87 | |||||
| 13 | W11687636 | Assembly, Bottom Hinge (freezer) (Replaces: W11093938) |
|
$ 69.42 | |||||
| 14 | WP489497 | Screw (Replaces: 3400113) |
|
Immediately | $ 29.09 | ||||
| 15 | W11544561 | Screw (Replaces: 2152958) |
|
$ 14.05 | |||||
| 16 | W11219639 | Filler, Wrapper (white) (Replaces: W11189128) |
|
$ 11.31 | |||||
| 17 | W11162037 | Grille (white) (Replaces: W10920727) |
|
- | |||||
| 18 | WPW10308750 | Screw (white) (Replaces: W10308750) |
|
$ 69.80 | |||||
| 19 | N/P | Cabinet (not A Servicable Part) |
|
- | |||||
| 20 | W11398787 | Closer, Lower Cam Door (refrigerator) (Replaces: W10905504) |
|
$ 13.91 | |||||
| 21 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.83 | ||||
| 22 | W11566763 | Fitting, Drain (Replaces: 2304888) |
|
Immediately | $ 50.90 | ||||
| 23 | W11512417 | Extension, Drain Fitting (Replaces: W10153550) |
|
$ 34.79 | |||||
| 24 | W11778265 | Cover, Unit (Replaces: W10904634) |
|
$ 91.50 | |||||
| 25 | W11399415 | Assembly, Bottom Hinge (refrigerator) (Replaces: W11097327) |
|
$ 69.79 | |||||
| 26 | 549193 | Clamp, Power Cord |
|
$ 13.39 | |||||
| 27 | W10897565 | Assembly, Bracket |
|
$ 68.47 | |||||
| 28 | WPW10179146 | Assembly, Filter Valve (Replaces: W10179146) |
|
Immediately | $ 99.47 | ||||
| 29 | W10782423 | Locking Ring (1/4) |
|
$ 23.21 | |||||
| 30 | W11162040 | Tube, Filter Inlet (Replaces: W10900449) |
|
$ 115.43 | |||||
| 31 | W11162036 | Tube, Filter Outlet (Replaces: W10900447) |
|
$ 114.71 | |||||
| 32 | EDR1RXD1B | Filter, Water (Replaces: W10735398) |
|
Immediately | $ 49.99 | ||||
| 33 | W11162041 | Housing, Water Filter (white) (Replaces: W11036340) |
|
Immediately | $ 132.05 | ||||
| 34 | W10823511 | Tube, Water (Replaces: W10357076) |
|
Immediately | $ 32.41 | ||||
| 16A | W11219641 | Filler, Wrapper (black) (Replaces: W11189127) |
|
$ 11.31 | |||||
| 16B | W10283958 | Filler, Wrapper (biscuit/bisque) |
|
$ 24.41 | |||||
| 16C | W11219642 | Filler, Wrapper (grey) (Replaces: W11189126) |
|
Immediately | $ 12.24 | ||||
| 17A | W11282546 | Grille (black) (Replaces: W10920723) |
|
$ 117.15 | |||||
| 17B | W11282543 | Grille (biscuit) (Replaces: W10920732) |
|
- | |||||
| 17C | W11282544 | Grille (grey) (Replaces: W10897568) |
|
$ 122.67 | |||||
| 18A | WPW10308751 | Screw (black) (Replaces: W10308751) |
|
$ 8.41 | |||||
| 1A | W10713667 | Tech Sheet |
|
- | |||||
| 1B | W11090528 | Energy Guide |
|
- | |||||
| 29A | W10782424 | Locking Ring (5/16) |
|
- | |||||
| 2A | WPW10304659 | Assembly, Roller (right Hand) (Replaces: W10304659) |
|
Immediately | $ 68.52 | ||||
| 33A | W11172791 | Housing, Water Filter (black) (Replaces: W11036341) |
|
Immediately | $ 209.64 | ||||
| 33B | W11036339 | Housing, Water Filter (biscuit) |
|
- | |||||
| 33C | W11162042 | Housing, Water Filter (grey) (Replaces: W11036338) |
|
Immediately | $ 149.82 | ||||
| 7A | W10904380 | Plate, Screw (freezer) |
|
$ 24.72 | |||||
| 9A | W11579508 | Hinge, Top (white (freezer)) (Replaces: W10922201) |
|
$ 35.06 | |||||
| 9B | W10922216 | Hinge, Top (black (refrigerator)) |
|
$ 66.34 | |||||
| 9C | W10922217 | Hinge, Top (black (freezer)) |
|
- | |||||
| 9D | W10922218 | Hinge, Top (biscuit (refrigerator)) |
|
- | |||||
| 9E | W10922219 | Hinge, Top (biscuit (freezer)) |
|
- | |||||
| 9F | W11579508 | Hinge, Top (grey (refrigerator)) (Replaces: W10900868) |
|
$ 35.06 | |||||
| 9G | W11505709 | Hinge, Top (grey (freezer)) (Replaces: W10900869) |
|
$ 64.30 |
