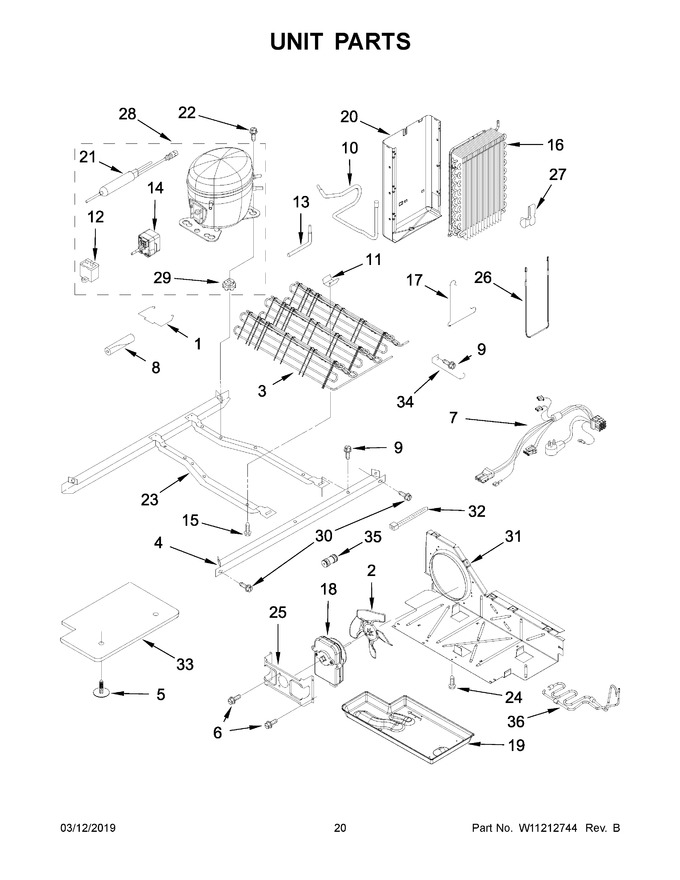

10 - Air Flow Parts


11 - Unit Parts


12 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2212996		Strap, Bale				$ 12.11
2	W11458267		Blade, Fan   (Replaces: 2225834)			Immediately	$ 23.99
3	W11632924		Assembly, Condenser   (Replaces: W10904626)			Immediately	$ 226.24
4	W10900442		Rail, Unit Mounting		Appelez-nous	-
5	489396		Clip				$ 10.72
6	WP8533993		Screw   (Replaces: 8533993)				$ 10.57
7	W11580023		Assembly, Unit Wire (includes Power Cord)   (Replaces: W10670169)				$ 75.25
8	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 20.30
9	WP489427		Screw   (Replaces: 489427)				$ 7.47
10	W10745337		Tube, Suction		Appelez-nous	-
11	W10683556		Clip, Condenser   (Replaces: 2311725)				$ 18.46
12	WPW10350564		Capacitor   (Replaces: W10350564)			Immediately	$ 99.49
13	2325479		Tube, Process		Appelez-nous	-
14	WPW10197428		Device, Combination Start (start Relay And Overload)   (Replaces: W10197428)			Immediately	$ 89.21
15	W11544659		Screw   (Replaces: 8281232)				$ 13.67
16	WP2188823		Evaporator   (Replaces: 2188823)			Immediately	$ 363.32
17	2161324		Clip, Defrost Heater		Appelez-nous	-
18	W11578915		Motor, Condenser Fan   (Replaces: W10522629)			Immediately	$ 71.42
19	W11678304		Tray, Evaporator   (Replaces: W10897557)		Appelez-nous	-
20	W10194475		Assembly, Heat Shield And Drain Pan		Appelez-nous	-
21	WPW10143759		Drier   (Replaces: W10771114)			Immediately	$ 30.78
22	W11661574		Screw   (Replaces: 489473)				$ 13.61
23	W10900446		Frame, Unit Mounting (includes Unit Mounting Rail)		Appelez-nous	-
24	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
25	WP2181929		Bracket, Fan Mounting   (Replaces: 2181929)				$ 12.31
26	WP2323198		Heater, Defrost   (Replaces: 2188175)			Immediately	$ 90.70
27	2161324		Clip, Defrost Heater		Appelez-nous	-
28	W10309988		Compressor (also Order 876765 Tube Kit)   (Replaces: W10253005)			Immediately	$ 559.32
29	W10836504		Grommet, Compressor				$ 17.38
30	489340		Bolt		Appelez-nous	-
31	W10896764		Baffle, Air   (Replaces: W10897567)				$ 96.38
32	WPW10339879		Tie, Wire   (Replaces: 2263990)				$ 7.90
33	W10897560		Assembly, Unit Cover (bottom)   (Replaces: W10897562)				$ 96.73
34	1105612		Guard, Fan				$ 40.58
35	WP2300868		Connector, Union   (Replaces: W10271541)			Immediately	$ 29.05
36	W11678305		Assembly, Precooler Formed   (Replaces: W11189542)				$ 63.46
NI	SF5538		Valve, Access (3/8")   (Replaces: 978027)				$ 21.64
NI	N/P		Refrigerant Charge 5.5 Oz (r-134a)		Appelez-nous	-
NI	978029		Valve, Access (5/8")				$ 93.85
NI	978030		Valve, Access (3/4")				$ 130.71
NI	876764		Valve, Access (3/16")			Immediately	$ 91.35
NI	978026		Valve, Access (5/16")			Immediately	$ 128.09
NI	WP978025		Valve, Access (1/4")   (Replaces: 978025)			Immediately	$ 105.25
