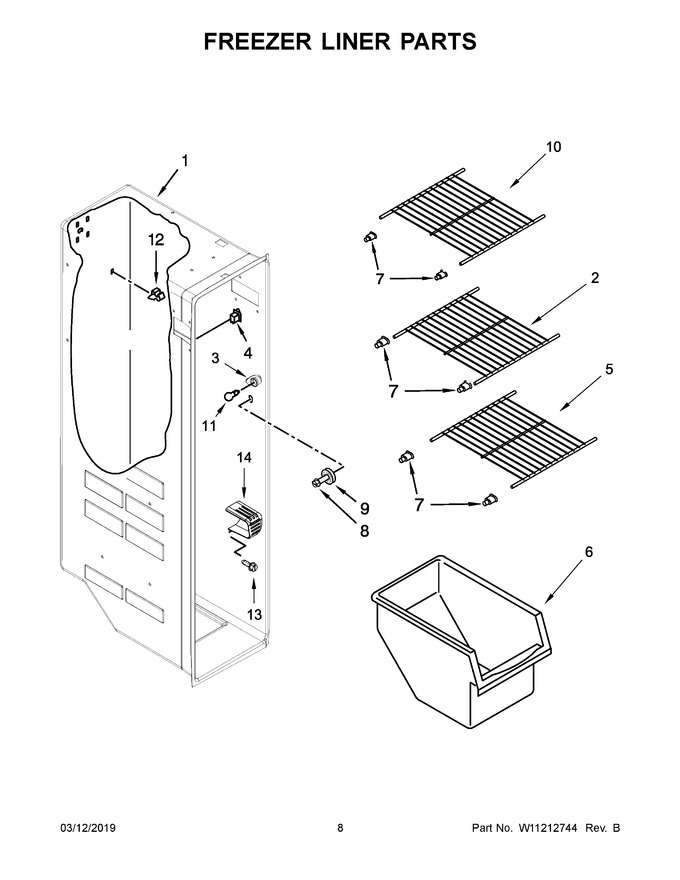

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Seviceable Part) |
|
- | |||||
| 2 | WPW10318948 | Shelf, Wire (Replaces: W10318948) |
|
$ 147.84 | |||||
| 3 | W11447232 | Socket, Light (Replaces: W10352518) |
|
Immediately | $ 13.21 | ||||
| 4 | W11457217 | Switch, Rocker Arm (freezer) (Replaces: 1115373) |
|
$ 38.18 | |||||
| 5 | WPW10318947 | Shelf, Wire (Replaces: W10318947) |
|
$ 87.44 | |||||
| 6 | W11577967 | Bin, Freezer (Replaces: 2309757) |
|
$ 91.71 | |||||
| 7 | WPW10130299 | Cup, Shelf (Replaces: W10130299) |
|
Immediately | $ 14.00 | ||||
| 8 | WP3-24004-109 | Screw (Replaces: W10191954) |
|
$ 8.05 | |||||
| 9 | W11223328 | Assembly, Stud (Replaces: 2196208) |
|
Immediately | $ 14.07 | ||||
| 10 | WPW10318961 | Shelf, Wire (Replaces: W10318961) |
|
Immediately | $ 77.67 | ||||
| 11 | W11338583 | Lamp, Led (Replaces: W10805744) |
|
Immediately | $ 102.10 | ||||
| 12 | 2215823 | Clip, Air Duct (Replaces: 2315163) |
|
$ 10.42 | |||||
| 13 | W10142289 | Screw (Replaces: 3400893) |
|
$ 9.15 | |||||
| 14 | WP2171706 | Lens, Light (Replaces: 2171706) |
|
$ 91.34 |
