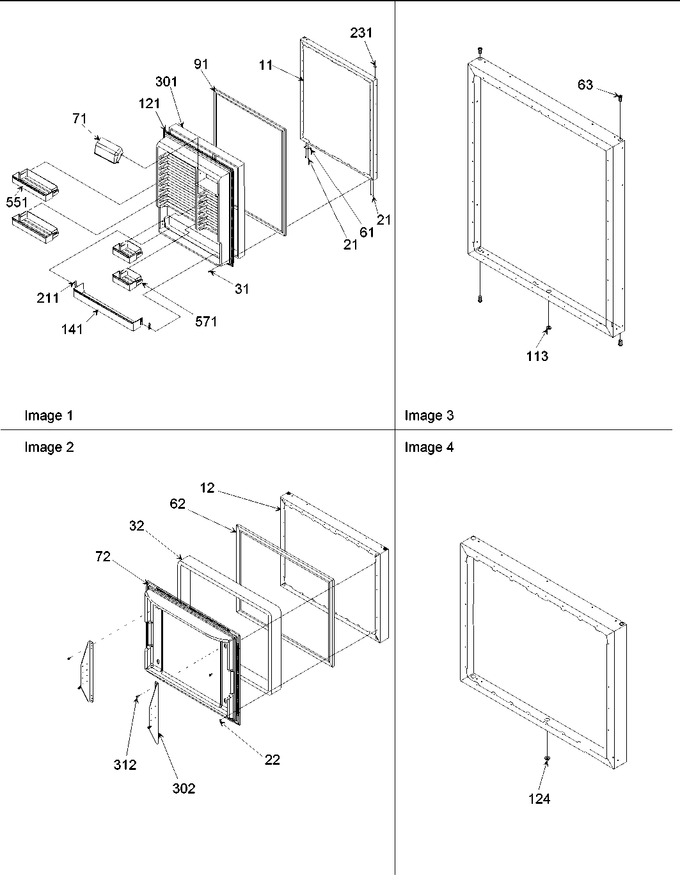

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	12258311B		Assy,ref Dr Foam(black) Btm		Appelez-nous	-
12	12565101B		Assy,fz Dr Foam(black) Btm		Appelez-nous	-
21	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 7.76
22	M0219730		Screw				$ 7.65
31	M0219730		Screw				$ 7.65
32	876370		Insulation Bott (1= 1ft)   (Replaces: B0523588)				$ 231.56
61	W11708403		Stop, Door (blk)   (Replaces: 10447109)			Immediately	$ 14.05
62	WP12550101Q		Gasket,fz Dr(black)   (Replaces: 12550101)			Immediately	$ 204.44
63	10961002		Bushing, Door (blk)		Appelez-nous	-
71	10423422		Door, Dairy		Appelez-nous	-
72	12563901		Liner,fz Door		Appelez-nous	-
91	12550108		Gasket, Ref Dr (blk)		Appelez-nous	-
113	M0310336		Plug, Button (blk)		Appelez-nous	-
121	10462502		Liner, Refr. Door		Appelez-nous	-
124	M0310336		Plug, Button (blk)		Appelez-nous	-
141	10183126		Retainer,ref Door		Appelez-nous	-
211	10202001		Clip, Retainer		Appelez-nous	-
231	10686404		Plug, Button(black)		Appelez-nous	-
301	876370		Insulation Bott (1= 1ft)   (Replaces: B0523588)				$ 231.56
302	12564201WD		Bracket,vertical-e Ct		Appelez-nous	-
312	WP489474		Screw 1``   (Replaces: M0211021)			Immediately	$ 7.97
551	10416916		Shelf, Ref Door		Appelez-nous	-
571	10502916		Bucket, Ref Door		Appelez-nous	-
