SELECT A DIAGRAM

01 - Cabinet Back & Water Valve


02 - Controls & Light Covers


03 - Door Assy


04 - Door Handles & Accessories


05 - Evaporator & Freezer Control Assy


06 - Ice Maker Assy & Parts


07 - Insulation & Roller Assy


08 - Light Switches & Drain Funnel


09 - Machine Compartment


10 - Shelving Assy

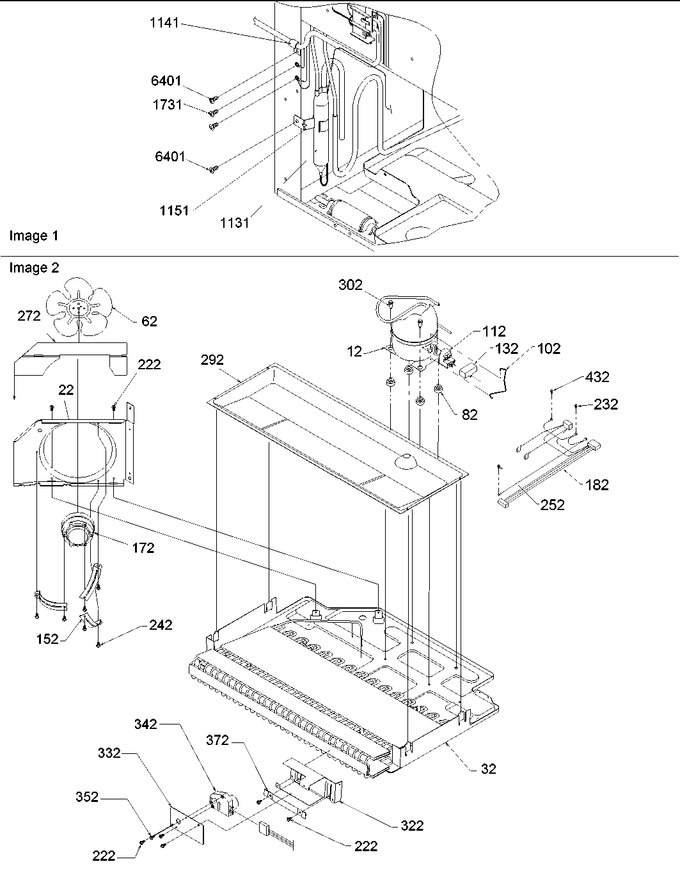

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	W10309990		Compressor, Tc Tpe1380y   (Replaces: 12049717)			Immediately	$ 632.81
22	10426911		Cond Fan Shrd-e Ct		Appelez-nous	-
32	10481220		Assy, Cond Pan		Appelez-nous	-
62	B5742604		Blade, Fan		Appelez-nous	-
82	WPW10169124		Grommet, Compressor   (Replaces: 10835901)			Immediately	$ 7.19
102	12576801		Strap, Bale		Appelez-nous	-
112	WP12555902		Overload, Relay   (Replaces: 12555902)			Immediately	$ 138.37
132	WP65889-4		Capacitor   (Replaces: C8931612)			Immediately	$ 61.14
152	10582501		Bracket, Cond. Motor		Appelez-nous	-
172	10522105		Motor, Psc				$ 121.16
182	12606001		Harness, Mc		Appelez-nous	-
222	WP90767		Screw, Sm   (Replaces: M0224416)			Immediately	$ 7.82
232	WP489399		Screw   (Replaces: M0232903)				$ 6.95
242	M0223816		Screw, Tr				$ 5.27
252	M0253916		Screw		Appelez-nous	-
272	10442702		Gasket, Cond. Fan		Appelez-nous	-
292	10427405		Pan, Drain		Appelez-nous	-
302	M0221523		Screw, Shldr		Appelez-nous	-
322	10503201		Brkt, Timer		Appelez-nous	-
332	12515801		Cover, Timer Brkt		Appelez-nous	-
342	R0131577		Timer, Defrost (8 Hr)   (Replaces: 10530703)			Immediately	$ 51.24
352	M0216705		Screw				$ 5.81
372	10542701		Washer, Brkt		Appelez-nous	-
432	12992301		Screw, Tf   (Replaces: M0231604)				$ 7.32
1131	WPB2150504		Drier   (Replaces: B2150504)				$ 130.46
1141	M0103904		Clamp, Speed		Appelez-nous	-
1151	10547001		Clip, Drier		Appelez-nous	-
1731	WP489399		Screw, Ca   (Replaces: M0239216)				$ 6.95
6401	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 7.86

    View Diagram in Separate Window       Print Part List
